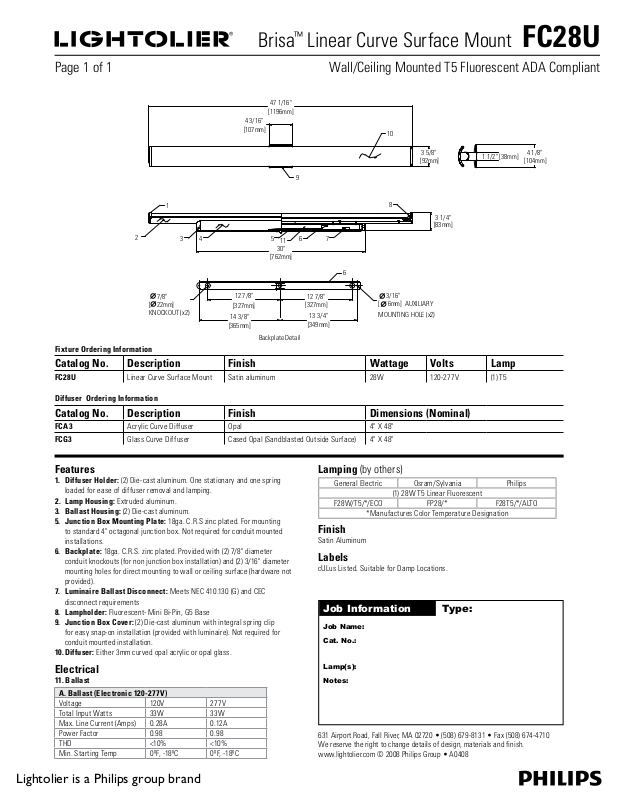

Lightolier FC28U User Manual

Brisa

3/16"
[ 6mm] AUXILIARY

7/8"
[ 22mm]
KNOCKOUT (x2)

MOUNTING HOLE (x2)

10

9

2

3

4

5

7

8

6

6

1

4 3/16"

[107mm]

47 1/16"

[1196mm]

3 5/8"

[92mm]

3 1/4"

[83mm]

30"

[762mm]

12 7/8"

[327mm]

13 3/4"

[349mm]

12 7/8"

[327mm]

14 3/8"

[365mm]

4 1/8"

[104mm]

1 1/2" [38mm]

11

Backplate Detail

™

Linear Curve Surface Mount FC28U

Page 1 of 1 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp

FC28U

Diffuser Ordering Information

Linear Curve Surface Mount Satin aluminum 28W 120-277V (1) T5

Catalog No. Description Finish Dimensions (Nominal)

FCA3

FCG3

Acrylic Curve Diffuser Opal 4" X 48"

Glass Cur ve Diffuser Cased Opal (Sandblasted Outside Surface) 4" X 48"

Features

1. Diffuser Holder: (2) Die-cast aluminum. One stationary and one spring

loaded for ease of diffuser removal and lamping.

2. Lamp Housing: Extruded aluminum.

3. Ballast Housing: (2) Die-cast aluminum.

5. Junction Box Mounting Plate: 18ga. C.R.S zinc plated. For mounting

to standard 4" octagonal junction box. Not required for conduit mounted
installations.

6. Backplate: 18ga. C.R.S. zinc plated. Provided with (2) 7/8" diameter

conduit knockouts (for non junction box installation) and (2) 3/16" diameter
mounting holes for direct mounting to wall or ceiling surface (hardware not
provided).

7. Luminaire Ballast Disconnect: Meets NEC 410.130 (G) and CEC

disconnect requirements

8. Lampholder: Fluorescent- Mini Bi-Pin, G5 Base

9. Junction Box Cover: (2) Die-cast aluminum with integral spring clip

for easy snap-on installation (provided with luminaire). Not required for
conduit mounted installation.

10. Diffuser: Either 3mm cur ved opal acrylic or opal glass.

Electrical

11. Ballast

A. Ballast (Electronic 12 0-277V)

Voltage 120V 277V
Total Input Watts 33W 33W
Max. Line Current (Amps) 0.28A 0.12A
Power Factor 0.98 0.98
THD <10% <10%
Min. Starting Temp 0ºF, -18ºC 0ºF, -18ºC

Lightolier is a Philips group brand

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 28W T5 Linear Fluorescent

F28W/T5/*/ECO FP28/* F28T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Damp Locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0408

Brisa

100

200

300

400

0°

30°

60°

90°

™

Linear Curve Surface Mount FC28U

Page 2 of 1 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

FC28U/FCA3

DECOR ATIVE LUMINAI RE CAT. # FC28U/FCA3 2 8W
SYLVANIA T-5 L AMPS. LUME N RATING = 2610 LMS.
BALL AST/ ADVANCE ICN-2 S28

Angle Alo ng 22. 5. 45 67.5 Acros s.

0 340 340 340 340 3 40
5 341 340 338 338 33 6 32
15 330 32 9 32 7 32 8 326 9 3
25 309 30 8 30 8 30 8 305 142
35 277 27 7 276 277 275 173
45 2 36 236 23 6 23 8 23 6 183
55 18 6 186 189 193 193 169
65 129 130 138 146 148 137
75 6 9 74 89 103 108 9 6
85 18 35 73 110 126 80
90 7 28 80 123 142
95 21 26 74 116 13 3 7 7
105 45 30 4 6 66 76 56
115 60 45 57 64 68 57
125 61 59 6 7 75 78 61
135 6 9 67 76 82 85 58
145 78 69 8 0 87 88 5 0
155 70 65 6 9 86 89 3 5
165 76 71 6 4 72 89 21
175 10 4 9 9 90 66 54 8
180 8 4 84 84 84 84

Cand lepower Su mmary

Outpu t

Lumens

Ceiling 80% 70% 50% 3 0% 10%
Wall 70 50 30 10 70 50 30 10 50 30 10 50 3 0 10 50 30 10 0

RCR Zonal Ca vity Met hod - Effec tive Floor Re flectan ce = 20%

0 .6 6 . 66 .6 6 .66 .62 .6 2 .62 .6 2 .56 .56 .56 .50 .5 0 .50 .45 .4 5 .45 .42
1 .59 .57 .54 .52 .56 .5 4 . 51 .49 .4 8 .46 .4 5 .43 .42 .40 .39 .37 .37 .3 4
2 .54 .49 .4 5 .42 .51 .47 .4 3 .40 .42 .39 .37 .38 . 35 .33 .34 . 32 .30 .28
3 .49 .4 3 . 39 .35 .46 .41 .37 .34 .37 . 34 .31 . 33 .31 . 28 .3 0 .28 .26 .24
4 .45 .3 8 . 33 .29 .43 . 36 . 32 .28 .33 .29 .26 .30 .27 .24 .27 .24 .2 2 .20
5 .41 .3 4 . 29 .25 .39 . 32 . 27 .24 .29 .25 .22 .26 .23 .21 .24 .21 .19 .17
6 .38 .30 .2 5 .21 .36 .29 .24 .21 . 26 .22 .19 .24 .20 .18 . 21 .18 .16 .15
7 .35 .2 7 . 22 .19 .33 . 26 .21 .18 .23 .19 .17 . 21 .18 .15 .19 .16 .14 .13
8 .32 . 24 .19 .16 .30 .23 .19 .15 .21 .17 .14 .19 .16 .13 .17 .14 .12 .11

Room C avity Rat io

9 .30 .2 2 .17 .14 .28 .21 .16 .13 .19 .15 .12 .17 .14 .12 .16 .13 .11 .09
10 .27 .20 .15 .12 .26 .19 .15 .12 .17 .14 .11 .16 . 12 .10 .14 .11 . 09 .0 8

Deter mined In Acc ordance Wi th Current I ES Published Pr ocedures

Zona l Lumens an d Percent ages

Zone L umens % L amp %Lu minaire

267 10.24 17.50

0-3 0

440 16.88 2 8.86

0-4 0

792 30.37 51.9 2

0-6 0

1105 42. 34 72. 38

0-9 0

664 25.46 43 .52

40- 90

312 11.97 20 .46

60- 90

421 16.16 27.62

90-180

1527 58.51 100.0 0

0-180

** Effic iency = 58.5%**

TESTED A CCORDING TO IE S PROCEDUR ES. TEST DISTANC E EXCEEDS FIVE
TIMES T HE GREATEST LUM INOUS OPENI NG OF LUMINAI RE.

Coef ficient s of Utiliz ation

Luminai re Input Wat ts = 34.0

Cert ified Test Repo rt no. 3649 FR
Compu ted by LSI Pr ogram **TEST- LITE**
SC= 1.3

Prep ared For:
Light olier
Fall River, MA

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0408
