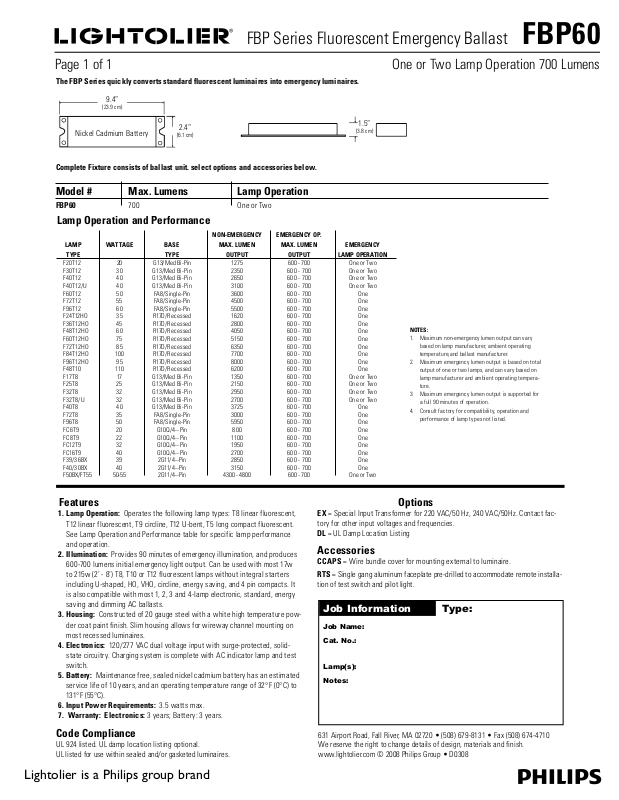

FBP Series Fluorescent Emergency Ballast FBP60

Page 1 of 1 One or Two Lamp Operation 700 Lumens

The FBP Series quickly converts standard fluorescent luminaires into emergency luminaires.

9.4”

(23.9 cm)

Nickel Cadmium Battery

2.4”

(6.1 cm)

Complete Fixture consists of ballast unit. select options and accessories below.

Model # Max. Lumens Lamp Operation

FBP60 700 One or Two

Lamp Operation and Performance

LAMP WATTAGE BASE MAX. LUMEN MAX. LUMEN EMERGENCY

TYPE TYPE OUTPUT OUTPUT LAMP OPERATION

F20T12 20 G13/Med Bi-Pin 1275 600 - 700 One or Two
F30T12 30 G13/Med Bi-Pin 2350 600 - 700 One or Two
F40T12 40 G13/Med Bi-Pin 2650 600 - 700 One or Two
F40T12/U 40 G13/Med Bi-Pin 3100 600 - 70 0 One or Two
F 60T12 50 FA8/Single-Pin 360 0 600 - 70 0 One
F 72T12 55 FA8/Single-Pin 4500 600 - 70 0 One
F 96T12 60 FA8/Single-Pin 5500 600 - 70 0 One
F24T12HO 35 R17D/Recessed 1620 60 0 - 700 One
F36T12HO 45 R17D/Recessed 2800 600 - 70 0 One
F48T12HO 60 R17D/Recessed 4050 600 - 70 0 One
F 60T12HO 75 R17D/Recessed 5150 6 00 - 700 One
F 72T12HO 85 R17D/Rece ssed 6350 60 0 - 700 One
F84T12HO 100 R17D/Recessed 770 0 600 - 700 One
F 96T12HO 95 R17D/Rece ssed 8000 60 0 - 700 One
F48T10 110 R17D/Recessed 62 00 600 - 700 One
F17T8 17 G13/Med Bi-Pin 1350 600 - 700 On e or Two
F25T8 25 G13/Med Bi-Pin 2150 600 - 700 On e or Two
F32T8 32 G13/Med Bi-Pin 2950 600 - 700 On e or Two
F32T8/U 32 G13/Med Bi- Pin 2700 600 - 700 One or Two
F40T8 40 G13/Med Bi-Pin 3725 600 - 700 One
F 72T8 35 FA8/Single-Pin 3000 600 - 700 One
F 96T8 50 FA8/Single-Pin 5950 600 - 700 One
F C6T9 20 G10Q/4--Pin 800 600 - 700 One
F C8T9 22 G10Q/4--Pin 1100 6 00 - 700 One
F C12T9 32 G10Q/4--Pin 195 0 600 - 700 On e
F C16T9 4 0 G10Q/4--Pin 2700 600 - 700 One
F39/36BX 39 2G11/4--Pin 2850 60 0 - 700 One
F40/30BX 40 2G11/4--Pin 3150 60 0 - 700 One
F50BX/FT55 50-55 2G11/4--Pin 4300 - 4800 600 - 700 One or Two

NON-EMERGENCY EMERGENCY OP.

1.5”

(3.8 cm)

NOTES:

1. Maxim um non-eme rgency lum en output can vary
base d on lamp manu facture r, ambi ent operat ing
tempe rature,an d ballast ma nufactur er.

2. Maxim um emergen cy lumen ou tput is ba sed on tot al
outp ut of one or two lamps, and can var y based o n
lamp ma nufactur er and ambie nt operat ing temper a­ture.

3. Maxim um emergen cy lumen ou tput is sup ported f or
a full 9 0 minutes o f operatio n.

4. Consul t factor y for comp atibility, op eration an d
perf ormance o f lamp ty pes not list ed.

Features

1. Lamp Operation: Operates the following lamp types: T8 linear fluorescent,

T12 linear fluorescent, T9 circline, T12 U-bent, T5 long compact fluorescent.
See Lamp Operation and Per formance table for specific lamp performance

and operation.

2. Illumination: Provides 90 minutes of emergency illumination, and produces
600-700 lumens initial emergency light output. Can be used with most 17w
to 215w (2’ - 8’) T8, T10 or T12 fluorescent lamps without integral star ters
including U-shaped, HO, VHO, circline, energy saving, and 4 pin compacts. It
is also compatible with most 1, 2, 3 and 4-lamp electronic, standard, energy

saving and dimming AC ballasts.

3. Housing: Constructed of 20 gauge steel with a white high temperature pow­der coat paint finish. Slim housing allows for wireway channel mounting on
most recessed luminaires.

4. Electronics: 120/277 VAC dual voltage input with surge-protected, solid­state circuitry. Charging system is complete with AC indicator lamp and test

switch.

5. Battery: Maintenance free, sealed nickel cadmium battery has an estimated
service life of 10 years, and an operating temperature range of 32°F (0°C) to
131°F (55°C).

6. Input Power Requirements: 3.5 watts max.

7. Warranty: Electronics: 3 years; Battery: 3 years.

Code Compliance

UL 924 listed. UL damp location listing optional.
UL listed for use within sealed and/or gasketed luminaires.

Lightolier is a Philips group brand

Options

EX = Special Input Transformer for 220 VAC/50 Hz, 240 VAC/50Hz. Contact fac-

tory for other input voltages and frequencies.

DL = UL Damp Location Listing

Accessories

CCAPS = Wire bundle cover for mounting external to luminaire.

RTS = Single gang aluminum faceplate pre-drilled to accommodate remote installa-

tion of test switch and pilot light.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2008 Philips Group • D0308
