Page 1
2 ¼"
(57 mm)
⅜"
(10 mm)
2 ¾"
(70 mm)
2 ¾"
(69 mm)

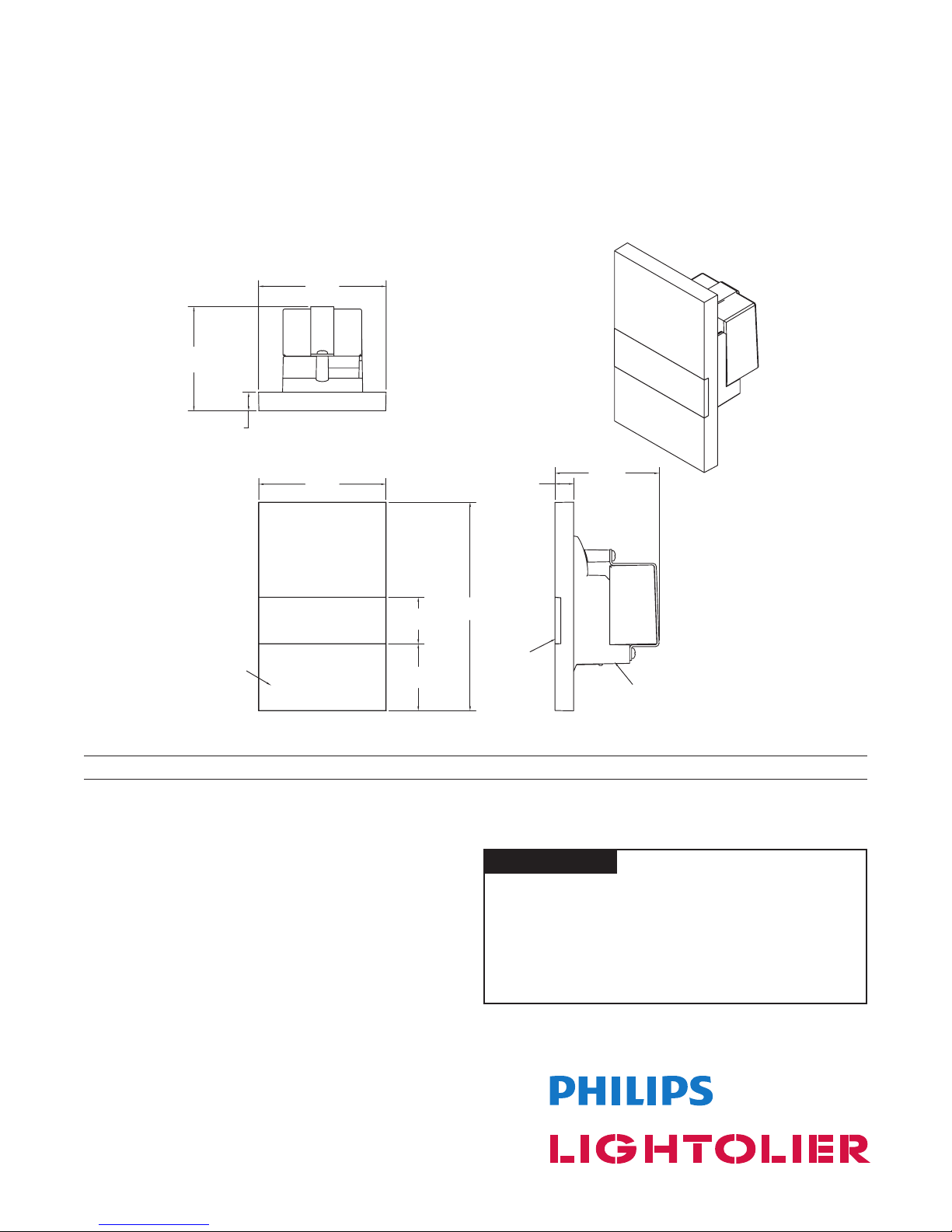

DSL01
Decorative, Linear Step LED
Page 1 of 2
2 ¼"
⅜"
(10 mm)
(57 mm)
4 ½"
(114 mm)
1"
(26 mm)
2
3
Catalog Number Finish Lamp Wattage Color Temp Voltage
DS L 01WLW White LED 4W 3000K 120 -24 0V
DSL01WLSA Satin Aluminum LED 4W 3000K 120 -24 0V
1 716"
(37 mm)
1
Job Information Type:
Job Name:
Cat. No.:
Notes:
Page 2
2 ¼"
(57 mm)
⅜"
(10 mm)
2 ¾"
(70 mm)
2 ¾"
(69 mm)
DSL01
Decorative, Linear Step LED
Page 2 of 2
2 ¼"
⅜"
(10 mm)
(57 mm)
1"
(26 mm)
3
1 716"
(37 mm)
Features
1. Heat Sink/Driver Housing: Die-cast aluminum.
2. Lens: Injection molded polycarbonate clear, developed
for optimum opticaloutput.
3. Face Plate: Die-cast aluminum.
4. Switch Box Mounting Plate: 18ga. C.R.S. zinc plated,
for mounting to a 31/2” deep switch box. (Not shown)
Electrical
LED: (1) 4W 3000K white LED. Average expected life,
under normal operating conditions is 50,000 hours with
lumen maintenance of 70% of original light output.
Driver:
Class 2 power supply.
Voltage: 120 V
4 ½"
(114 mm)
2
1
Electrical (continued)
Output Wattage: 5 W
Input Current (max.): 100 mA
Frequency: 50/60 Hz
Output Voltage (VDC): 12 V
Constant Current: 500 mA
Finish
Satin aluminum with protective clearcoat.
Matte white powder coat.
Labels
cULus Listed. Suitable for wet locations.
Wall mount only.
Philips Lightolier
e: [email protected]
t: (508) 679-8131
w: www.lightolier.com
DSL01 May 31, 2011
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2011. All rights reserved.
