ProSpec

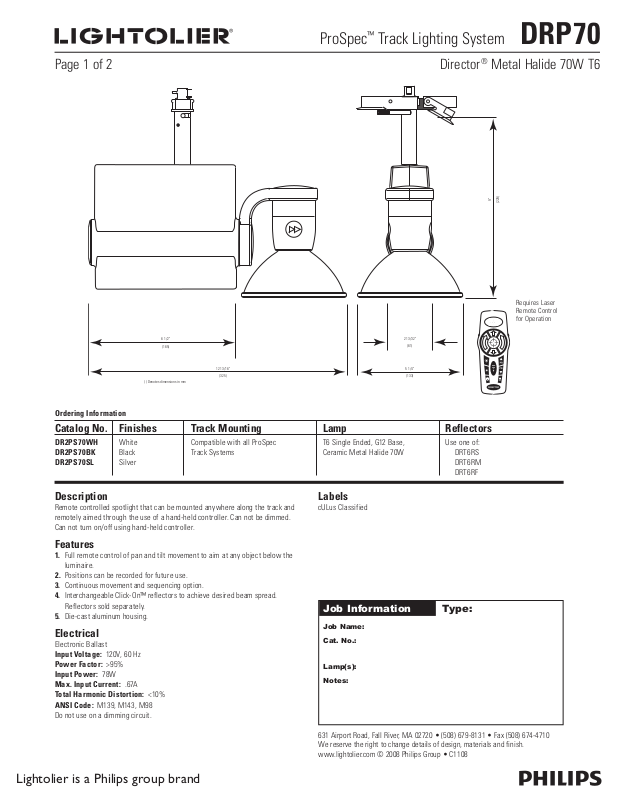

Track Lighting System DRP70
Page 1 of 2 Director® Metal Halide 70W T6
9"
(229)
Requires Laser Remote Control for Operation
6 1/2"
(165)
( ) Denotes dimensions in mm
12 13/16"
(325)
2 13/32"
(61)
5 1/4"
(133)
Ordering Information
Catalog No. Finishes Track Mounting Lamp Reflectors
DR2PS70WH White Compatible with all ProSpec T6 Single Ended, G12 Base, Use one of: DR2PS70BK Black Track Systems Ceramic Metal Halide 70W DRT6RS DR2PS70SL Silver DRT6RM
DRT6RF
Description
Remote controlled spotlight that can be mounted anywhere along the track and
Labels
cULus Classified remotely aimed through the use of a hand-held controller. Can not be dimmed. Can not turn on/off using hand-held controller.
Features
1. Full remote control of pan and tilt movement to aim at any object below the
luminaire.
2. Positions can be recorded for future use.
3. Continuous movement and sequencing option.
4. Interchangeable Click-On™ reflectors to achieve desired beam spread.
Reflectors sold separately.
5. Die-cast aluminum housing.
Electrical
Electronic Ballast
Input Voltage: 120V, 60 Hz Power Factor: >95% Input Power: 78W Max. Input Current: .67A Total Harmonic Distortion: <10% ANSI Code: M139, M143, M98
Do not use on a dimming circuit.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s): Notes:
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C1108
ProSpec
Track Lighting System DRP70
Page 2 of 2 Director® Metal Halide 70W T6
AIMING ANGLE
L Beam Length W Beam Width C Distance to center beam
L and W are the outer points where the candle power
drops to 50% of the maximum. FC are the initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for availability and performance.
Lamp Information:
70W T6 Clear Ceramic Metal Halide Initial Lumens: 6600 CRI: 81 Rated Avg. Life: 9,000 to 15,000 hrs.
AIMING ANGLE:
Beam Spread (To 50% CBCP) CBCP
DRT6RS Spot
Reflector
12° x 12°
Beam Spread (To 50% CBCP) CBCP
DRT6RM Med
Flood Reflector
24° x 24°
D Distance A Aiming Angle FC Footcandles
0˚ Horizontal Aiming 30˚ Horizontal Aiming 30˚ Vertical Aiming 45˚ Vertical Aiming
D FC L W D C FC L W D C FC L W D C FC L W
8' 363 1.7' 1.7' 8' 4.6' 236 2.3' 1.9' 3' 5.2' 323 2.6' 1.3' 5' 5.0' 329 2.1' 1.5'
23,234
12' 161 2.5' 2.5' 12' 6.9' 105 3.4' 2.9' 4' 6.9' 182 3.5' 1.7' 6' 6.0' 228 2.6' 1.8' 16' 91 3.4' 3.4' 16' 9.2' 59 4.5' 3.9' 5' 8.7' 116 4.3' 2.1' 7' 7.0' 168 3.0' 2.1' 20' 58 4.2' 4.2' 20' 11.5' 38 5.6' 4.9' 6' 10.4' 81 5.2' 2.5' 8' 8.0' 128 3.4' 2.4'
D FC L W D C FC L W D C FC L W D C FC L W
8' 265 3.4' 3.4' 8' 4.6' 172 4.6' 3.9' 3' 5.2' 235 5.9' 2.6' 4' 4.0' 374 3.6' 2.4'
16,934
10' 169 4.3' 4.3' 10' 5.8' 110 5.8' 4.9' 4' 6.9' 132 7.9' 3.4' 5' 5.0' 239 4.5' 3.0' 12' 118 5.1' 5.1' 12' 6.9' 76 6.9' 5.9' 5' 8.7' 85 9.8' 4.3' 6' 6.0' 166 5.3' 3.6' 14' 86 6.0' 6.0' 14' 8.1' 56 8.1' 6.9' 6' 10.4' 59 11.8' 5.1' 7' 7.0' 122 6.2' 4.2'
30˚ Horizontal 30˚ Vertical
45˚ Vertical
Beam Spread (To 50% CBCP) CBCP
DRT6RF Flood
Reflector
38° x 38°
29,483
D FC L W D C FC L W D C FC L W D C FC L W
8' 461 5.2' 5.2' 8' 4.6' 299 7.2' 6.0' 3' 5.2' 409 11.4' 3.9' 5' 5.0' 417 7.3' 4.6' 10' 295 6.5' 6.5' 10' 5.8' 191 9.0' 7.5' 4' 6.9' 230 15.2' 5.2' 6' 6.0' 290 8.7' 5.5' 12' 205 7.8' 7.8' 12' 6.9' 133 10.8' 9.0' 5' 8.7' 147 19.0' 6.5' 7' 7.0' 213 10.2' 6.4' 14' 150 9.1' 9.1' 14' 8.1' 98 12.6' 10.5' 6' 10.4' 102 22.8' 7.8' 8' 8.0' 163 11.6' 7.4'
Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C1108
