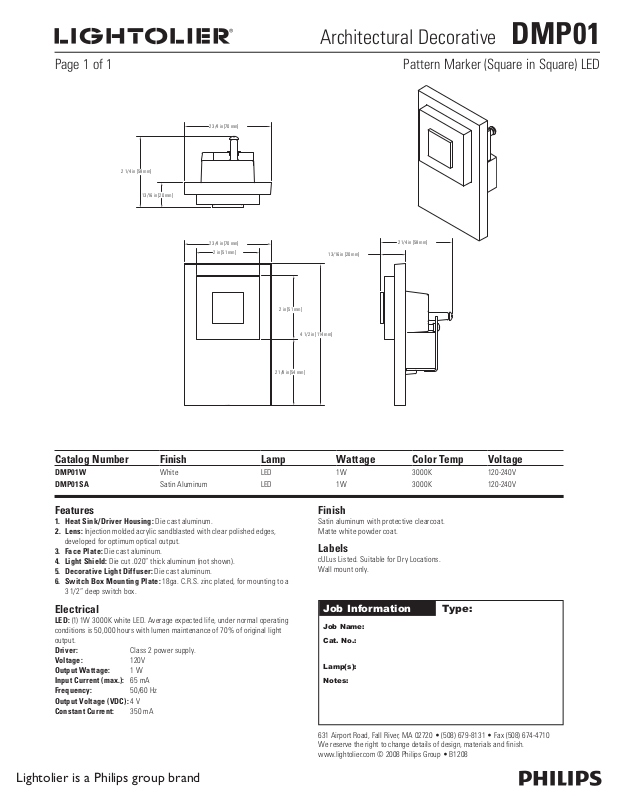

Architectural Decorative  DMP01































































































































































Page 1 of 1































Pattern Marker (Square in Square) LED

2 3/4 in [70 mm]

2 1/4 in [58 mm]

13/16 in [20 mm]

2 3/4 in [70 mm]

2 1/4 in [58 mm]



2 in [51 mm]

13/16 in [20 mm]



2 in [51 mm]

4 1/2 in [114 mm]

2 1/8 in [54 mm]

Catalog Number

Finish

Lamp

Wattage

Color Temp

Voltage

DMP01W

White

LED

1W

3000K

120-240V

DMP01SA

Satin Aluminum

LED

1W

3000K

120-240V













Features

1.Heat Sink/Driver Housing: Die cast aluminum.

2.Lens: Injection molded acrylic sandblasted with clear polished edges, developed for optimum optical output.

3.Face Plate: Die cast aluminum.

4.Light Shield: Die cut .020” thick aluminum (not shown).

5.Decorative Light Diffuser: Die cast aluminum.

6.Switch Box Mounting Plate: 18ga. C.R.S. zinc plated, for mounting to a 3 1/2” deep switch box.

Finish

Satin aluminum with protective clearcoat.

Matte white powder coat.

Labels

cULus Listed. Suitable for Dry Locations. Wall mount only.

Electrical

LED: (1) 1W 3000K white LED. Average expected life, under normal operating conditions is 50,000 hours with lumen maintenance of 70% of original light

output.



Driver:

Class 2 power supply.

Voltage:

120V

Output Wattage:

1 W

Input Current (max.):

65 mA

Frequency:

50/60 Hz

Output Voltage (VDC): 4 V

Constant Current:

350 mA

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:
