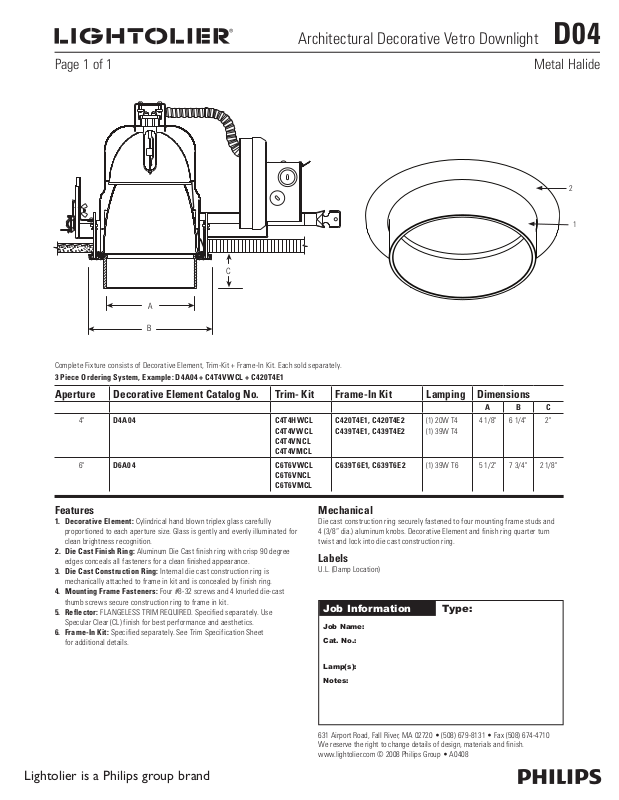

Architectural Decorative Vetro Downlight D04

Page 1 of 1 Metal Halide

2

1

C

A

B

Complete Fixture consists of Decorative Element, Trim-Kit + Frame-In Kit. Each sold separately.

3 Piece Ordering System, Example: D4A04 + C4T4VWCL + C420T4E1

Aperture Decorative Element Catalog No. Trim- Kit Frame-In Kit Lamping Dimensions

A B C

4"

6"

D4A04 C4T4HWCL

C4T4VWCL
C4T4VNCL
C4T4VMCL

D6A04 C6T6VWCL

C6T6VNCL
C6T6VMCL

Features

1. Decorative Element: Cylindrical hand blown triplex glass carefully

proportioned to each aperture size. Glass is gently and evenly illuminated for
clean brightness recognition.

2. Die Cast Finish Ring: Aluminum Die Cast finish ring with crisp 90 degree

edges conceals all fasteners for a clean finished appearance.

3. Die Cast Construction Ring: Internal die cast construction ring is
mechanically attached to frame in kit and is concealed by finish ring.

4. Mounting Frame Fasteners: Four #8-32 screws and 4 knurled die-cast
thumb screws secure construction ring to frame in kit.

5. Reflector: FLANGELESS TRIM REQUIRED. Specified separately. Use
Specular Clear (CL) finish for best performance and aesthetics.

6. Frame-In Kit: Specified separately. See Trim Specification Sheet

for additional details.

C420T4E1, C420T4E2
C439T4E1, C439T4E2

C639T6E1, C6 39T6E2

(1) 20W T4
(1) 39W T4

(1) 39W T6 5 1/2" 7 3/4" 2 1/8"

4 1/8" 6 1/4" 2"

Mechanical

Die cast construction ring securely fastened to four mounting frame studs and
4 (3/8” dia.) aluminum knobs. Decorative Element and finish ring quar ter turn
twist and lock into die cast construction ring.

Labels

U.L. (Damp Location)

Job Information Type:

Job Name:

Cat. No.:

Lightolier is a Philips group brand

Lamp(s):
Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2008 Philips Group • A0408
