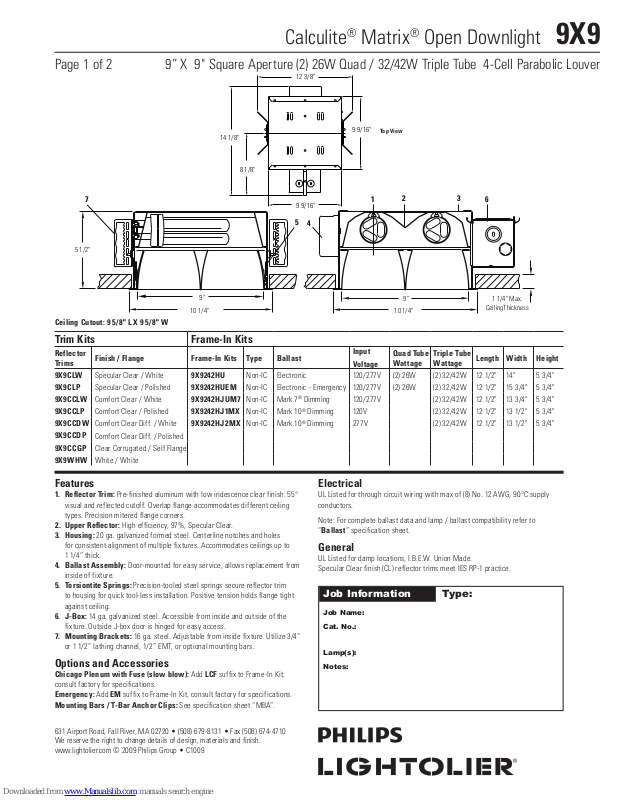

Calculite® Matrix

14 1/8"

8 1/8"

12 3/8"

9 9/16"

Open Downlight 9X9

Page 1 of 2 9” X 9" Square Aperture (2) 26W Quad / 32/42W Triple Tube 4-Cell Parabolic Louver

Top View

5 1/2"

10 1/4"

Ceiling Cutout: 9 5/8 " L X 9 5/ 8" W

10 1/4"

1 1/4" Max.

CeilingThickness

Trim Kits Frame-In Kits

Reflector Trims

9X9CLW 9X9CLP 9X9CCLW 9X9CCLP 9X9CCDW 9X9CCDP 9X9CCGP 9X9WHW

Features

1. Reﬂector Trim: Pre-finished aluminum with low iridescence clear finish. 55°

2. Upper Reﬂector: High efficiency, 97%, Specular Clear.

3. Housing: 20 ga. galvanized formed steel. Centerline notches and holes

4. Ballast Assem bly: Door-mounted for easy service, allows replacement from

5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim

6. J-Box: 14 ga. galvanized steel. Accessible from inside and outside of the

7. Mounting Brackets: 16 ga. steel. Adjustable from inside fixture. Utilize 3/4”

Options and Accessories

Chicago Plenum with Fuse (slow blow): Add LCF suffix to Frame-In Kit,

consult factory for specifications.

Emergency: Add EM suffix to Frame-In Kit, consult factory for specifications. Mounting Bars / T-Bar Anchor Clips: See specification sheet “MBA”.

Finish / Fl ange Frame-In Kit s Type Ballast

Specular Clear / White Specular Clear / Polished

Comfort Clear / White

Comfort Clear / Polished

Comfort Clear Diff. / White

Comfort Clear Diff. / Polished

Clear Corrugated / Self Flange

White / White

visual and reflected cutoff. Overlap flange accommodates different ceiling types. Precision mitered flange corners.

for consistent alignment of multiple fixtures. Accommodates ceilings up to 1 1/4” thick.

inside of fixture.

to housing for quick tool-less installation. Positive tension holds flange tight against ceiling.

fixture. Outside J-box door is hinged for easy access.

or 1 1/2” lathing channel, 1/2” EMT, or optional mounting bars.

9X9242HU 9X9242HUEM 9X9242HJUM7 9X9242HJ1MX 9X9242HJ2MX

Non-IC Electronic 120/277V (2) 26W (2) 32/42W 12 1/2" 14" 5 3/4" Non-IC Electronic - Emergency 120/277V (2) 26W (2) 32/42W 12 1/2" 15 3/4" 5 3/4"

Non-IC Mark 7® Dimming 120/277V (2) 32/42W 12 1/2" 13 3/4" 5 3/4"

Non-IC Mark 10® Dimming 120V (2) 32/42W 12 1/2" 13 1/2" 5 3/4"

Non-IC Mark 10® Dimming 277V (2) 32/42W 12 1/2" 13 1/2" 5 3/4"

Electrical

UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90°C supply conductors.

Note: For complete ballast data and lamp / ballast compatibility refer to “Ballast” specification sheet.

General

UL Listed for damp locations, I.B.E.W. Union Made. Specular Clear finish (CL) reflector trims meet IES RP-1 practice.

Input

Voltage

Quad Tube Wattage

Triple Tube Wattage

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Length Width Height

Calculite® Matrix

Open Downlight 9X9

Page 2 of 2 9” X 9" Square Aperture (2) 26W Quad / 32/42W Triple Tube 4-Cell Parabolic Louver

26W Quad Tube, Specular Clear Reflector Trim

Two Sylvania lamps, 1800 lumens each

Test Report 1775FR Apr. 8, 2002

Angle Along 22.5 45 67.5 Across Lumens

0 806 806 806 806 806 5 830 860 877 880 878 83 10 887 918 930 934 930 15 918 844 980 946 948 269 20 935 975 977 1002 959 25 915 974 1009 988 908 440 30 879 943 949 844 726 35 763 888 851 684 611 482 40 576 761 702 554 447 45 404 549 501 453 380 365 50 244 278 326 338 320 55 41 60 121 82 49 105 60 5 6 20 7 6 65 2 2 3 1 3 4 70 1 1 1 1 1 75 0 0 0 0 0 0 80 0 0 0 0 0 85 0 0 0 0 0 0 90 0 0 0 0 0

Zone Lumens % Lamp % Luminaire 0-30 791 21.99 45.27 0-40 1274 35.39 72.86 0-60 1744 48.46 99.76 0-90 1748 48.57 100.00

Efﬁciency = 48.6% Spacing Criterion: Along = 1.4 Across = 1.3

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0 1 .54 .52 .51 .53 .51 .50 .51 .50 .49 .49 .48 .47 .47 .46 .46 .45 2 .50 .48 .46 .49 .47 .45 .47 .46 .44 .46 .45 .43 .44 .43 .43 .42 3 .46 .43 .41 .45 .43 .41 .44 .42 .40 .43 .41 .40 .42 .40 .39 .38 4 .42 .40 .37 .42 .39 .37 .41 .39 .37 .40 .28 .36 .39 .37 .36 .35 5 .39 .36 .34 .90 .36 .34 .38 .35 .33 .37 .35 .33 .36 .34 .33 .32 6 .36 .33 .31 .36 .33 .31 .35 .32 .30 .34 .32 .30 .34 .31 .30 .29 7 .33 .30 .28 .33 .30 .27 .32 .29 .27 .31 .29 .27 .31 .29 .27 .26 8 .30 .27 .25 .30 .27 .25 .29 .27 .25 .29 .26 .24 .28 .26 .24 .24

ROOM CAVITY RATIO

9 .28 .24 .22 .27 .24 .22 .27 .24 .22 .27 .24 .22 .26 .24 .22 .21 10 .25 .22 .20 .25 .22 .20 .25 .22 .20 .24 .22 .20 .24 .21 .20 .21

% Effective Ceiling Cavity Reﬂectance

20% Floor Cavity Reﬂectance

CANDLEPOWER SUMMARY

ZONAL LUMENS AND PERCENTAGES

42W Quad Tube, Specular Clear Reflector Trim

Two Philips lamps, 3200 lumens each

Test Report 1777FR Apr. 8, 2002

Angle Along 22.5 45 67.5 Across Lumens 0 1502 1502 1502 1502 1502 5 1567 1582 1606 1625 1623 155 10 1706 1741 1778 1803 1803 15 1826 1871 1931 1829 1770 522 20 1920 1970 1915 1824 1732 25 1943 2040 1915 1969 1964 902 30 1923 2077 1948 2001 1797 35 1706 1920 2016 1602 1353 1102 40 1346 1667 1809 1352 1089 45 1001 1258 1405 1085 830 890 50 635 724 819 776 742 55 114 164 306 262 125 269 60 13 13 51 18 14 65 6 5 5 6 6 9 70 3 2 1 2 3 75 1 1 0 1 1 1 80 0 0 0 0 0 85 0 0 0 0 0 0 90 0 0 0 0 0

ZONAL LUMENS AND PERCENTAGES Zone Lumens % Lamp % Luminaire 0-30 1578 24.66 41.01 0-40 2680 41.88 69.63 0-60 3839 59.99 99.74 0-90 3849 60.15 100.00

CANDLEPOWER SUMMARY

32W Qu a d Tube, Specular Clear Reflector Trim

Two Philips lamps, 2400 lumens each

Test Report 1776FR Apr. 8, 2002

Angle Along 22.5 45 67.5 Across Lumens

0 1119 1119 1119 1119 1119 5 1182 1192 1188 1181 1183 114 10 1281 1297 1294 1309 1305 15 1391 1391 1394 1330 1284 386 20 1533 1536 1424 1322 1276 25 1664 1710 1479 1414 1400 701 30 1644 1774 1618 1426 1263 35 1441 1660 1709 1199 980 895 40 1149 1440 1491 1061 774 45 830 1056 1091 846 605 712 50 497 589 602 630 529 55 84 132 229 187 96 207 60 10 13 39 12 10 65 5 5 4 4 5 7 70 2 1 1 1 2 75 0 0 0 0 1 0 80 1 0 0 0 0 85 0 0 0 0 0 0 90 0 0 0 0 0

Zone Lumens % Lamp % Luminaire 0-30 1201 25.02 39.75 0-40 2095 43.66 69.35 0-60 3014 62.80 99.75 0-90 3021 62.95 100.00

Efﬁciency = 63.0% Spacing Criterion: Along = 1.6 Across = 1.4

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0 1 .69 .67 .66 .68 .66 .65 .65 .64 .63 .63 .62 .61 .61 .60 .59 .58 2 .64 .61 .59 .63 .60 .58 .61 .59 .57 .59 .57 .56 .57 .56 .54 .53 3 .59 .55 .52 .58 .55 .52 .56 .53 .51 .55 .52 .50 .53 .51 .50 .49 4 .54 .50 .47 .53 .50 .47 .52 .49 .46 .51 .48 .46 .49 .47 .45 .44 5 .50 .45 .42 .49 .45 .42 .48 .44 .42 .47 .44 .41 .46 .43 .41 .40 6 .45 .41 .38 .45 .41 .38 .44 .40 .38 .43 .40 .37 .42 .39 .37 .36 7 .41 .37 .34 .41 .37 .33 .40 .36 .33 .39 .36 .33 .38 .35 .33 .32 8 .37 .33 .30 .37 .33 .30 .36 .32 .30 .36 .32 .29 .35 .32 .29 .28

ROOM CAVITY RATIO

9 .34 .29 .26 .34 .29 .26 .33 .29 .26 .32 .29 .26 .32 .28 .26 .25 10 .31 .26 .23 .30 .26 .23 .30 .26 .23 .29 .26 .23 .29 .25 .23 .22

% Effective Ceiling Cavity Reﬂectance

20% Floor Cavity Reﬂectance

Efﬁciency = 60.1% Spacing Criterion: Along = 1.5 Across = 1.4

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0 1 .66 .64 .63 .65 .63 .62 .62 .61 .60 .60 .59 .58 .58 .57 .57 .56 2 .61 .59 .56 .60 .58 .56 .58 .56 .54 .56 .55 .53 .55 .53 .52 .51 3 .56 .53 .50 .55 .52 .50 .54 .51 .49 .52 .50 .48 .51 .49 .48 .47 4 .52 .48 .45 .51 .48 .45 .50 .47 .45 .49 .46 .44 .47 .45 .43 .42 5 .48 .44 .41 .47 .43 .41 .46 .43 .40 .45 .42 .40 .44 .41 .39 .38 6 .44 .40 .37 .43 .39 .36 .42 .39 .36 .41 .38 .36 .40 .38 .36 .35 7 .40 .35 .33 .39 .35 .32 .38 .35 .32 .38 .34 .32 .37 .34 .32 .31 8 .36 .32 .29 .36 .32 .29 .35 .31 .29 .34 .31 .29 .34 .31 .28 .27

ROOM CAVITY RATIO

9 .33 .29 .26 .32 .28 .26 .32 .28 .26 .31 .28 .25 .31 .28 .25 .24 10 .30 .26 .23 .29 .26 .23 .29 .25 .23 .28 .25 .23 .28 .25 .22 .22

Based on specular clear (CL) finish. To estimate other finishes, multiply candelas and CU values by 0.95 for CCL, by 0.90 for CCD.

% Effective Ceiling Cavity Reﬂectance

20% Floor Cavity Reﬂectance

CANDLEPOWER SUMMARY

ZONAL LUMENS AND PERCENTAGES
