Lightolier Calculite C6T6A-MHT6RNF Specification

Calculite

®

HID Adjustable Accent C6T6A-MHT6RNF

Page 1 of 2 6" Aperture, T6, Ceramic Metal Halide, Narrow Flood

20" to 30"

10-5/8"

15"

19-5/8"

22-1/8" (Magnetic)

20-1/4" (Electronic)

19-1/8"

T

op View

7" (176 mm) Dia.

5 3/4" (146 mm) Dia.

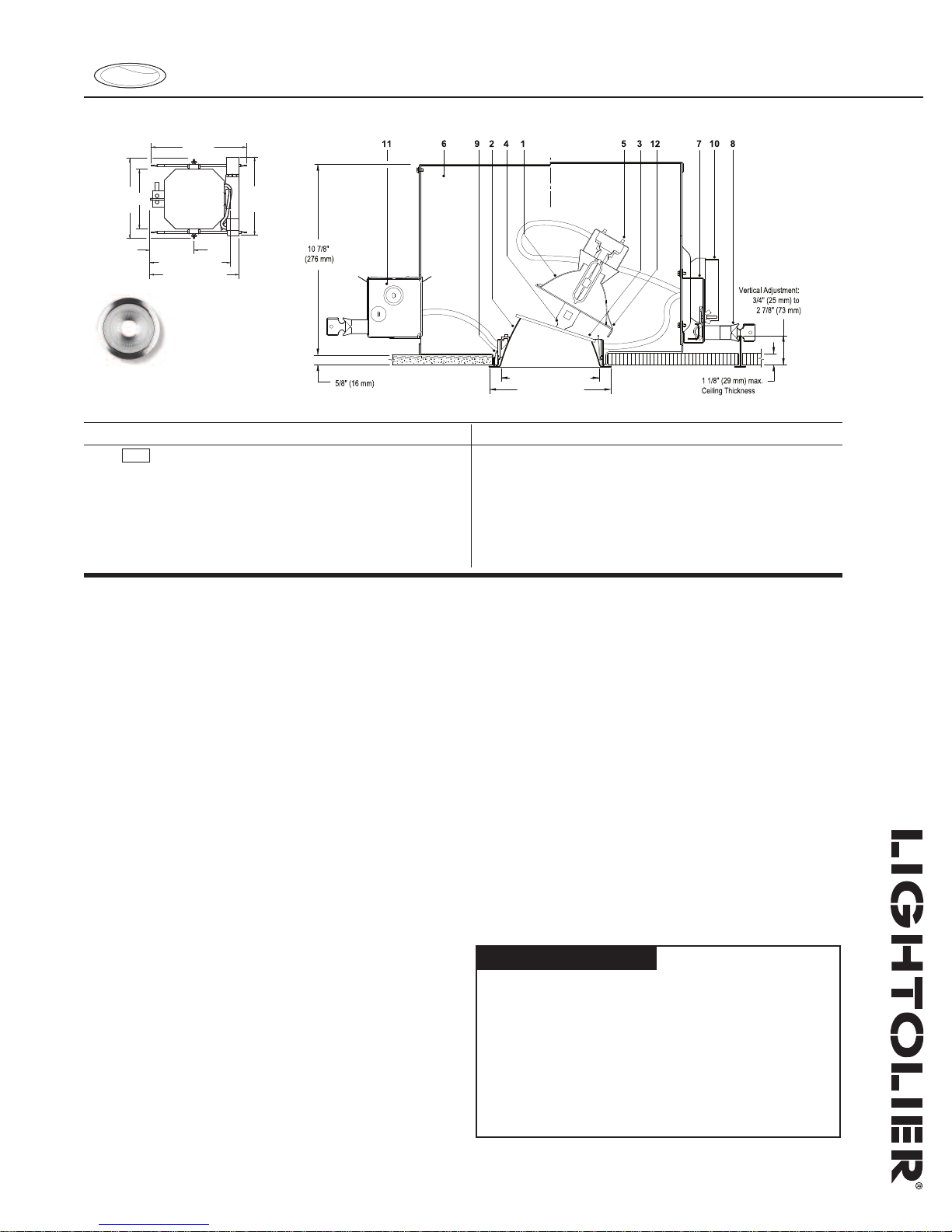

Features

1. Narrow Flood Upper Reflector: Specular split faceted aluminum;

provides 25° beam. Interchangeable with 12° Spot (MHT6RS) and 40° Flood
(MHT6RF); see spec sheets C6T6A-MHT6RS and C6T6A-MHT6RF.

2. Trim Kit: Low brightness aperture cone; anodized aluminum, self-flanged in

painted white or aperture-matching polished flange. Consult factory for other
finishes.

3. Lamp Shield: High-temperature glass as required by code; captive during

re-lamping.

4. Trim Kit Adjustment Mechanism: Provides 40° vertical tilt, 360° horizon-

tal rotation; lockable. EZ-Aim Helical Drive System provides fast and accu­rate hot aiming with Philips screwdriver.

5. Socket Housing: Galvanized steel, pre-wired with G12 pulse rated socket.

Snaps onto yoke for secure attachment without tools; unitized construction
assures proper alignment of lamp to optics for consistent optical performance.

6. Frame Housing: Steel, 0.029" (22-Ga.), matte black finish. Removable cover

for top re-lamping.

7. Frame Vertical Adjustment Mechanism: Accommodates mounting to

virtually any ceiling system using pre-installed mounting bars, or 1/2" EMT
tubing (by others). Single locking feature secures all adjustments. Alignment
holes and markings allow fixture to be pre-set prior to installation. Final
adjustment can be made from below from inside fixture.

8. Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping

bars extend to 30" long and lock securely into position. Built-in locking tabs
provide positive attachment to common T-bar systems. Self-centering feature
simplifies installation in 24" O.C. grid systems. Attaches to steel or wood
joists without accessories.

9. Retention Springs: Rust resistant springs secure trim for quick, tool-less

installation.

10. Ballast / Cover Assembly: Accessible from below and removable without

tools for inspection and ballast replacement .

11. Junction Box: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG,

90°C through branch circuit conductors. Allows inspection from below.

12. Accessory Holder: Sold separately catalog # CAH6; die-formed steel, matte

black finish, slide-in installation. Accepts up to two 4 3/4" dia. media.

13. Thermal Protector: (Not Shown) Meets NEC and UL requirements. Do not

install insulation above nor within 3" (76mm) of any part of the luminaire.

Electrical

Electronic Ballast: 120 or 277V, 50/60 Hz., encased, high power factor, T.H.D

<15%, thermally and transient protected, RMI/RFI complies with FCC Part 18 on­consumer equipment, shut-down circuit at end of lamp life, sound rating “A”, ­5°F (-20°F for 150W) minimum starting temperature, Type 1 outdoor rating.

Ballast ANSI Code Voltage Max. Amps Input Watts

39W MH M130 120/277 0.39/0.17 44
70W MH M139 120/277 0.67/0.28 78
150W MH M142 120/277 1.40/0.60 167

Options and Accessories

Chicago Plenum: Consult Factory
Fuse (magnetic ballast): Add suffix F1 or F2 to Frame-In Kit (F1=120V, F2=277V)

Labels

UL (Suitable for Damp Locations), CSA, I.B.E.W.
For 150W, install fixtures with minimum spacing between:

1. Center-to center of adjacent luminaries: 2 feet.

2. Top of luminaire to overhead building member: 1/2 inch.

3. Luminaire center to side building member: 1 foot.

C6A39T6E1 Electronic 120V 39W T6 Ceramic MH
C6A39T6E2 Electronic 277V 39W T6 Ceramic MH
C6A70T6E1 Electronic 120V 70W T6 Ceramic MH
C6A70T6E2 Electronic 277V 70W T6 Ceramic MH
C6A15T6E1 Electronic 120V 150W T6 Ceramic MH
C6A15T6E2 Electronic 277V 150W T6 Ceramic MH

Narrow Flood
Upper Reflector

Ceiling Cutout: 6 9/16” (167mm) Dia.

For Complete Fixture Order: Trim Kit + Narrow Flood Upper Reflector (MHT6RNF) + Frame-In Kit. Each Sold Separately.

Trim Kit + Narrow Flood Upper Reflector Frame-In Kit Lamp

C6T6A + MHT6RNF (Narrow Flood Upper Reflector)

CLW Specular Clear, White Painted Flange
CLP Specular Clear, Matching Flange

CCDW Comfort Clear Diffuse, White Painted Flange
CCDP Comfort Clear Diffuse, Matching Flange
CCZW Champagne Bronze, White Painted Flange
CCZP Champagne Bronze, Matching Flange

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • B0406

Calculite

®

HID Adjustable Accent C6T6A-MHT6RNF

Page 2 of 2 6" Aperture, T6, Ceramic Metal Halide, Narrow Flood

5,000

2,500

7

,500

1

0,000

10,000

5,000

15,000

20,000

7,500

15,000

22,500

30,000

30°

60°

30°

60°

30°

60°

30° Aiming Angle

Horizontal Surface

DC FC LW

8' 4.6' 319 4.0' 3.4'
10' 5.8' 204 5.0' 4.3'
12' 6.9' 142 6.0' 5.1'
15' 8.7' 91 7.5' 6.4'
20' 11.5' 51 10.0' 8.6'

30° Aiming Angle

Vertical Surface

DC FC LW

3' 5.2' 437 5.0' 2.2'
4' 6.9' 246 6.6' 3.0'
6' 10.4' 109 9.9' 4.4'
8' 13.9' 61 13.2' 5.9'
12' 20.8' 27 19.8' 8.9'

CANDLEPOWER DISTRIBUTION

3

0° Aiming Angle

V

ertical Surface

D

C FC LW

2' 3.5' 327 2.7' 1.3'
3' 5.2' 145 4.1' 1.9'
4' 6.9' 82 5.5' 2.5'
6' 10.4' 36 8.2' 3.8'
8

' 13.9' 20 11.0' 5.1'

A

NGLE WALL
0 572
5

608
10 737
15 1373
2

0 3477
25 7417
3

0 10451
3

5 9231
4

0 5593
4

5 1881
50 945
5

5 562
60 212
6

5 46
7

0 2
75 0
80 0
85 0
90 0

30° Aiming Angle

Horizontal Surface

DC FC LW

8' 4.6' 198 3.6' 3.1'
10' 5.8' 127 4.5' 3.9'
12' 6.9' 88 5.4' 4.6'
15' 8.7' 56 6.8' 5.8'
20' 11.5' 32 9.0' 7.7'

30° Aiming Angle

Vertical Surface

DC FC LW

3' 5.2' 271 4.4' 2.0'
4' 6.9' 152 5.8' 2.7'
6' 10.4' 68 8.8' 4.0'
8' 13.9' 38 11.7' 5.4'
12' 20.8' 17 17.5' 8.0'

AIMED 30º. TOWARD WALL

LAMP: 150W T6 MH, PHILIPS
LUMEN RATING: 14000 LMS.

CBCP: 31443
Beam Angle: 21
AROMAT 150W ELECTRONIC BALLAST

DATE: MAR 10, 2004
CERTIFIED TEST REPORT NO. 2532FR

COMPUTED BY LSI PROGRAM
**TEST-LITE**

AIMED 30º. TOWARD WALL

LAMP: 70W T6 MH, PHILIPS
LUMEN RATING: 6600 LMS.

CBCP: 19503
Beam Angle: 19
AROMAT 150W ELECTRONIC BALLAST

DATE: MAR 13, 2004
CERTIFIED TEST REPORT NO. 2526FR

COMPUTED BY LSI PROGRAM
**TEST-LITE**

AIMED 30º. TOWARD WALL

L

AMP: 39W T6 MH, PHILIPS

LUMEN RATING: 3400 LMS.

CBCP: 10451
Beam Angle: 18
AROMAT 39W ELECTRONIC BALLAST

DATE: MAR 9, 2004
CERTIFIED TEST REPORT NO. 2529FR

C

OMPUTED BY LSI PROGRAM

*

*TEST-LITE**

30° Aiming Angle

Horizontal Surface

DC FC LW

6

' 3.5' 189 2.6' 2.2'
8' 4.6' 106 3.4' 2.9'
10' 5.8' 68 4.3' 3.7'
12' 6.9' 47 5.1' 4.4'
1

5' 8.7' 30 6.4' 5.5'

39W T6 CERAMIC MH NARROW FLOOD UPPER REFLECTOR

ANGLE WALL
0 1518
5 1673
10 2589
15 4991
20 10029
25 16852
30 19503
35 15467
40 7844
45 3109
50 1583
55 635
60 195
65 18
70 0
75 0
80 0
85 0
90 0

70W T6 CERAMIC MH NARROW FLOOD UPPER REFLECTOR

ANGLE WALL
0 2007
5 2615
10 3893
15 7816
20 16207
25 27282
30 31443
35 25856
40 16177
45 7133
50 4260
55 2397
60 971
65 287
70 20
75 0
80 0
85 0
90 0

150W T6 CERAMIC MH NARROW FLOOD UPPER REFLECTOR







(FC) is initial footcandles at center of
beam. Beam length (L) and beam width
(W) are to where the candlepower is
reduced to 50% of the center beam
candlepower. (C) is the distance to the
center of the beam.
