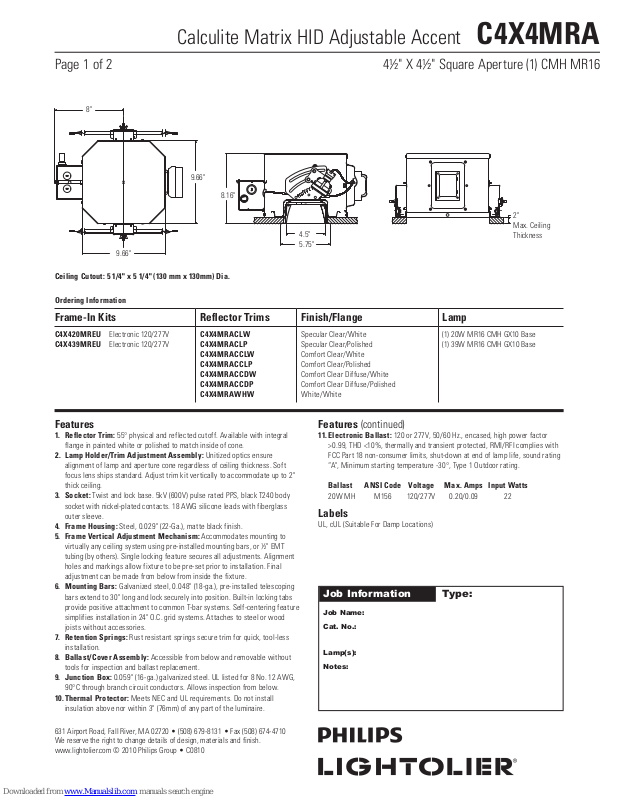

Calculite Matrix HID Adjustable Accent C 4X4MRA
8"
Page 1 of 2 4½" X 4½" Square Aperture (1) CMH MR16
9.66"
8.16"
2"
4.5"
9.66"
Ceiling Cutout: 5 1/4" x 5 1/4" (130 mm x 13 0mm) Dia.
Orde ring Information
5.75"
Frame-In Kits Reflector Trims Finish/Flange Lamp
C4 X420MREU Electronic 120/277V
C4 X43 9MREU Electronic 120/277V
C4 X4MR ACLW
C4 X4MR ACLP
C4 X4MR ACCLW
C4 X4MR ACCLP
C4 X4MR ACCDW
C4 X4MR ACCDP
C4 X4MR AWHW
Specular Clear/White
Specular Clear/Polished
Comfort Clear/White
Comfort Clear/Polished
Comfort Clear Diffuse/ White
Comfort Clear Diffuse/Polished
White/ White
(1) 20W MR16 CMH GX10 Base
(1) 39W MR16 CMH GX10 Base
Max. Ceiling
Thickness
Features
1. Reflector Trim: 55° physical and reflected cutoff. Available with integral
flange in painted white or polished to match inside of cone.
2. Lamp Holder/Trim Adjustment Assembly: Unitized optics ensure
alignment of lamp and aperture cone regardless of ceiling thickness. Soft
focus lens ships standard. Adjust trim kit vertically to accommodate up to 2"
thick ceiling.
3. Socket: Twist and lock base. 5kV (600V) pulse rated PPS, black T240 body
socket with nickel-plated contacts. 18 AWG silicone leads with fiberglass
outer sleeve.
4. Frame Housing: Steel, 0.029" (22-Ga.), matte black finish.
5. Frame Vertical Adjustment Mechanism: Accommodates mounting to
virtually any ceiling system using pre-installed mounting bars, or ½" EMT
tubing (by others). Single locking feature secures all adjustments. Alignment
holes and markings allow fixture to be pre-set prior to installation. Final
adjustment can be made from below from inside the fixture.
6. Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping
bars extend to 30" long and lock securely into position. Built-in locking tabs
provide positive attachment to common T-bar systems. Self-centering feature
simplifies installation in 24" O.C. grid systems. Attaches to steel or wood
joists without accessories.
7. Retention Springs: Rust resistant springs secure trim for quick, tool-less
installation.
8. Ballast/Cover Assembly: Accessible from below and removable without
tools for inspection and ballast replacement.
9. Junction Box: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG,
90°C through branch circuit conductors. Allows inspection from below.
10. Thermal Protector: Meets NEC and UL requirements. Do not install
insulation above nor within 3" (76mm) of any part of the luminaire.
Features (continued)
11. Electronic Ballast: 120 or 277V, 50/60 Hz., encased, high power factor
>0.99, THD <10%, thermally and transient protected, RMI/RFI complies with
FCC Par t 18 non-consumer limits, shut-down at end of lamp life, sound rating
“A", Minimum starting temperature -30°, Type 1 Outdoor rating.
Ballast ANSI Code Voltage Max. Amps Input Watts
20W MH M156 120/277V 0.20/0.09 22
Labels
UL, cUL (Suitable For Damp Locations)
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0810
Calculite Matrix HID Adjustable Accent C 4X4MRA
Page 2 of 2 4½" X 4½" Square Aperture (1) CMH MR16
(FC) is initial footcandles
at center of beam. Beam
length (L) and beam width
(W) are to where the
candlepower is reduced
to 50% of the center beam
candlepower. (C) is the
distance to the center of
the beam.
4 ½" x 4 ½" Aperture 20W CMH MR16-12°
1500
3000
4500
6000
60°
30°
Angle CP
0 124
5 197
10 270
15 501
20 1211
25 3241
3 0 5 894
3 5 3925
40 1293
45 239
50 54
55 0
60 0
65 0
70 0
75 0
80 0
85 0
90 0
20W G.E.HID MR16 12° SP,
GX10 BASE
Lamp @ 30° Ver tical Tilt
Lumen Rating = 1000 LMS.
CBCP = 5894 CD
Beam Angle = 12°
Test Report No. 3420FR
30° Aiming Angle - Horizontal Surface
D C FC L W
6' 3.5' 106 1.7' 1.5'
8' 4.6' 60 2.3' 1.9'
10' 5.8' 38 2.8' 2.4'
12' 6.9' 27 3.4' 2.9'
14' 8.1' 20 3.9' 3.4'
30° Aiming Angle - Vertical Surface
D C FC L W
2' 3.5' 184 1.7' 0.8'
3' 5.2' 82 2.6' 1.3'
4' 6.9' 46 3.5' 1.7'
5' 8.7' 29 4.3' 2.1'
6' 10.4' 20 5.2' 2.5'
4 ½" x 4 ½" Aperture 20W CMH MR16-25°
Angle CP
0 198
5 2 54
650
1300
1950
2600
60°
30°
10 418
15 904
20 1794
25 2485
30 2601
35 2385
40 1198
45 290
50 19
55 3
60 3
65 1
70 1
75 1
80 1
85 1
90 1
4 ½" x 4 ½" Aperture 20W CMH MR16-40°
Angle CP
0 101
5 172
10 364
500
1000
1500
60°
30°
15 717
20 1113
25 1368
30 1450
35 1430
40 1329
45 76 9
50 290
55 17
60 3
65 1
70 1
75 1
80 0
85 0
90 1
20W G.E.HID MR16 25° FL,
GX10 BASE
Lamp @ 30° Ver tical Tilt
Lumen Rating = 1000 LMS.
CBCP = 2601 CD
Beam Angle = 22°
Test Report No. 3419FR
20W G.E.HID MR16 40° WFL,
GX10 BASE
Lamp @ 30° Ver tical Tilt
Lumen Rating = 1000 LMS.
CBCP = 1450 CD
Beam Angle = 30°
Test Report No. 3417FR
30° Aiming Angle - Horizontal Surface
D C FC L W
6' 3.5' 47 3.6' 3.1'
8' 4.6' 26 4.8' 4.1'
10' 5.8' 17 6.0' 5.1'
12' 6.9' 12 7.2' 6.1'
14' 8.1' 9 8.4' 7.2'
30° Aiming Angle - Vertical Surface
D C FC L W
2' 3.5' 81 4.2' 1.8'
3' 5.2' 36 6.2' 2.7'
4' 6.9' 20 8.3' 3.5'
5' 8.7' 13 10.4' 4.4'
6' 10.4' 9 12.5' 5.3'
30° Aiming Angle - Horizontal Surface
D C FC L W
6' 3.5' 26 4.4' 3.7'
8' 4.6' 15 5.9' 5.0'
10' 5.8' 9 7.3' 6.2'
12' 6.9' 7 8.8' 7.4'
14' 8.1' 5 10.2' 8.7'
30° Aiming Angle - Vertical Surface
D C FC L W
2' 3.5' 45 5.5' 2.1'
3' 5.2' 20 8.2' 3.2'
4' 6.9' 11 10.9' 4.3'
5' 8.7' 7 13.7' 5.4'
6' 10.4' 5 16.4' 6.4'
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0810
