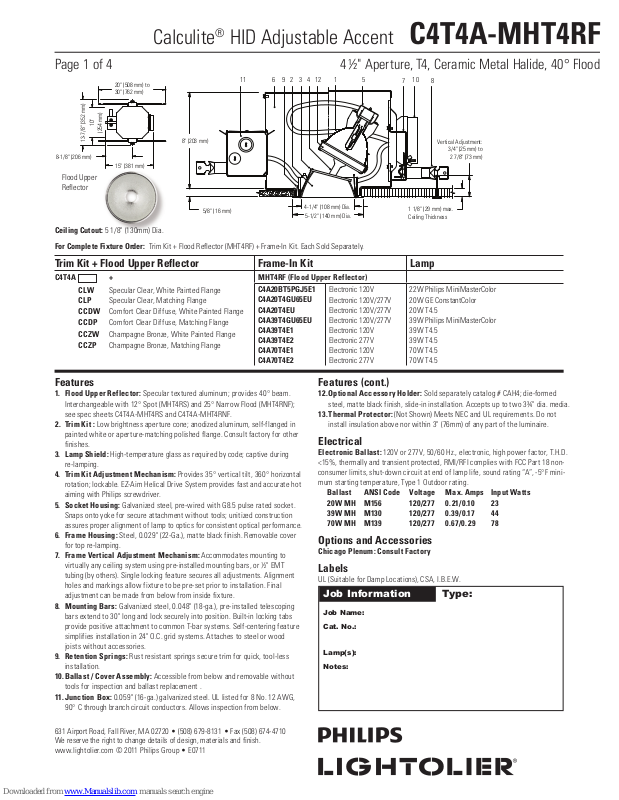

Lightolier Calculite C4T4A-MHT4RF Specification

Calculite

®

HID Adjustable Accent C4T4A-MHT4RF

Page 1 of 4 4 ½" Aperture, T4, Ceramic Metal Halide, 40° Flood

12 4 56891011 3712

Vertical Adjustment:

3/4" (25 mm) to

2 7/8" (73 mm)

8-1/8" (206 mm)

Flood Upper
Reflector

20" (508 mm) to
30" (762 mm)

10"

(254 mm)

13-7/8" (352 mm)

15" (381 mm)

8" (203 mm)

5/8" (16 mm)

Ceiling Cutout: 5 1/8" (130mm) Dia.

For Complete Fixture Order: Trim Kit + Flood Reflector (MHT4RF) + Frame-In Kit. Each Sold Separately.

4-1/4" (108 mm) Dia.

5-1/2" (140 mm) Dia.

1 1/8" (29 mm) max.
Ceiling Thickness

Trim Kit + Flood Upper Reflector Frame-In Kit Lamp

C4T4A

+

CLW Specular Clear, White Painted Flange
CLP Specular Clear, Matching Flange

CCDW Comfort Clear Diffuse, White Painted Flange
CCDP Comfort Clear Dif fuse, Matching Flange
CCZ W Champagne Bronze, White Painted Flange
CCZP Champagne Bronze, Matching Flange

Features

1. Flood Upper Reflector: Specular tex tured aluminum; provides 40° beam.

Interchangeable with 12° Spot (MHT4RS) and 25° Narrow Flood (MHT4RNF);
see spec sheets C4T4A-MHT4RS and C4T4A-MHT4RNF.

2. Trim Kit : Low brightness aperture cone; anodized aluminum, self-flanged in

painted white or aperture-matching polished flange. Consult factory for other

finishes.

3. Lamp Shield: High-temperature glass as required by code; captive during

re-lamping.

4. Trim Kit Adjustment Mechanism: Provides 35° vertical tilt, 360° horizontal

rotation; lockable. EZ-Aim Helical Drive System provides fast and accurate hot

aiming with Philips screwdriver.

5. Socket Housing: Galvanized steel, pre-wired with G8.5 pulse rated socket.

Snaps onto yoke for secure attachment without tools; unitized construction

assures proper alignment of lamp to optics for consistent optical performance.

6. Frame Housing: Steel, 0.029" (22-Ga.), matte black finish. Removable cover

for top re-lamping.

7. Frame Vertical Adjustment Mechanism: Accommodates mounting to

virtually any ceiling system using pre-installed mounting bars, or ½" EMT
tubing (by others). Single locking feature secures all adjustments. Alignment
holes and markings allow fixture to be pre-set prior to installation. Final
adjustment can be made from below from inside fixture.

8. Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping

bars extend to 30" long and lock securely into position. Built-in locking tabs
provide positive attachment to common T-bar systems. Self-centering feature
simplifies installation in 24" O.C. grid systems. Attaches to steel or wood

joists without accessories.

9. Retention Springs: Rust resistant springs secure trim for quick, tool-less

installation.

10. Ballast / Cover Assembly: Accessible from below and removable without

tools for inspection and ballast replacement .

11. Junct ion B ox: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG,

90° C through branch circuit conductors. Allows inspection from below.

MHT4RF (Flood Upper Reflector)

C4A20BT5PGJ5E1
C4A20T4GU65EU
C4A20T4EU
C4A39T4GU65EU
C4A39T4E1
C4A39T4E2
C4A70T4E1
C4A70T4E2

Electronic 120V
Electronic 120V/277V
Electronic 120V/277V
Electronic 120V/277V
Electronic 120V
Electronic 277V
Electronic 120V
Electronic 277V

Features (cont.)

12. Optional Accessory Holder: Sold separately catalog # CAH4; die-formed

steel, matte black finish, slide-in installation. Accepts up to two 3¾" dia. media.

13. Th ermal Pr otec tor : (Not Shown) Meets NEC and UL requirements. Do not

install insulation above nor within 3" (76mm) of any part of the luminaire.

Electrical

Electronic Ballast: 120V or 277V, 50/60 Hz., electronic, high power factor, T.H.D.

<15%, thermally and transient protected, RMI/RFI complies with FCC Part 18 non­consumer limits, shut-down circuit at end of lamp life, sound rating “A”, -5°F mini­mum starting temperature, Type 1 Outdoor rating.

Ballast ANSI Code Voltage Max. Amps Input Watts
20W MH M156 120/277 0.21/0.10 23
39W MH M130 120/277 0.3 9/ 0.17 44
70W MH M139 120/277 0.67/0.29 78

Options and Accessories

Chicago Plenum: Consult Factory

Labels

UL (Suitable for Damp Locations), CSA, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

22W Philips MiniMasterColor

20W GE ConstantColor
20W T4.5
39W Philips MiniMasterColor
39W T4.5
39W T4.5
70W T4.5
70W T4.5

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2011 Philips Group • E0711

Calculite

®

HID Adjustable Accent C4T4A-MHT4RF

Page 2 of 4 4 ½" Aperture, T4.5, Ceramic Metal Halide, 40° Flood

(FC) is initial footcandles at center of beam.
Beam length (L) and beam width (W) are to
where the candlepower is reduced to 50%
of the center beam candlepower. (C) is the

distance to the center of the beam.

CANDLEPOWER DISTRIBUTION 20W T4.5 – FLOOD

1,250

1,875

2,500

CANDLEPOWER DISTRIBUTION 39W T4.5 – FLOOD REFLECTOR

1,750

2,625

3,500

60°

30°

60°

30°

ANGLE WALL
0 244
5 361
10 581
15 962
20 1487
25 2181
30 2520
35 2084
40 1382
45 859
50 498
55 221
60 79
65 18

70 1

75 1
80 1
85 0
90 0

ANGLE WALL
0 446
5 660
10 1052
15 1762
20 2543
25 3163
30 3439
35 3133
40 2389
45 1670
50 1191
55 614

60 226

65 59

70 3

75 0
80 0
85 0
90 0

AIMED 30° TOWARD WALL

T4 20W G.E. METAL HALIDE LAMP
LUMEN RATING = 1700 LMS.
AROMAT 20W ELECTRONIC BALLAST

CBCP = 2,520 cd
BEAM ANGLE = 22°

DATE: OCT 31, 2003
CERTIFIED TEST REPORT NO. 2353FR

COMPUTED BY LSI PROGRAM
**TEST-LITE**

AIMED 30° TOWARD WALL

T4 39W PHILIPS METAL HALIDE LAMP
LUMEN RATING = 3300 LMS.
AROMAT 3,439 cd
BEAM ANGLE = 30°
AROMAT 39W ELECTRONIC BALLAST

DATE: OCT 30, 2003
CERTIFIED TEST REPORT NO. 2348FR

COMPUTED BY LSI PROGRAM
**TEST-LITE**

30° Aiming Angle

Horizontal Surface

D C FC L W

6' 3.5' 45 3.1' 2.7'
8' 4.6' 26 4.2' 3.6'
10' 5.8' 16 5.2' 4.5'
12' 6.9' 11 6.3' 5.4'
15' 8.7' 7 7.9' 6.7'

30° Aiming Angle

Horizontal Surface

D C FC L W

6' 3.5' 62 4.4' 3.7'
8' 4.6' 35 5.9' 5.0'
10' 5.8' 22 7.3' 6.2'
12' 6.9' 16 8.8' 7.4'
15' 8.7' 10 11.0' 9.3'

30° Aiming Angle

Vertical Surface

D C FC L W

2' 3.5' 79 3.5' 1.6'
3' 5.2' 35 5.3' 2.3'
4' 6.9' 20 7.0' 3.1'
6' 10.4' 9 10.5' 4.7'
8' 13.9' 5 14.0' 6.2'

30° Aiming Angle

Vertical Surface

D C FC L W

2' 3.5' 107 5.5' 2.1'
3' 5.2' 48 8.2' 3.2'
4' 6.9' 27 10.9' 4.3'
6' 10.4' 12 16.4' 6.4'
8' 13.9' 7 21.9' 8.6'

CANDLEPOWER DISTRIBUTION 70W T4.5 – FLOOD REFLECTOR

ANGLE WALL
0 1179
5 1830
10 2840
15 4083
20 5226
25 6268

60°

30 6667

30°

35 6027
40 4505
45 3236
50 1985
55 858
60 287
65 55

70 1

75 1
80 1
85 1
90 1

3,250

4,875

6,500

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2011 Philips Group • E0711

AIMED 30° TOWARD WALL

T4 70W PHILIPS METAL HALIDE LAMP
LUMEN RATING = 6400 LMS.
AROMAT 6,667 cd
BEAM ANGLE = 33°
AROMAT 70W ELECTRONIC BALLAST

DATE: OCT 26, 2003
CERTIFIED TEST REPORT NO. 2347FR

COMPUTED BY LSI PROGRAM
**TEST-LITE**

30° Aiming Angle

Horizontal Surface

D C FC L W

8' 4.6' 68 6.5' 5.5'
10' 5.8' 43 8.1' 6.8'
12' 6.9' 30 9.8' 8.2'
15' 8.7' 19 12.2' 10.3'
20' 11.5' 11 16.3' 13.7'

30° Aiming Angle

Vertical Surface

D C FC L W

3' 5.2' 93 9.6' 3.6'
4' 6.9' 52 12.9' 4.7'
6' 10.4' 23 19.3' 7.1'
8' 13.9' 13 25.7' 9.5'
12' 20.8' 6 38.6' 14.2'
