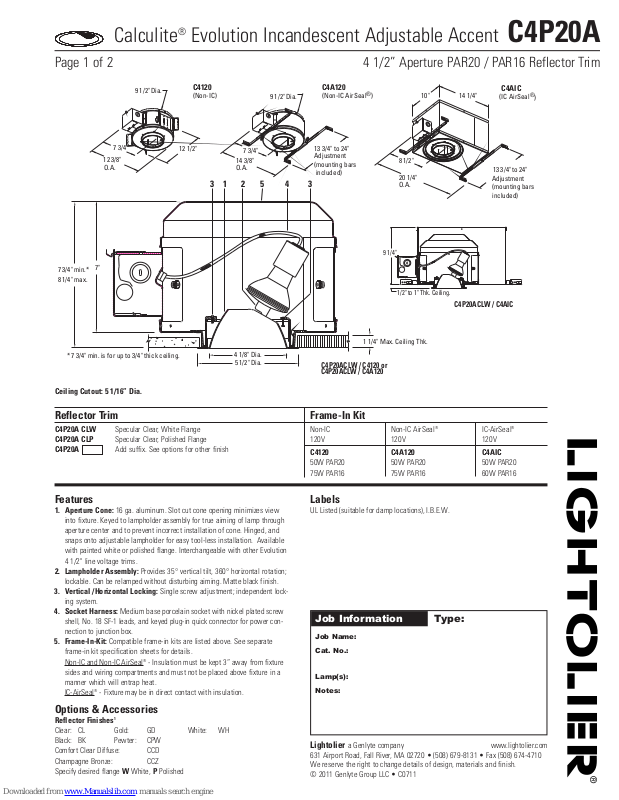

Lightolier Calculite C4P20A Specification
14 1/4"
Adjustment
(mounting bars
included)
13 3/4" to 24"
(IC AirSeal
®
)
C4AIC
10"
Adjustment
(mounting bars
included)
13 3/4" to 24"
O.A.
20 1/4"
8 1/2"
9 1/2" Dia.
O.A.
14 3/8"
7 3/4"
9 1/2" Dia.
O.A.
12 3/8"
7 3/4"
(Non-IC)
C4120
12 1/2"
(Non-IC AirSeal®)
C4A120
C4P20ACLW / C4AIC
1/2" to 1" Thk. Ceiling.
9 1/4"
345213
C4P20ACLW / C4A120
* 7 3/4" min. is for up to 3/4" thick ceiling.
4 1/8" Dia.
5 1/2" Dia.
7"
8 1/4" max.
7 3/4" min.*
1 1/4" Max. Ceiling Thk.
C4P20ACLW / C4120 or
Calculite
®
Evolution Incandescent Adjustable Accent C4P20A
Page 1 of 2 4 1/2” Aperture PAR20 / PAR16 Reflector Trim
Ceiling Cutout: 5 1/16” Dia.
Reflector Trim Frame-In Kit
C4P20A CLW Specular Clear, White Flange Non-IC Non-IC AirSeal
C4P20A CLP Specular Clear, Polished Flange 120V 120V 120V
C4P20A Add suffix. See options for other finish
Features
1. Aperture Cone: 16 ga. aluminum. Slot cut cone opening minimizes view
into fixture. Keyed to lampholder assembly for true aiming of lamp through
aperture center and to prevent incorrect installation of cone. Hinged, and
snaps onto adjustable lampholder for easy tool-less installation. Available
with painted white or polished flange. Interchangeable with other Evolution
4 1/2" line voltage trims.
2. Lampholder Assembly: Provides 35° vertical tilt, 360° horizontal rotation;
lockable. Can be relamped without disturbing aiming. Matte black finish.
3. Vertical /Horizontal Locking: Single screw adjustment; independent lock-
ing system.
4. Socket Harness: Medium base porcelain socket with nickel plated screw
shell, No. 18 SF-1 leads, and keyed plug-in quick connector for power connection to junction box.
5. Frame-In-Kit: Compatible frame-in kits are listed above. See separate
frame-in kit specification sheets for details.
Non-IC and Non-IC AirSeal®- Insulation must be kept 3” away from fixture
sides and wiring compartments and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal®- Fixture may be in direct contact with insulation.
Options & Accessories
Reflector Finishes
Clear: CL Gold: GD White: WH
Black: BK Pewter: CPW
Comfort Clear Diffuse: CCD
Champagne Bronze: CCZ
Specify desired flange W White, P Polished
1
®
IC-AirSeal
®
C4120 C4A120 C4AIC
50W PAR20 50W PAR20 50W PAR20
75W PAR16 75W PAR16 60W PAR16
Labels
UL Listed (suitable for damp locations), I.B.E.W.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
Calculite
®
Evolution Incandescent Adjustable Accent C4P20A
Page 2 of 2 4 1/2” Aperture PAR20 / PAR16 Reflector Trim
Accent Lighting Performance Data
(FC) is initial footcandles at center of
beam.Beam length (L) and beam width (W)
are to where the candlepower is reduced to
50% of the center beam candlepower.
CBCP is center beam candlepower. (C) is
distance to the center of the beam.
Lamp data shown is typical, and is based on
bare lamp photometrics. Contact lamp manufacturers for availability and performance.
0° Aiming Angle 30° Aiming Angle 30° Aiming Angle
Lamps
Beam Spread
(To 50% CBCP) Life (Hrs.)
PAR16 Halogen Line Voltage Lamps
60W PAR16
NSP 10˚
60W PAR16
NFL 30˚
75W PAR16
NSP 10˚
75W PAR16
NFL 30˚
1300 2000
7500 2000
1900 2000
PAR20 Halogen Line Voltage Lamps
35W PAR20
NSP 8˚
35W PAR20
NFL 30˚
35W PAR20
WFL 40˚
50W PAR20
NSP 8˚
50W PAR20
SP 15˚
50W PAR20
NFL 27˚
Rated
CBCP
5000 2000
3000 2500
900 2500
600 2500
6000 2000
3200 2000
1850 2000
D FC LW
6’ 139 1.0’ 1.0’
8’ 78 1.4’ 1.4’
10’ 50 1.7’ 1.7’
12’ 35 2.1’ 2.1’
3’ 144 1.6’ 1.6’
5’ 52 2.7’ 2.7’
7’ 27 3.8’ 3.8’
9’ 16 4.8’ 4.8’
7’ 153 1.2’ 1.2’
10’ 75 1.7’ 1.7’
13’ 44 2.3’ 2.3’
16’ 29 2.6’ 2.6’
4’ 119 2.1’ 2.1’
6’ 53 3.2’ 3.2’
8’ 30 4.3’ 4.3’
10’ 19’ 5.4’ 5.4’
6’ 83 0.8’ 0.8’
8’ 47 1.1’ 1.1’
10’ 30 1.4’ 1.4’
12’ 21 1.7’ 1.7’
3’ 100 1,6’ 1.6’
5’ 36 2.7’ 2.7’
7’ 18 3.8’ 3.8’
9’ 11 4.8’ 4.8’
3’ 67 2.2’ 2.2’
5’ 24 3.6’ 3.6’
7’ 12 5.1’ 5.1’
9’ 7 6.6’ 6.6’
6’ 167 0.8’ 0.8’
8’ 94 1.1’ 1.1’
10’ 60 1.4’ 1.4’
12’ 42 1.7’ 1.7’
6’ 89 1.6’ 1.6’
8’ 50 2.1’ 2.1’
10’ 32 2.6’ 2.6’
12’ 22 3.2’ 3.2’
4’ 116 1.9’ 1.9’
6’ 51 2.9’ 2.9’
8’ 29 3.8’ 3.8’
10’ 19 4.8’ 4.8’
D C FC LW
5’ 2.9’ 130 1.2’ 1.0’
7’ 4.0’ 66 1.6’ 1.4’
9’ 5.2’ 40 2.1’ 1.8’
11’ 6.4’ 27 2.6’ 2.2’
3’ 1.7’ 94 2.2’ 1.9’
5’ 2.9’ 34 3.7’ 3.1’
7’ 4.0’ 17 5.1’ 4.3’
9’ 5.2’ 10 6.6’ 5.6’
6’ 3.5’ 135 1.4’ 1.2’
9’ 5.2’ 60 2.1’ 1.8’
12’ 6.9’ 34 2.8’ 2.4’
15’ 8.7’ 22 3.5’ 3.0’
3’ 1.7’ 137 2.2’ 1.9’
5’ 2.9’ 49 3.7’ 3.1’
7’ 4.0’ 25 5.1’ 4.3’
9’ 5.2’ 15 6.6’ 5.6’
5’ 2.9’ 78 0.9’ 0.8’
7’ 4.0’ 40 1.3’ 1.1’
9’ 5.2’ 24 1.7’ 1.5’
11’ 6.4’ 16 2.1’ 1.8’
3’ 1.7’ 65 2.2’ 1.9’
5’ 2.9’ 23 3.7’ 3.1’
7’ 4.0’ 12 5.1’ 4.3’
9’ 5.2’ 7 6.6’ 5.6’
3’ 1.7’ 43 3.0’ 2.5’
5’ 2.9’ 16 5.1’ 4.2’
7’ 4.0’ 8 7.1’ 5.9’
9’ 5.2’ 5 9.1’ 7.6’
5’ 2.9’ 156 0.9’ 0.8’
7’ 4.0’ 80 1.3’ 1.1’
9’ 5.2’ 48 1.7’ 1.5’
11’ 6.4’ 32 2.1’ 1.8’
5’ 2.9’ 83 1.8’ 1.5’
7’ 4.0’ 42 2.5’ 2.1’
9’ 5.2’ 26 3.2’ 2.7’
11’ 6.4’ 17 3.9’ 3.3’
3’ 1.7’ 134 2.0’ 1.7’
5’ 2.9’ 48 3.3’ 2.8’
7’ 4.0’ 25 4.6’ 3.9’
9’ 5.2’ 15 5.9’ 5.0’
DC FC LW
2’ 3.5’ 156 1.4’ 0.7’
3’ 5.2’ 69 2.1’ 1.0’
4’ 6.9’ 39 2.9’ 1.4’
5’ 8.7’ 25 3.6’ 1.7’
1’ 1.7’ 163 2.7’ 1.1’
2’ 3.5’ 41 5.5’ 2.1’
3’ 5.2’ 18 8.2’ 3.2’
4’ 6.9’ 10 10.9’ 4.3’
2’ 3.5’ 234 1.4’ 0.7’
3’ 5.2’ 104 2.1’ 1.0’
4’ 6.9’ 59 2.9’ 1.4’
5’ 8.7’ 38 3.6’ 1.7’
1’ 1.7’ 238 2.7’ 1.1’
2’ 3.5’ 59 5.5’ 2.1’
3’ 5.2’ 26 8.2’ 3.2’
4’ 6.9’ 15 10.9’ 4.3’
2’ 3.5’ 94 1.1’ 0.6’
3’ 5.2’ 42 1.7’ 0.8’
4’ 6.9’ 23 2.3’ 1.1’
5’ 8.7’ 15 2.8’ 1.4’
1’ 1.7’ 113 2.7’ 1.1’
2’ 3.5’ 28 5.5’ 2.1’
3’ 5.2’ 13 9.2’ 3.2’
4’ 6.9’ 7 10.9’ 4.3’
1’ 1.7’ 75 4.8’ 1.5’
2’ 3.5’ 19 9.7’ 2.9’
3’ 5.2’ 8 14.5’ 4.4’
4’ 6.9’ 5 19.3’ 5.8’
2’ 3.5’ 188 1.1’ 0.6’
3’ 5.2’ 83 1.7’ 0.8’
4’ 6.9’ 47 2.3’ 1.1’
5’ 8.7’ 30 2.8’ 1.4’
2’ 3.5’ 100 2.2’ 1.1’
3’ 5.2’ 44 3.3’ 1.6’
4’ 6.9’ 25 4.4’ 2.1’
5’ 8.7’ 16 5.6’ 2.6’
1’ 1.7’ 231 2.3’ 1.0’
2’ 3.5’ 58 4.6’ 1.9’
3’ 5.2’ 26 7.0’ 2.9’
4’ 6.9’ 14 9.3’ 3.8’
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
