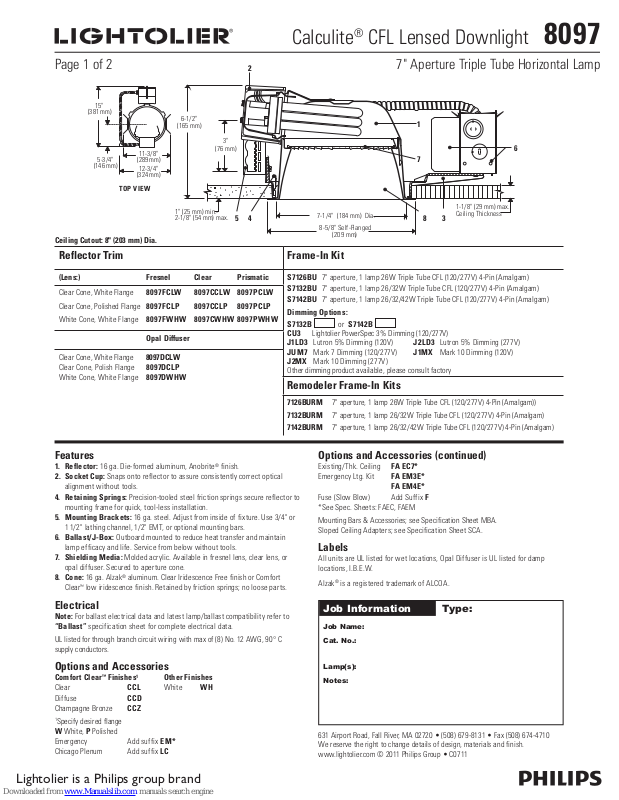

Lightolier Calculite 8097 Specification
Calculite
®
CFL Lensed Downlight 8097
Page 1 of 2 7" Aperture Triple Tube Horizontal Lamp
15"
(381 mm)
5-3/4"
(146 mm)
Ceiling Cutout: 8" (203 mm) Dia.
11-3/8"
(289 mm)
12-3/4"
(324 mm)
TOP VIEW
6-1/2"
(165 mm)
(76 mm)
1" (25 mm) min.2-1/8" (54 mm) max.
2
1
3"
7
1-1/8" (29 mm) max.
5
4
7-1/4" (184 mm) Dia.
8-5/8" Self-Flanged
(209 mm)
8
Ceiling Thickness
3
6
Reflector Trim Frame-In Kit
(Lens:) Fresnel Clear Prismatic
Clear Cone, White Flange 8097FCLW 8097CCLW 8097PCLW
Clear Cone, Polished Flange 8097FCLP 8097CCLP 8097PCLP
White Cone, White Flange 8097FWHW 8097CWHW 8097PWHW
Opal Diffuser
Clear Cone, White Flange 8097DCLW
Clear Cone, Polish Flange 8097DCLP
White Cone, White Flange 8097DWHW
S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S713 2BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S7132B or S714 2B
CU3 Lightolier PowerSpec 3% Dimming (120/277V)
J1LD3 Lutron 5% Dimming (120V) J2LD3 Lutron 5% Dimming (277V)
JUM7 Mark 7 Dimming (120/277V) J1MX Mark 10 Dimming (120V)
J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
7126BURM 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))
7132BURM 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
7142BURM 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Features
1. Reflector: 16 ga. Die-formed aluminum, Anobrite® finish.
2. Socket Cup: Snaps onto reflector to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
7. Shielding Media: Molded acrylic. Available in fresnel lens, clear lens, or
opal diffuser. Secured to aperture cone.
8. Cone: 16 ga. Alzak® aluminum. Clear Iridescence Free finish or Comfort
Clear™ low iridescence finish. Retained by friction springs; no loose parts.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
“Ballast” specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.
Options and Accessories
Comfort Clear™ Finishes1 Other Finishes
Clear CCL White WH
Diffuse CCD
Champagne Bronze CCZ
1
Specify desired flange
W White, P Polished
Emergency Add suffix EM*
Chicago Plenum Add suffix LC
Options and Accessories (continued)
Existing/Thk. Ceiling FA EC7*
Emergency Ltg. Kit FA EM3E*
FA EM4E*
Fuse (Slow Blow) Add Suffix F
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
All units are UL listed for wet locations, Opal Diffuser is UL listed for damp
locations, I.B.E.W.
®
is a registered trademark of ALCOA.
Alzak
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
Lightolier is a Philips group brand
Calculite
®
CFL Lensed Downlight 8097
Page 2 of 2 7" Aperture Triple Tube Horizontal Lamp
Clear Reflector Cone (CL)
Quick Calculator
80
70
60
50
40
30
INITIAL FOOTCANDLES
20
10
20 40 60 80 100 120
34 56 7891011
This quick calculator chart determines the number and spacing of 1 It.- 42W PL-T units
with Fresnel Lens and Clear Cone for any level of illumination. Conversion factors: Opal
diffuser, fc x 0.8; Clear Shielding, fc x 1.0.
CENTER TO CENTER DISTANCE OF FIXTURES IN FEET
ROOM SURFACE REFLECTANCES:
80% Ceiling; 50% Wall; 20% Floor
3200 Lumens Per Lamp
RCR= 1 (Rm. Width= 10xMtg. Ht. above work plane)
RCR= 5 (Rm. Width= 2xMtg. Ht. above work plane)
RCR=10 (Rm. Width= Mtg. Ht. above work plane)
AREA PER FIXTURE IN SQUARE FEET
Spacing Ratio = 1.2
CERTIFIED TEST REPORT NO. 0066FR
COMPUTED BY LSI PROGRAM **TEST-LITE**
CALCULITE 7 3/16" DIAMETER RECESSED FLUORESCENT LENSED DOWNLIGHT
SEMI-SPECULAR REFLECTOR WITH CLEAR CONE AND FRESNEL LENS
LUMEN RATING = 3200 LMS. 1-42W PL-T LAMP
150
400
800
1200
180
0
Across
Along
ANGLE ALONG 22.5 45 67.5 ACROSS LUMENS
45
0 1027 1027 1027 1027 1027
5 1002 994 1006 1022 1037 48
10 964 942 969 1001 1034
9090
15 906 851 887 932 995 128
20 831 738 786 852 937
25 736 619 692 773 880 167
30 619 519 603 698 805
60
35 508 449 516 590 680 169
40 420 406 431 469 525
45 335 349 361 381 413 144
50 267 310 307 313 322
55 102 132 129 144 156 70
60 34 41 47 55 61
65 48912148
30
70 00000
75 000000
80 00000
85 000000
90 00000
ZONE LUMENS % LAMP %LUMINAIRE
40-90 421 13.17 28.05
60-90 12 .38 .81
90-180 0 .00 .00
0-180 1502 46.97 100.00
120
60
30
** EFFICIENCY = 47.0%** EFFICIENCY = 47.0%
** EFFICIENCY = 47.0% **
** EFFICIENCY = 47.0%** EFFICIENCY = 47.0%
Coefficients Of Utilization
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50 30 10 0
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
1 .52 .51 .49 .51 .50 .49 .49 .48 .47 .47 .46 .46 .46 .45 .44 .44
248 .46 .44 .47 .45 .44 .46 .44 .43 .44 .43 .42 .43 .42 .41 .40
3 .44 .42 .40 .44 .42 .40 .43 .41 .39 .41 .40 .38 .40 .39 .38 .37
4 .41 .38 .36 .41 .38 .36 .40 .37 .36 .39 .37 .35 .38 .36 .35 .34
5 .38 .35 .33 .38 .35 .33 .37 .34 .33 .36 .34 .32 .35 .33 .32 .31
6 .35 .32 .30 .35 .32 .30 .34 .32 .30 .33 .31 .29 .33 .31 .29 .29
7 .32 .29 .27 .32 .29 .27 .31 .29 .27 .31 .28 .27 .30 .28 .26 .26
8 .30 .27 .25 .29 .27 .24 .29 .26 .24 .29 .26 .24 .28 .26 .24 .23
ROOM CAVITY RATIO
9 .28 .24 .22 .27 .24 .22 .27 .24 .22 .26 .24 .22 .26 .24 .22 .21
10 .25 .22 .20 .25 .22 .20 .25 .22 .20 .24 .22 .20 .24 .22 .20 .19
20% FLOOR CAVITY REFLECTANCE
Conversion Factors: Opal Diffuser, cu x 0.8; Clear Shielding, cu x 1.0.
CANDLEPOWER
ZONAL LUMENS AND PERCENTAGES
0-30 719 22.47 47.85
0-40 1081 33.79 71.95
0-60 1490 46.58 99.19
0-90 1502 46.97 100.00
White Reflector Cone (WH)
Quick Calculator
60
50
40
30
20
INITIAL FOOTCANDLES
10
15 30 45 60 75 90 105 120
AREA PER FIXTURE IN SQUARE FEET
45 678 91011
This quick calculator chart determines the number and spacing of 1 It.- 42W PL-T units
with Fresnel Lens and White Cone for any level of illumination. Conversion factors: Opal
diffuser, fc x 0.8; Clear Shielding, fc x 1.0.
CENTER TO CENTER DISTANCE OF FIXTURES IN FEET
ROOM SURFACE REFLECTANCES:
80% Ceiling; 50% Wall; 20% Floor
3200 Lumens Per Lamp
RCR= 1 (Rm. Width= 10xMtg. Ht. above work plane)
RCR= 5 (Rm. Width= 2xMtg. Ht. above work plane)
RCR=10 (Rm. Width= Mtg. Ht. above work plane)
Spacing Ratio = 1.2
CERTIFIED TEST REPORT NO. 0071FR
COMPUTED BY LSI PROGRAM **TEST-LITE**
CALCULITE 7 3/16" DIAMETER RECESSED FLUORESCENT LENSED DOWNLIGHT
SEMI-SPECULAR REFLECTOR WITH WHITE CONE AND FRESNEL LENS
LUMEN RATING = 3200 LMS. 1-42W PL-T LAMP
150
120
** EFFICIENCY =39.3%** EFFICIENCY =39.3%
** EFFICIENCY =39.3% **
** EFFICIENCY =39.3%** EFFICIENCY =39.3%
Coefficients Of Utilization
180
Across
45
Along
200
400
600
0
ANGLE ALONG 22.5 45 67.5 ACROSS LUMENS
0 753 753 753 753 753
5 740 727 739 753 765 35
10 700 679 712 746 774
9090
15 643 612 660 712 757 95
20 377 532 591 656 718
25 514 460 517 585 660 124
30 448 394 444 506 581
6060
35 382 342 376 422 486 124
40 314 294 312 341 387
45 249 243 252 269 295 101
50 188 190 197 209 223
55 134 139 144 156 163 66
60 90 94 98 104 109
65 59 62 64 67 68 34
70 43 47 42 48 48
3030
75 30 33 33 33 34 17
80 17 20 20 20 21
85 577775
90 00000
ZONE LUMENS % LAMP%LUMINAIRE
40-90 454 14.21 36.18
60-90 106 3.32 8.45
90-180 0 .00 .00
0-180 1256 39.28 100.00
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50 30 10 0
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
1 .43 .41 .40 .42 .41 .40 .40 .39 .39 .39 .38 .37 .37 .37 .36 .36
2 .39 .37 .35 .38 .36 .35 .37 .35 .34 .36 .35 .33 .35 .34 .33 .32
3 .35 .33 .31 .35 .33 .31 .34 .32 .31 .33 .31 .30 .32 .31 .30 .29
4 .33 .30 .28 .32 .30 .28 .31 .29 .28 .30 .29 .27 .27 28 .27 .26
5 .30 .27 .26 .30 .27 .25 .29 .26 .25 .28 .26 .25 .27 .26 .24 .24
6 .27 .25 .33 .27 .24 .23 .26 .24 .22 .26 .24 .22 .25 .23 .22 .21
7 .25 .22 .20 .25 .22 .20 .24 .22 .20. .24 .22 .20. 23 .21 .20 .19
8 .23 .20 .18 .23 .20 .18 .22 .20 .18 .22 .20 .18 .22 .20 .18 .17
ROOM CAVITY RATIO
9 .21 .19 .17 .21 .18 .17 .21 .18 .16 .20 .18 .16 .20 .18 .26 .16
10 .20 .17 .15 .19 .17 .15 .19 .17 .15 .19 .16 .15 .18 .16 .15 .14
20% FLOOR CAVITY REFLECTANCE
Conversion Factors: Opal Diffuser, cu x 0.8; Clear Shielding, cu x 1.0.
CANDLEPOWER
ZONAL LUMENS AND PERCENTAGES
0-30 531 16.60 42.26
0-40 802 25.07 63.82
0-60 1150 35.96 91.55
0-90 1256 39.23 100.00
