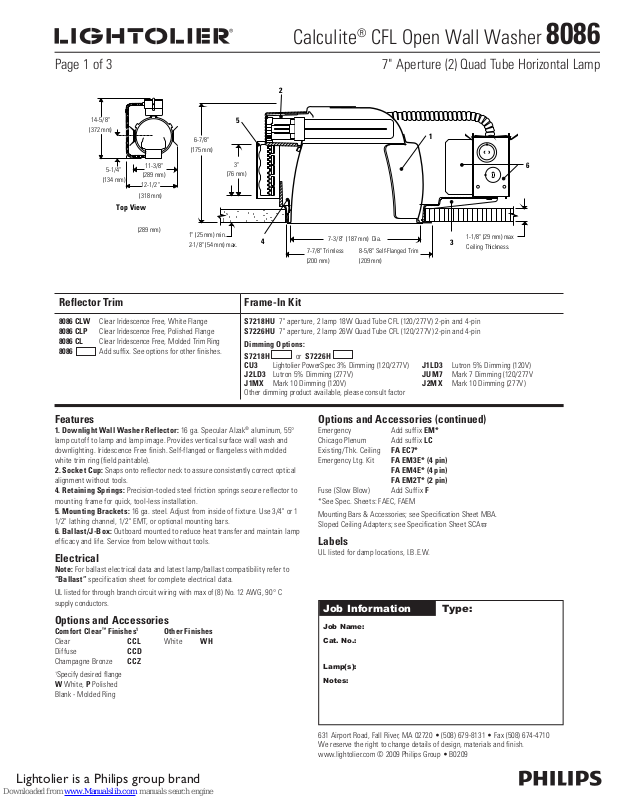

Lightolier Calculite 8086 Specification
Calculite
®
CFL Open Wall Washer 8086
Page 1 of 3 7" Aperture (2) Quad Tube Horizontal Lamp
2
14-5/8"
(372 mm)
(134 mm)
5-1/4"
Top View
11-3/8"
(289 mm)
12-1/2"
(318 mm)
(289 mm)
6-7/8"
(175 mm)
1" (25 mm) min.
2-1/8" (54 mm) max.
5
3"
(76 mm)
4
Reflector Trim Frame-In Kit
8086 CLW Clear Iridescence Free, White Flange
8086 CLP Clear Iridescence Free, Polished Flange
8086 CL Clear Iridescence Free, Molded Trim Ring
8086 Add suffix. See options for other finishes.
S7218HU 7" aper ture, 2 lamp 18W Quad Tube CFL (120/277V) 2-pin and 4-pin
S72 26HU 7" aper ture, 2 lamp 26W Quad Tube CFL (120/277V) 2-pin and 4-pin
Dimming Options:
S7218H or S7226H
CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
J2LD3 Lutron 5% Dimming (277V) JUM7 Mark 7 Dimming (120/277V
J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factor
7-3/8" (187 mm) Dia.
7-7/8" Trimless
(200 mm)
8-5/8" Self-Flanged Trim
(209 mm)
1
6
1-1/8" (29 mm) max
3
Ceiling Thickness.
Features
1. Downlight Wall Washer Reflector: 16 ga. Specular Alzak® aluminum, 55°
lamp cutoff to lamp and lamp image. Provides vertical surface wall wash and
downlighting. Iridescence Free finish. Self-flanged or flangeless with molded
white trim ring (field paintable).
2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or 1
1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast /J-Box: Outboard mounted to reduce heat transfer and maintain lamp
efficacy and life. Service from below without tools.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
“Ballast” specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.
Options and Accessories
Comfort Clear™ Finishes1 Other Finishes
Clear CCL White WH
Diffuse CCD
Champagne Bronze CCZ
1
Specify desired flange
W White, P Polished
Blank - Molded Ring
Options and Accessories (continued)
Emergency Add suffix EM*
Chicago Plenum Add suffix LC
Existing/Thk. Ceiling FA EC7*
Emergency Ltg. Kit FA EM3E* (4 pin)
FA EM4E* (4 pin)
FA EM2T * (2 pin)
Fuse (Slow Blow) Add Suf fix F
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCAπ
Labels
UL listed for damp locations, I.B.E.W.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0209
Calculite
®
CFL Open Wall Washer 8086
Page 2 of 3 7" Aperture (2) Quad Tube Horizontal Lamp
Lighting Data
4’
3’
21 f.c.
21 f.c.
Footcandles On Wall From Multiple Units 26W Quad Tube - Clear And Clear If Reflector
4’
3’
Units 2 Feet From Wall
2’ 3’
EXAMPLE: With multiple clear reflector units located
3’ from wall and 4’ on center, (matching downlights 4’
on center), the illumination on the wall 3’ down from
the ceiling is 21 f.c. beneath and between
fixtures.
4’
1
57 55 57
2
60 63 60
3
50 54 50
4
41 43 41
5
31 32 31
6
23 13 23
7
17 17 17
8
Distance From Ceiling, Ft.
Distance From Ceiling, Ft.
Footcandles values are averaged and rounded off and are based on a minimum of five units.
Candlepower Distribution Coefficients Of Utilizationn
90º
13 13 13
9
10 10 10
1
16 14 16
2
30 30 30
3
27 29 27
4
24 26 24
5
22 23 22
6
19 20 19
7
16 16 16
8
13 13 13
9
11 11 11
3’ 4’
45 30 45
41 39 41
31 36 31
27 31 27
22 24 22
17 18 17
13 14 13
10 10 10
8 8 8
Units 3 Feet From Wall
12 8 12
25 21 25
21 21 21
17 19 17
16 18 16
14 16 14
12 13 12
11 11 11
9 9 9
90º
43 16 43
36 24 36
23 25 23
20 23 20
17 19 17
13 15 13
10 11 10
8 9 8
6 7 6
5’
11 5 11
24 15 24
18 15 18
13 15 13
12 14 12
11 13 11
10 11 10
9 10 9
8 8 8
% Effective Ceiling Cavity Reflectance
80 50 10
200
50 30 10 50 30 10 50 30 10
60º
400
60º
1 .54 .52 .51 .51 .50 .49 .47 .46 .46
2 .49 .47 .44 .47 .45 .43 .44 .42 .41
3 .45 .42 .39 .43 .40 .38 .40 .38 .37
4 .41 .37 .35 .39 .36 .34 .37 .35 .33
600
5 .37 .34 .31 .36 .33 .31 .34 .32 .30
6 .34 .30 .28 .33 .30 .27 .31 .29 .27
7 .31 .27 .25 .30 .26 .24 .28 .26 .24
30º
Downlight Spacing Ratio = 1.1
30º
Wall Wash SideDownlight Side
Room Cavity Ratio
8 .28 .24 .22 .27 .24 .22 .26 .23 .21
9 .26 .22 .19 .25 .21 .19 .24 .21 .19
10 .23 .19 .17 .22 .19 .17 .22 .19 .17
6’
10 3 10
23 11 23
16 11 16
11 11 11
10 12 10
9 11 9
9 10 9
8 8 8
6 7 6
%Wall Reflectance
20% Floor Cavity Reflectance
