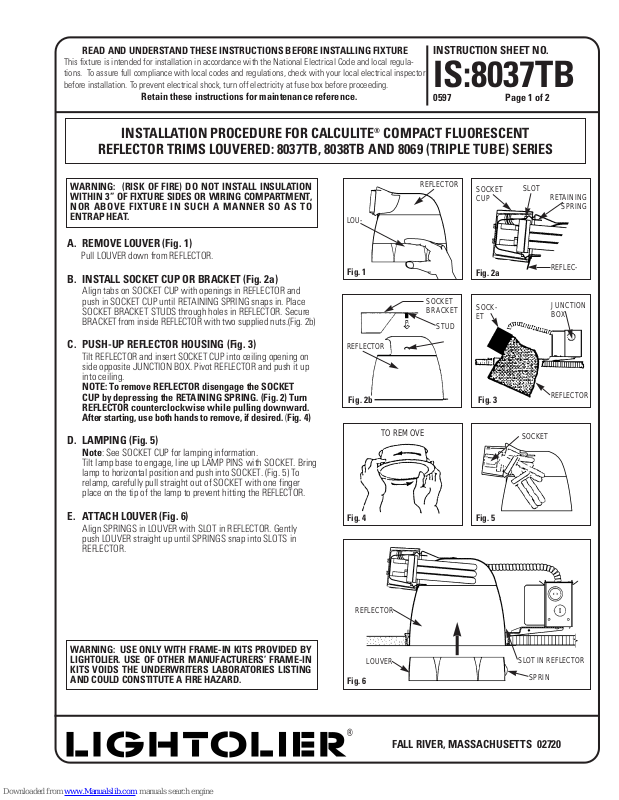

Lightolier CALCULITE 8037TB, CALCULITE 8038TB, CALCULITE 8069 Instruction Sheet

INSTRUCTION SHEET NO.

IS:8037TB

0597 Page 1 of 2

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regula­tions. To assure full compliance with local codes and regulations, check with your local electrical inspector
before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTALLATION PROCEDURE FOR CALCULITE®COMPACT FLUORESCENT

REFLECTOR TRIMS LOUVERED: 8037TB, 8038TB AND 8069 (TRIPLE TUBE) SERIES

A. REMOVE LOUVER (Fig. 1)

Pull LOUVER down from REFLECTOR.

B. INSTALL SOCKET CUP OR BRACKET (Fig. 2a)

Align tabs on SOCKET CUP with openings in REFLECTOR and
push in SOCKET CUP until RETAINING SPRING snaps in. Place
SOCKET BRACKET STUDS through holes in REFLECTOR. Secure
BRACKET from inside REFLECTOR with two supplied nuts.(Fig. 2b)

C. PUSH-UP REFLECTOR HOUSING (Fig. 3)

Tilt REFLECTOR and insert SOCKET CUP into ceiling opening on
side opposite JUNCTION BOX. Pivot REFLECTOR and push it up
into ceiling.

NOTE: To remove REFLECTOR disengage the SOCKET
CUP by depressing the RETAINING SPRING. (Fig. 2) Turn
REFLECTOR counterclockwise while pulling downward.
After starting, use both hands to remove, if desired. (Fig. 4)

D. LAMPING (Fig. 5)

Note: See SOCKET CUP for lamping information.

Tilt lamp base to engage, line up LAMP PINSwith SOCKET. Bring
lamp to horizontal position and push into SOCKET. (Fig. 5) To
relamp, carefully pull straight out of SOCKET with one finger
place on the tip of the lamp to prevent hitting the REFLECTOR.

E. ATTACH LOUVER (Fig. 6)

Align SPRINGS in LOUVER with SLOT in REFLECTOR. Gently
push LOUVER straight up until SPRINGS snap into SLOTS in
REFLECTOR.

WARNING: (RISK OF FIRE) DO NOT INSTALL INSULATION
WITHIN 3” OF FIXTURE SIDES OR WIRING COMPARTMENT,
NOR ABOVE FIXTURE IN SUCH A MANNER SO AS TO
ENTRAP HEAT.

®

FALL RIVER, MASSACHUSETTS 02720

®

TO REMOVE

WARNING: USE ONLY WITH FRAME-IN KITS PROVIDED BY
LIGHTOLIER. USE OF OTHER MANUFACTURERS’ FRAME-IN
KITS VOIDS THE UNDERWRITERS LABORATORIES LISTING
AND COULD CONSTITUTE A FIRE HAZARD.

Fig. 1

Fig. 2a

Fig. 3

Fig. 4 Fig. 5

Fig. 6

SPRIN

REFLECTOR

LOUVER

SLOT IN REFLECTOR

Fig. 2b

SOCKET
BRACKET

STUD

REFLECTOR

REFLECTOR

LOU-

REFLEC-

SOCKET
CUP

SLOT

RETAINING

SPRING

JUNCTION
BOX

SOCK­ET

REFLECTOR

SOCKET

FALL RIVER, MASSACHUSETTS 02720

INSTRUCTION SHEET NO.

IS:8037TB

0597 Page 2 of 2

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regula­tions. To assure full compliance with local codes and regulations, check with your local electrical inspector
before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

®

®

INSTALLATION PROCEDURE FOR CALCULITE®COMPACT FLUORESCENT

REFLECTOR TRIMS LOUVERED: 8056TB SERIES (QUAD OR TWIN TUBE)

A. REMOVE LOUVER (Fig. 1)

Pull LOUVER down from REFLECTOR HOUSING.

B. SNAP IN (Fig. 2)

Align tabs on SOCKET CUP with openings in REFLECTOR HOUSING
and push in SOCKET CUP until RETAINING SPRING snaps in.

C. PUSH-UP REFLECTOR HOUSING (Fig. 3)

Tilt REFLECTOR HOUSING and insert SOCKET CUP into ceiling
opening on side opposite JUNCTION BOX. Pivot REFLECTOR
HOUSING and push it up into ceiling.

Note: To remove REFLECTOR HOUSING disengage the
SOCKET CUP by depressing the RETAINING SPRING.
(Fig. 2) Turn REFLECTOR HOUSING counterclockwise
while pulling downward. After starting, use both hands
to remove, if desired. (Fig. 4)

D. LAMPING (Fig. 5)

Note: See SOCKET CUP for lamping information.

Insert lamp, tip first through hole in side of REFLECTOR HOUS­ING opposite lamp SOCKETS. Bring lamp to horizontal position,
line up pins, and push into SOCKET. To relamp, carefully pull
straight out of SOCKET, tilt base downward, and remove lamp.

E. ATTACH LOUVER (Fig. 6)

Align SPRINGS in LOUVER with SLOT in REFLECTOR. Gently
push LOUVER straight up until SPRINGS snap into SLOTS in
REFLECTOR HOUSING.

F. CARE AND MAINTENANCE OF “ALZAK” REFLECTOR

If handling of reflectors with anodized or Alzak®finish is
required, the use of clean white or plastic film gloves is recom­mended to avoid fingerprints.

Anodized or Alzak surfaces can be cleaned by the following
methods:

1. Wipe off with a soft, clean, dry, lint-free cloth.

2. Wipe off with a soft, clean cloth dampened in mild detergent
solution. Rinse, wipe dry with lint-free cloth or paper towel.

3. Wipe off with a soft, clean cloth dampened in a solution of
wetting agent and water (such as 2 oz. per gallon “Pluronic
L62-LF” by Wyandotte Products). Then wipe dry.

4. Or use a liquid wax such as Glass Wax®. Avoid gritting
cleaning agents.

WARNING: (RISK OF FIRE) DO NOT INSTALL INSULATION
WITHIN 3” OF FIXTURE SIDES OR WIRING COMPARTMENT,
NOR ABOVE FIXTURE IN SUCH A MANNER SO AS TO
ENTRAP HEAT.

WARNING: USE ONLY WITH FRAME-IN KITS PROVIDED BY
LIGHTOLIER. USE OF OTHER MANUFACTURERS’ FRAME-IN
KITS VOIDS THE UNDERWRITERS LABORATORIES LISTING
AND COULD CONSTITUTE A FIRE HAZARD.

TO REMOVE

Fig. 1

Fig. 2

REFLECTOR

HOUSING

RETAIN-

ING

SOCKET

TABS

JUNCTION

BOX

REFLECTOR

HOUSING

SOCKET CUP

SOCKET

REFLECTOR
HOUSING

SLOT IN
REFLECTOR

SPRING

LOUVER
