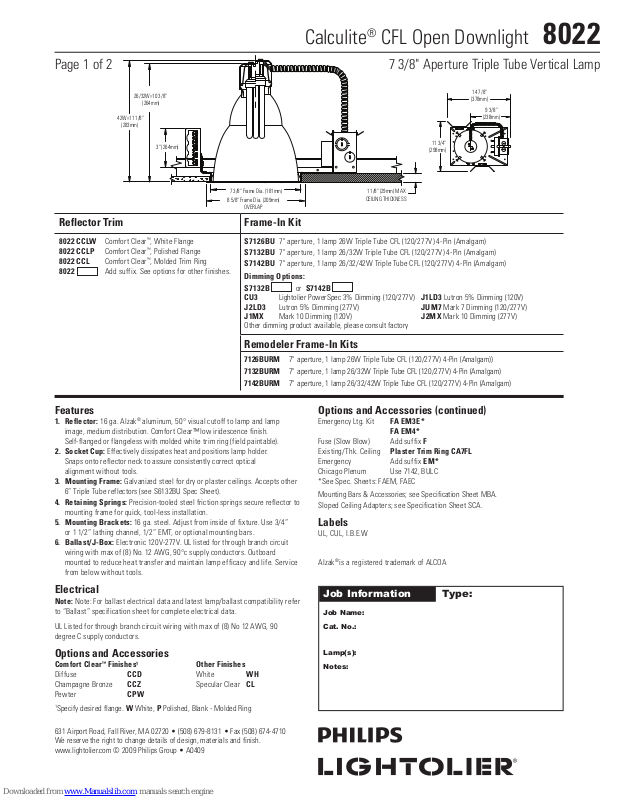

Lightolier Calculite 8022 Specification

Calculite

Top View

3" (264mm)

26/32W=10 3/8"

(264mm)

42W=11 1/8"

(283mm)

7 3/8" Frame Dia. (181mm)

8 5/8" Frame Dia. (209mm)

OVERLAP

1 1/8" (29mm) MAX

CEILING THICKNESS

14 7/8"

(378mm)

9 3/8"

(238mm)

11 3/4"
(298mm)

®

CFL Open Downlight 8022

Page 1 of 2 7 3/8" Aperture Triple Tube Vertical Lamp

Reflector Trim Frame-In Kit

8022 CCLW Comfort Clear™, White Flange
8022 CCLP Comfort Clear™, Polished Flange
8022 CCL Comfort Clear™, Molded Trim Ring
8022

Add suffix. See options for other finishes.

S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S713 2BU 7" aper ture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Dimming Options:
S713 2B or S714 2B

CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
J2LD3 Lutron 5% Dimming (277V) JUM7 Mark 7 Dimming (120/277V)
J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Remodeler Frame-In Kits

7126BURM 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))
7132BURM 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
7142BURM 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Features

1. Reflector: 16 ga. Alzak® aluminum, 50° visual cutoff to lamp and lamp

image, medium distribution. Comfort Clear™ low iridescence finish.
Self-flanged or flangeless with molded white trim ring (field paintable).

2. Socket Cup: Effectively dissipates heat and positions lamp holder.

Snaps onto reflector neck to assure consistently correct optical
alignment without tools.

3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other

6” Triple Tube reflectors (see S6132BU Spec Sheet).

4. Retaining Springs: Precision-tooled steel friction springs secure reflector to

mounting frame for quick, tool-less installation.

5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4”

or 1 1/2” lathing channel, 1/2” EMT, or optional mounting bars.

6. Ballast /J-Box: Electronic 120V-277V. UL listed for through branch circuit

wiring with max of (8) No. 12 AWG, 90°c supply conductors. Outboard
mounted to reduce heat transfer and maintain lamp efficacy and life. Service
from below without tools.

Options and Accessories (continued)

Emergency Ltg. Kit FA EM3E*
FA EM4*

Fuse (Slow Blow) Add suf fix F
Existing/Thk. Ceiling Plaster Trim Ring CA7FL
Emergency Add suffix EM*
Chicago Plenum Use 7142, BULC
*See Spec. Sheets: FAEM, FAEC

Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.

Labels

UL, CUL, I.B.E.W

Alzak® is a registered trademark of ALCOA

Electrical

Note: Note: For ballast electrical data and latest lamp/ballast compatibility refer

to “Ballast” specification sheet for complete electrical data.

UL Listed for through branch circuit wiring with max of (8) No 12 AWG, 90
degree C supply conductors.

Options and Accessories

Comfort Clear™ Finishes1 Other Finishes

Diffuse CCD White WH
Champagne Bronze CCZ Specular Clear CL
Pewter CP W

1

Specify desired flange. W White, P Polished, Blank - Molded Ring

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2009 Philips Group • A0409

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Page 2 of 2 7 3/8" Aperture Triple Tube Vertical Lamp

Coefficients Of Utilization

.43 .40 .37 .43 .39 .37 .42 .39 .37 .42 .39 .37 .41 .39 .37 .36
.38 .35 .32 .38 .35 .32 .38 .35 .32 .37 .34 .32 .37 .34 .32 .31

Clear™ reflector for any level of illumination.

32W

Quick Calculator

80

70

60

50

40

30

20

INITIAL FOOTCANDLES

10

20

3

5

4

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

This quick Calculator chart determines the number and spacing of 1 lt.-32W PL-T units with Comfort
Clear™ reflector for any level of illumination. Conversion factor: 1 lt. 26W PL-T with Comfort Clear
Clear™ reflector multiply, F.C. x 0.8.

Spacing Ratio = 1.1

REPORT PREPARED FOR: LIGHTOLIER
REPORT NO: LRL 499-9F2
REPORT BY: LIGHTING RESEARCH LABORATORY, INC.
DESCRIP: 7.5” DIA. RECESSED DOWNLIGHT WITH COMFORT CLEAR™
REFLECTOR LAMPS: 1PL-T 32W LUMENS=2400

200

400

600

800

1000

1200

15ϒ 25ϒ

5ϒ

0ϒ

**Efficiency = 61.6%**

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .69 .67 .66 .67 .66 .65 .65 .64 .63 .63 .62 .61 .61 .60 .59 .58
2 .65 .63 .61 .64 .62 .60 .62 .60 .50 .60 .59 .58 .58 .57 .56 .56
3 .61 .59 .57 .61 .58 .56 .59 .57 .55 .58 .56 .55 .56 .55 .54 .53
4 .58 .55 .53 .57 .54 .52 .56 .54 .52 .55 .53 .51 .54 .52 .50 .50
5 .55 .51 .49 .54 .51 .49 .53 .50 .49 .52 .50 .48 .51 .49 .48 .47
6 .52 .48 .40 .51 .48 .40 .50 .48 .40 .50 .47 .45 .49 .47 .45 .44
7 .49 .45 .43 .46 .45 .43 .48 .45 .43 .47 .44 .43 .46 .44 .42 .42
8 .46 .42 .40 .40 .42 .40 .45 .42 .40 .44 .42 .40 .44 .41 .40 .39

ROOM CAVITY RATIO

9

10

For 1 Lt. 26W triple tube with Comfort Clear reflector multiply C.U.’s by 1.1

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2009 Philips Group • A0409

ROOM SURFACE REFLECTANCES:

80% Ceiling; 50% Wall; 20% Floor
2400 Lumens Per Lamp

RCR = 1

(Rm. width = 10 x Mtg. Ht. above work plane)

RCR = 5

(Rm. width = 2 x Mtg. Ht. above work plane)

RCR = 10

(Rm. width = Mtg. Ht. above work plane)

40

60

80

AREA PER FIXTURE IN SQUARE FEET

7

6

8

100

9

10

CANDLEPOWER SUMMARY

85ϒ

ANGLE AVERAGE CP LUMENS
180 0
175 0 0

75ϒ

165 0 0
155 0 0
145 0 0

65ϒ

135 0 0
125 0 0
115 0 0
105 0 0

55ϒ

95 0 0
85 1 1
75 2 2
65 3 3

45ϒ

55 11 10
45 226 175
35 678 426
25 933 432
15 1117 317
5 1179 113

35ϒ

0 1126

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 861 35.9 58.3
0-40 1287 53.6 87.1
0-60 1472 61.3 99.6
0-90 1478 61.6 100.0
40-90 191 8.0 12.9
60-90 6 0.3 0.4
90-120 0 0.0 0.0
90-150 0 0.0 0.0
90-180 0 0.0 0.0
0-180 1478 61.6 100.00

EFFECTIVE CEILING CAVITY REFLECTANCE

WALL REFLECTANCE

20% FLOOR CAVITY REFLECTANCE

Calculite

®

CFL Open Downlight 8022

42W

Quick Calculator

80

70

60

50

40

30

20

INITIAL FOOTCANDLES

10

120

11

This quick Calculator chart determines the number and spacing of 1 lt.-42W PL-T units with Comfort

20

3

4

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

40

AREA PER FIXTURE IN SQUARE FEET

5

6

ROOM SURFACE REFLECTANCES:

80% Ceiling; 50% Wall; 20% Floor
3200 Lumens Per Lamp

(Rm. width = 10 x Mtg. Ht. above work plane)

RCR = 1
RCR = 5

(Rm. width = 2 x Mtg. Ht. above work plane)

RCR = 10

(Rm. width = Mtg. Ht. above work plane)

60

80

8

7

9

100

120

10

11

Spacing Ratio = .9

REPORT PREPARED FOR: LIGHTOLIER
REPORT NO: LRL 499-9E
REPORT BY: LIGHTING RESEARCH LABORATORY, INC.
DESCRIP: 7.5” DIA. x 11 HT RECESSED DOWNLIGHT WITH COMFORT CLEAR™
REFLECTOR. LAMPS: 1PLT 42W LUMENS=3200

85ϒ

200

75ϒ

400

600

800

65ϒ

55ϒ

1000

1200

45ϒ

1400

1600

0ϒ

**Efficiency = 59.6%**

April 27, 1999

15ϒ

5ϒ

25ϒ

35ϒ

ZONE LUMENS % LAMP %LUMINAIRE

0-30 1123 35.1 58.9
0-40 1623 50.7 85.1
0-60 1896 59.3 99.4
0-90 1908 59.6 100.0
40-90 284 8.9 14.9
60-90 12 0.4 0.6
90-120 0 0.0 0.0
90-150 0 0.0 0.0
90-180 0 0.0 0.0
0-180 1908 59.6 100.00

Coefficients of Utilization

CC WALL 80 70 50 30 10

RCR 50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .66 .65 .64 .65 .64 .63 .63 .62 .61 .60 .60 .59 .58 .58 .57 .56
2 .62 .60 .58 .61 .59 .57 .59 .58 .56 .57 .56 .55 .56 .55 .54 .53
3 .58 .55 .53 .57 .55 .53 .56 .54 .52 .54 .53 .51 .53 .52 .50 .50
4 .55 .52 .49 .54 .51 .49 .53 .50 .48 .52 .50 .48 .51 .49 .47 .46
5 .51 .48 .46 .51 .48 .45 .50 .47 .45 .49 .46 .45 .48 .46 .44 .43
6 .48 .45 .42 .48 .45 .50 .47 .44 .42 .46 .44 .42 .45 .43 .41 .41
7 .45 .42 .39 .45 .41 .39 .44 .41 .39 .43 .41 .39 .43 .40 .38 .38
8 .42 .39 .36 .42 .38 .36 .41 .38 .36 .40 .38 .36 .40 .37 .36 .35
9 .39 .36 .33 .39 .35 .33 .38 .35 .33 .38 .35 .33 .37 .35 .33 .32
10 .37 .33 .31 .36 .33 .31 .36 .33 .31 .35 .32 .30 .35 .32 .30 .30

Job Information Type:

CANDLEPOWER SUMMARY

ANGLE AVERAGE CP LUMENS
180 0
175 0 0
165 0 0
155 0 0
145 0 0
135 0 0
125 0 0
115 0 0
105 0 0
95 0 0
85 2 2
75 4 4
65 5 5
55 16 14
45 334 258
35 797 501
25 1178 545
15 1504 426
5 1585 151
0 1518

ZONAL LUMENS AND PERCENTAGES

ZONAL CAVITY METHOD

EFFECTIVE FLOOR CAVITY REFLECTANCE = .20
