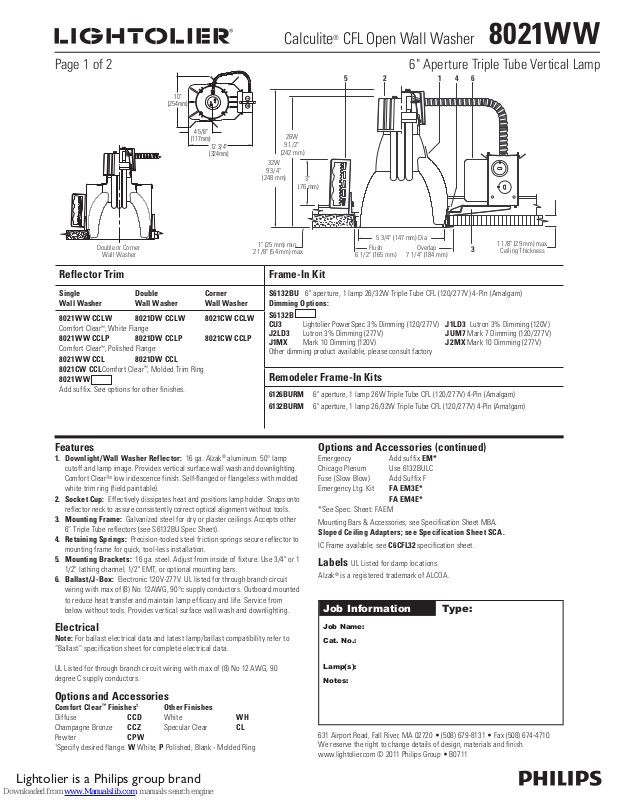

Calculite
®
CFL Open Wall Washer 8021WW
Page 1 of 2 6" Aperture Triple Tube Vertical Lamp
6
4
1
10"
(254mm)
5
2
Double or Corner
Wall Washer
4 5/8"
(117mm)
12 3/4"
(324mm)
2 1/8" (54 mm) max.
26W
9 1/2"
(242 mm)
32W
9 3/4"
(248 mm)
1" (25 mm) min.
3"
(76 mm)
Reflector Trim Frame-In Kit
Single Double Corner
Wall Washer Wall Washer Wall Washer
8021W W CCLW
Comfort Clear™, White Flange
8021W W CCLP 8021DW CCLP 8021CW CCLP
Comfort Clear™, Polished Flange
8021W W CCL 8021DW CCL
8021CW CCLComfort Clear™, Molded Trim Ring
8021W W
Add suffix. See options for other finishes.
802 1DW CCLW 8021CW CCLW
S6132BU 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S6132B
CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 3% Dimming (120V)
J2LD3 Lutron 3% Dimming (277V) JUM7 Mark 7 Dimming (120/277V)
J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
6126BURM 6" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
6132BURM 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
5 3/4" (147 mm) Dia
Flush
6 1/2" (165 mm)
Overlap
7 1/4" (184 mm)
3
1 1/8" (29 mm) max.
Ceiling Thickness
Features
1. Downlight/Wall Washer Reflector: 16 ga. Alzak® aluminum. 50° lamp
cutof f and lamp image. Provides vertical surface wall wash and downlighting.
Comfort ClearTM low iridescence finish. Self-flanged or flangeless with molded
white trim ring (field paintable).
2. Socket Cup: Ef fectively dissipates heat and positions lamp holder. Snaps onto
reflector neck to assure consistently correct optical alignment without tools.
3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other
6” Triple Tube reflectors (see S6132BU Spec Sheet).
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or 1
1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit
wiring with max of (8) No. 12AWG, 90°c supply conductors. Outboard mounted
to reduce heat transfer and maintain lamp efficacy and life. Service from
below without tools. Provides vertical surface wall wash and downlighting.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibilit y refer to
“Ballast” specification sheet for complete electrical data.
UL Listed for through branch circuit wiring with max of (8) No 12 AWG, 90
degree C supply conductors.
Options and Accessories
Comfort Clear™ Finishes1 Other Finishes
Diffuse CCD White WH
Champagne Bronze CCZ Specular Clear CL
Pewter CPW
1
Specif y desired flange. W White, P Polished, Blank - Molded Ring
Options and Accessories (continued)
Emergency Add suffix EM*
Chicago Plenum Use 6132BULC
Fuse (Slow Blow) Add Suffix F
Emergency Ltg. Kit FA EM3E*
FA EM4E*
*See Spec. Sheet: FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
IC Frame available; see C6CFL32 specification sheet.
Labels UL Listed for damp locations.
Alzak® is a registered trademark of ALCOA.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • B0711
Lightolier is a Philips group brand
Calculite
INSIDE CORNER
WALL WASHER
WALL
WASHER
DOUBLE
WALL WASHER
WALL
WALL
WALL
WALL
®
CFL Open Wall Washer 8021WW
Page 2 of 2 6" Aperture Triple Tube Vertical Lamp
Lighting Data
Footcandles On Wall: Multiple 32W Triple Tube Units
5'
14 f.c.
10 f.c.
3'
14 f.c.
5'
3'
2' From Wall-2' On Center
2
1 35 34 35
2 44 44 44
3 47 41 47
4 38 35 38
5 29 27 29
6 22 22 22
7 17 17 17
8 13 13 13
Distance From Ceiling in Feet
9 11 11 11
3' From Wall-3' On Center
3
1 11 11 11
2 18 18 18
3 20 20 20
4 22 19 21
5 20 18 20
6 17 16 17
7 15 13 14
8 12 11 12
9 11 10 10
Distance From Ceiling in Feet
2' From Wall-3' On Center
3
1 28 18 28
2 32 27 32
3 30 30 30
4 26 24 26
5 19 20 19
6 15 15 15
7 12 12 12
8 10 10 10
9 8 8 8
Distance From Ceiling in Feet
3' From Wall-4' On Center
4
1 9 8 9
2 14 13 14
3 16 15 16
4 16 16 16
5 15 14 15
6 13 12 13
7 11 11 11
8 10 9 10
Distance From Ceiling in Feet
9 8 8 8
2' From Wall-4' On Center
4
1 26 18 26
2 29 16 29
3 25 22 25
4 20 19 20
5 15 15 15
6 11 12 11
7 9 10 9
8 7 8 7
9 6 7 6
Distance From Ceiling in Feet
3' From Wall-5' On Center
5
1 9 5 9
2 13 9 13
3 14 10 14
4 13 13 13
5 12 12 12
6 11 10 11
7 9 9 9
8 8 8 8
Distance From Ceiling in Feet
9 7 7 7
Example: With multiple clear reflector
units located 3' from wall and spaced 5' on
center (matching downlights 5' on center),
the illumination on the wall 3' down from
ceiling will be 14 f.c. beneath units and 10
f.c. between units. Footcandle values are
averaged and rounded off and are based on
a minimum of five units. Conversion Factor
26WTTT: (Clear), f.c. x 0.8.
3' From Wall-6' On Center
6
1 9 3 9
2 13 6 13
3 13 7 13
4 13 9 13
5 11 10 11
6 9 9 9
7 8 7 8
8 7 7 7
Distance From Ceiling in Feet
9 5 6 5
Candlepower Distribution Downlight Spacing Ratio 1.1 Coefficients of Utilization
Downlight Wall Washer
Side Side
Lightolier is a Philips group brand
% Effective Ceiling Cavity Reflectance
80 70 50 30 10 0
Wall Reflectance
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
1 .58 .56 .55 .57 .55 .54 .54 .53 .53 .52 .52 .51 .51 .50 .49 .49
2 .53 .51 .49 .53 .50 .49 .51 .49 .48 .49 .48 .47 .48 .47 .46 .45
3 .49 .47 .45 .49 .46 .44 .47 .45 .44 .46 .44 .43 .45 .43 .42 .41
4 .46 .43 .41 .46 .43 .40 .44 .42 .40 .43 .41 .40 .42 .41 .39 .38
5 .43 .40 .37 .42 .39 .37 .41 .39 .37 .40 .38 .36 .40 .38 .36 .35
6 .40 .37 .34 .40 .36 .34 .39 .36 .34 .38 .36 .34 .37 .35 .33. .33
7 .37 .34 .31 .37 .34 .31 .36 .33 .31 .35 .33 .31 .35 .32 .31 .30
Room Cavity Ratio
8 .34 .31 .29 .34 .31 .29 .34 .31 .29 .33 .30 .28 .32 .30 .28 .28
9 .32 .29 .26 .32 .29 .26 .31 .28 .26 .31 .28 .26 .30 .28 .26 .25
10 .30 .27 .24 .30 .27 .24 .29 .26 .24 .29 .26 .24 .28 .26 .24 .23
20% Floor Cavity Reflectance
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • B0711
