Lightolier C7E17VW User Manual

Calculite

®

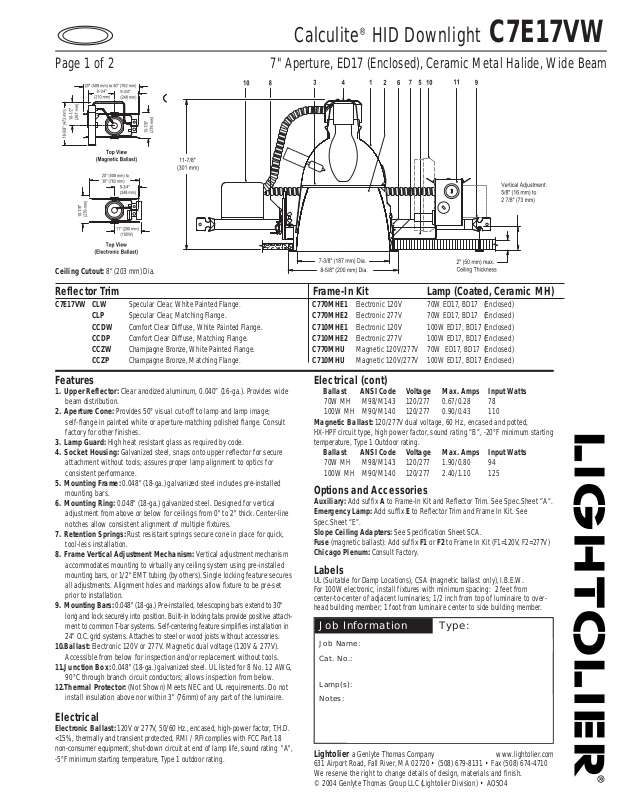

HID Downlight C7E17VW

Page 1 of 2 7" Aperture, ED17 (Enclosed), Ceramic Metal Halide, Wide Beam

Ceiling Cutout: 8" (203 mm) Dia.

Reflector Trim Frame-In Kit Lamp (Coated, Ceramic MH)

C7E17VW CLW Specular Clear,White Painted Flange.

CLP Specular Clear,Matching Flange.
CCDW Comfort Clear Diffuse, White Painted Flange.
CCDP Comfort Clear Diffuse, Matching Flange.
CCZW Champagne Bronze, White Painted Flange.
CCZP Champagne Bronze, Matching Flange.

C770MHE1 Electronic 120V 70W ED17, BD17 (Enclosed)
C770MHE2 Electronic 277V 70W ED17, BD17 (Enclosed)
C710MHE1 Electronic 120V 100W ED17, BD17 (Enclosed)
C710MHE2 Electronic 277V 100W ED17, BD17 (Enclosed)
C770MHU Magnetic 120V/277V 70W ED17, BD17 (Enclosed)
C710MHU Magnetic 120V/277V 100W ED17, BD17 (Enclosed)

Features

1. Upper Reflector: Clear anodized aluminum, 0.040” (16-ga.). Provides wide

beam distribution.

2. Aperture Cone: Provides 50°visual cut-off to lamp and lamp image;
self-flange in painted white or aperture-matching polished flange. Consult
factory for other finishes.

3. Lamp Guard: High heat resistant glass as required by code.

4. Socket Housing: Galvanized steel, snaps onto upper reflector for secure

attachment without tools; assures proper lamp alignment to optics for
consistent performance.

5. Mounting Frame: 0.048" (18-ga.) galvanized steel includes pre-installed
mounting bars.

6. Mounting Ring: 0.048" (18-ga.) galvanized steel. Designed for vertical
adjustment from above or below for ceilings from 0" to 2" thick. Center-line
notches allow consistent alignment of multiple fixtures.

7. Retention Springs: Rust resistant springs secure cone in place for quick,
tool-less installation.

8. Frame Vertical Adjustment Mechanism: Vertical adjustment mechanism
accommodates mounting to virtually any ceiling system using pre-installed
mounting bars, or 1/2" EMT tubing (by others). Single locking feature secures
all adjustments. Alignment holes and markings allow fixture to be pre-set
prior to installation.

9. Mounting Bars: 0.048" (18-ga.) Pre-installed, telescoping bars extend to 30"
long and lock securely into position. Built-in locking tabs provide positive attach­ment to common T-bar systems. Self-centering feature simplifies installation in
24" O.C. grid systems. Attaches to steel or wood joists without accessories.

10.Ballast: Electronic 120V or 277V. Magnetic dual voltage (120V & 277V).
Accessible from below for inspection and/or replacement without tools.

11.Junction Box: 0.048" (18-ga.) galvanized steel. UL listed for 8 No. 12 AWG,
90°C through branch circuit conductors; allows inspection from below.

12.Thermal Protector: (Not Shown) Meets NEC and UL requirements. Do not
install insulation above nor within 3" (76mm) of any part of the luminaire.

Electrical (cont)

Ballast ANSI Code Voltage Max. Amps Input Watts

70W MH M98/M143 120/277 0.67/0.28 78

100W MH M90/M140 120/277 0.90/0.43 110
Magnetic Ballast: 120/277V dual voltage, 60 Hz., encased and potted,
HX-HPF circuit type, high power factor, sound rating “B”, -20°F minimum starting
temperature, Type 1 Outdoor rating.

Ballast ANSI Code Voltage Max. Amps Input Watts

70W MH M98/M143 120/277 1.90/0.80 94

100W MH M90/M140 120/277 2.40/1.10 125

Options and Accessories

Auxiliary: Add suffix Ato Frame-In Kit and Reflector Trim. See Spec.Sheet ”A“.
Emergency Lamp: Add suffix Eto Reflector Trim and Frame In Kit. See

Spec.Sheet “E”.

Slope Ceiling Adapters: See Specification Sheet SCA.
Fuse (magnetic ballast): Add suffix F1 or F2 to Frame In Kit (F1=120V, F2=277V)
Chicago Plenum: Consult Factory.

Labels

UL (Suitable for Damp Locations), CSA (magnetic ballast only), I.B.E.W.
For 100W electronic, install fixtures with minimum spacing: 2 feet from
center-to-center of adjacent luminaries; 1/2 inch from top of luminaire to over­head building member; 1 foot from luminaire center to side building member.

Job Information Type:

Job Name:
Cat. No.:

Lamp(s):
Notes:

Electrical

Electronic Ballast: 120V or 277V, 50/60 Hz., encased, high-power factor, T.H.D.

<15%, thermally and transient protected, RMI / RFI complies with FCC Part 18
non-consumer equipment, shut-down circuit at end of lamp life, sound rating "A",

-5°F minimum starting temperature, Type 1 outdoor rating.

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • AO5O4

Calculite

®

HID Downlight C7E17VW

Page 2 of 2 7" Aperture, ED17 (Enclosed), Ceramic Metal halide, Wide Beam

70W ED17 (ENCLOSED) PHILIPS CMH, LUMEN RATING = 6000 LMS, AROMAT ELECTRONIC BALLAST, CL FINISH REFLECTOR TRIM

CANDLEPOWER DISTRIBUTION

750

1,500

2,250

3,000

** EFFICIENCY = 61.9% ** CERTIFIED TEST REPORT NO. 2412FR, DATE: JAN 12, 2004
SC = 1.0 COMPUTED BY LSI PROGRAM **TEST-LITE**

100W ED17 (ENCLOSED) PHILIPS CMH, LUMEN RATING = 9000 LMS, AROMAT ELECTRONIC BALLAST, CL FINISH REFLECTOR TRIM

CANDLEPOWER DISTRIBUTION

1,125

2,250

3,375

4,500

** EFFICIENCY = 61.8% ** CERTIFIED TEST REPORT NO. 2509FR , DATE: MAR 3, 2004

SC = 1.0 COMPUTED BY LSI PROGRAM **TEST-LITE**

ANGLE MEAN CP LUMENS

0 3077

5 3138 298
10 3124
15 3095 861
20 2830
25 2407 1111

60°

30 1960
35 1523 949
40 1036
45 609 461
50 130
55 7 33
60 1
65 0 0
70 0
75 0 0
80 0
85 0 0
90 0

30°

ANGLE MEAN CP LUMENS

0 4614

5 4705 446
10 4685
15 4641 1291
20 4244
25 3609 1667

60°

30 2940
35 2283 1423
40 1553
45 912 691
50 195
55 9 48
60 1
65 0 0
70 0
75 0 0
80 0
85 0 0
90 0

30°

LUMINANCE SUMMARY CD. / SQ. M.

ANGLE MEAN CD/SQ M

45 34796
55 475
65 0
75 0
85 0

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 2269 37.83 61.13
0-40 3218 53.64 86.69
0-60 3712 61.87 99.99

0-90 3712 61.88 100
40-90 494 8.24 13.31
60-90 0 0 0.01

90-180 0 0 0

0-180 3712 61.88 100

LUMINANCE SUMMARY CD. / SQ. M.

ANGLE MEAN CD/SQ M

45 52135
55 639
65 0
75 0
85 0

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 3403 37.82 61.15
0-40 4826 53.62 86.71
0-60 5565 61.84 100

0-90 5565 61.84 100
40-90 739 8.22 13.29
60-90 0 0 0

90-180 0 0 0

0-180 5565 61.84 100

Coefficients of Utilization

CEILING 80% 70% 50% 30%

WALL 70 50 30 10 50 10 50 10 50 10 0

Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%

RCR

0 .74 .74 .74 .74 .72 .72 .69 .69 .66 .66 .62
1 .71 .69 .68 .66 .68 .65 .65 .63 .63 .61 .58
2 .67 .65 .63 .61 .64 .60 .62 .59 .60 .57 .55
3 .64 .61 .58 .56 .60 .55 .58 .55 .57 .54 .52
4 .61 .57 .54 .52 .57 .51 .55 .51 .54 .50 .49
5 .59 .54 .50 .48 .53 .48 .52 .47 .51 .47 .46
6 .56 .51 .47 .45 .50 .45 .49 .44 .48 .44 .43
7 .53 .47 .44 .42 .47 .41 .46 .41 .45 .41 .40
8 .50 .44 .41 .38 .44 .38 .43 .38 .43 .38 .37
9 .47 .42 .38 .35 .41 .35 .41 .35 .40 .35 .34
10 .45 .39 .35 .33 .39 .33 .38 .33 .38 .33 .32

LUMINAIRE INPUT WATTS = 78.0

Coefficients of Utilization

CEILING 80% 70% 50% 30%

WALL 70 50 30 10 50 10 50 10 50 10 0

Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%

RCR

0 .74 .74 .74 .74 .72 .72 .69 .69 .66 .66 .62
1 .70 .69 .67 .66 .68 .65 .65 .63 .63 .61 .58
2 .67 .65 .63 .61 .64 .60 .62 .59 .60 .57 .55
3 .64 .61 .58 .56 .60 .55 .58 .54 .57 .54 .52
4 .61 .57 .54 .52 .57 .51 .55 .51 .54 .50 .49
5 .58 .54 .50 .48 .53 .48 .52 .47 .51 .47 .46
6 .56 .51 .47 .45 .50 .45 .49 .44 .48 .44 .43
7 .53 .47 .44 .42 .47 .41 .46 .41 .45 .41 .40
8 .50 .44 .41 .38 .44 .38 .43 .38 .43 .38 .37
9 .47 .42 .38 .35 .41 .35 .41 .35 .40 .35 .34
10 .45 .39 .35 .33 .39 .33 .38 .33 .38 .33 .32

LUMINAIRE INPUT WATTS = 110.0
