Lightolier C6P30L User Manual

Calculite

54321

14 1/4"

10"

8 1/2"

IC AirSeal

C6AIC

Non-IC AirSeal

C6A120

Non-IC

C6120

7 3/4"

9 1/2" DIA.

20 1/4" O.A.

13 3/4" TO 24"

9 1/2" DIA.

14 3/8" O.A.

7 3/4"

13"

12 3/8" O.A.

IIncluded)

(Mounting Bars

Adjustment

IIncluded)

(Mounting Bars

Adjustment

13 3/4" TO 24"

54231

C6P30LCLW / C6A120

C6P30LCLW / C6120 or

* 8 3/4" min. is for up to 3/4" thick ceiling.

5 5/8" Dia.

7 3/16" Dia.

9 1/4"max.

8 3/4"min.*

1 1/4" Max. Ceiling Thk.

C6P30LCLW / C6AIC

9 1/4"max.

1/2" to 1" Max. Ceiling Thk.

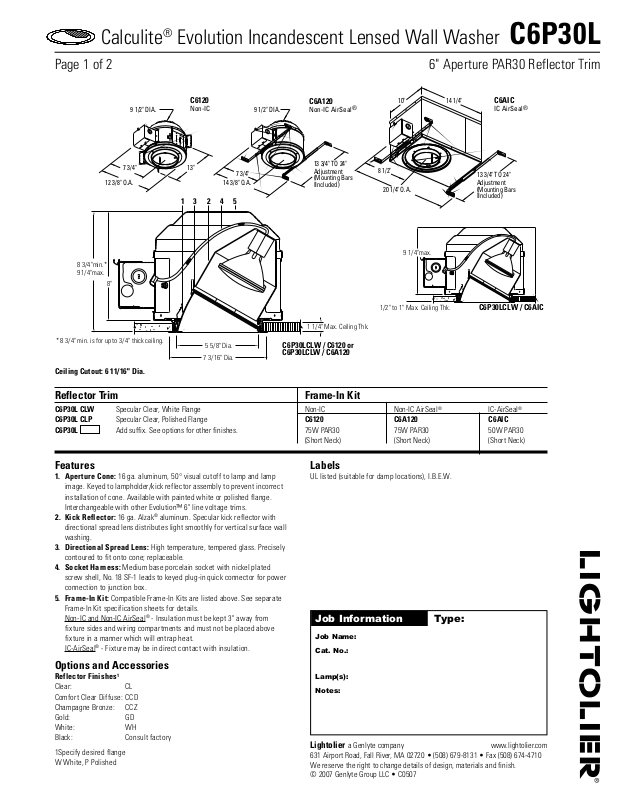

Evolution Incandescent Lensed Wall Washer C6P30L

Page 1 of 2 6" Aperture PAR30 Reflector Trim

Ceiling Cutout: 6 11/16" Dia.

Reflector Trim Frame-In Kit

C6P30L CLW Specular Clear, White Flange Non-IC Non-IC AirSeal® IC-AirSeal C6P30L CLP Specular Clear, Polished Flange C6120 C6A120 C6AIC C6P30L Add suffix. See options for other finishes. 75W PAR30 75W PAR30 50W PAR30 (Short Neck) (Short Neck) (Short Neck)

Features

1. Aper ture Cone: 16 ga. aluminum, 50° visual cutoff to lamp and lamp

image. Keyed to lampholder/kick reflector assembly to prevent incorrect installation of cone. Available with painted white or polished flange. Interchangeable with other Evolution™ 6" line voltage trims.

2. Kick Reflector: 16 ga. Alzak® aluminum. Specular kick reflector with directional spread lens distributes light smoothly for vertical surface wall washing.

3. Directional Spread Lens: High temperature, tempered glass. Precisely contoured to fit onto cone; replaceable.

4. Socket Harness: Medium base porcelain socket with nickel plated screw shell, No. 18 SF-1 leads to keyed plug-in quick connector for power connection to junction box.

5. Frame-In Kit: Compatible Frame-In Kits are listed above. See separate Frame-In Kit specification sheets for details. Non-IC and Non-IC AirSeal® - Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat. IC-AirSeal® - Fix ture may be in direct contact with insulation.

Options and Accessories

Reflector Finishes

Clear: CL Comfort Clear Diffuse: CCD Champagne Bronze: CCZ Gold: GD White: WH Black: Consult factory

1Specify desired flange W White, P Polished

Labels

UL listed (suitable for damp locations), I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte company www.lightolier.com

Calculite

54321

EXAMPLE: With multiple 75W PAR30 FL clear units located 2’ from wall and 3’ on center, the illumination on the wall 3’ down from the ceiling is 29 f.c. beneath and 18 f.c. between fixtures.

29 f.c.

18 f.c.

5˚5˚

25˚25˚

45˚45˚

Evolution Incandescent Lensed Wall Washer C6P30L

Page 2 of 2 6" Aperture PAR30 Reflector Trim

Lighting Data

Candlepower Curve

75W PAR30FL

Down Wall

Report 0927FR

Footcandles on Wall From Multiple Units - 75W PAR30 FL

Units 2 Feet From Wall

2’ 3’

1’ 24 13 24 13 6 13 2’ 52 38 52 28 15 28

3’ 39 34 39 29 18 29 4’ 25 23 25 20 16 20

5’ 16 16 16 14 12 14 6’ 11 11 11 10 9 10

7’ 8 8 8 7 7 7 8’ 6 6 6 5 5 5

Distance From Ceiling, Ft.Distance From Ceiling, Ft.

9’ 4 4 4 4 4 4

Efficiency = 49.5%

Units 3 Feet From Wall

2’ 3’

1’ 4 3 4 4 2 4 2’ 10 8 10 9 5 9

3’ 15 12 15 13 8 13 4’ 17 14 17 14 10 15

5’ 15 14 15 13 10 13 6’ 12 12 12 10 9 10

7’ 10 10 10 8 7 8 8’ 8 8 8 6 6 6

9’ 6 6 6 5 5 5

For 50W Par30FL, Multiply f.c.’s by 0.55.

Footcandles values are averaged and rounded off and are based on a minimum of five units. For fixture-to-wall distances other than those shown.

Use maximum of 1 to 1 spacing (distance between fixtures not more than distance to wall) for best results
