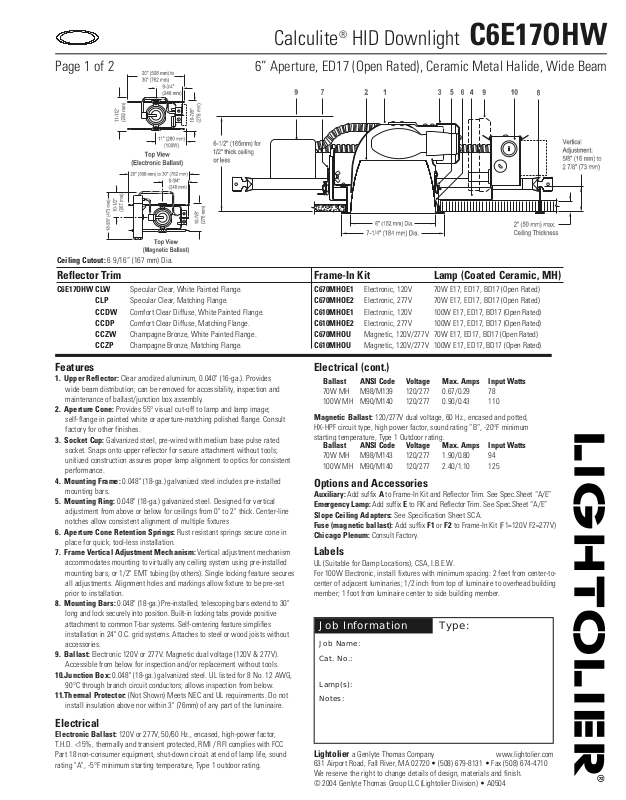

Lightolier C6E17OHW User Manual

Calculite

®

HID Downlight C6E17OHW

Page 1 of 2 6” Aperture, ED17 (Open Rated), Ceramic Metal Halide, Wide Beam

Ceiling Cutout: 6 9/16” (167 mm) Dia.

Reflector Trim Frame-In Kit Lamp (Coated Ceramic, MH)

C6E17OHW CLW Specular Clear, White Painted Flange.

CLP Specular Clear, Matching Flange.
CCDW Comfort Clear Diffuse, White Painted Flange.
CCDP Comfort Clear Diffuse, Matching Flange.
CCZW Champagne Bronze, White Painted Flange.
CCZP Champagne Bronze, Matching Flange.

C670MHOE1 Electronic, 120V 70W E17, ED17, BD17 (Open Rated)
C670MHOE2 Electronic, 277V 70W E17, ED17, BD17 (Open Rated)
C610MHOE1 Electronic, 120V 100W E17, ED17, BD17 (Open Rated)
C610MHOE2 Electronic, 277V 100W E17, ED17, BD17 (Open Rated)
C670MHOU Magnetic, 120V/277V 70W E17, ED17, BD17 (Open Rated)
C610MHOU Magnetic, 120V/277V 100W E17, ED17, BD17 (Open Rated)

Features

1. Upper Reflector: Clear anodized aluminum, 0.040" (16-ga.). Provides

wide beam distribution; can be removed for accessibility, inspection and
maintenance of ballast/junction box assembly.

2. Aperture Cone: Provides 55° visual cut-off to lamp and lamp image;

self-flange in painted white or aperture-matching polished flange. Consult
factory for other finishes.

3. Socket Cup: Galvanized steel, pre-wired with medium base pulse rated

socket. Snaps onto upper reflector for secure attachment without tools;
unitized construction assures proper lamp alignment to optics for consistent
performance.

4. Mounting Frame: 0.048" (18-ga.) galvanized steel includes pre-installed

mounting bars.

5. Mounting Ring: 0.048" (18-ga.) galvanized steel. Designed for vertical

adjustment from above or below for ceilings from 0" to 2" thick. Center-line
notches allow consistent alignment of multiple fixtures

6. Aperture Cone Retention Springs: Rust resistant springs secure cone in

place for quick, tool-less installation.

7. Frame Vertical Adjustment Mechanism: Vertical adjustment mechanism

accommodates mounting to virtually any ceiling system using pre-installed
mounting bars, or 1/2" EMT tubing (by others). Single locking feature secures
all adjustments. Alignment holes and markings allow fixture to be pre-set
prior to installation.

8. Mounting Bars: 0.048" (18-ga.) Pre-installed, telescoping bars extend to 30"

long and lock securely into position. Built-in locking tabs provide positive
attachment to common T-bar systems. Self-centering feature simplifies
installation in 24" O.C. grid systems. Attaches to steel or wood joists without
accessories.

9. Ballast: Electronic 120V or 277V. Magnetic dual voltage (120V & 277V).

Accessible from below for inspection and/or replacement without tools.

10.Junction Box: 0.048" (18-ga.) galvanized steel. UL listed for 8 No. 12 AWG,

90°C through branch circuit conductors; allows inspection from below.

11.Thermal Protector: (Not Shown) Meets NEC and UL requirements. Do not

install insulation above nor within 3" (76mm) of any part of the luminaire.

Electrical (cont.)

Ballast ANSI Code Voltage Max. Amps Input Watts

70W MH M98/M139 120/277 0.67/0.29 78
100W MH M90/M140 120/277 0.90/0.43 110

Magnetic Ballast: 120/277V dual voltage, 60 Hz., encased and potted,
HX-HPF circuit type, high power factor, sound rating “B”, -20°F minimum
starting temperature, Type 1 Outdoor rating.

Ballast ANSI Code Voltage Max. Amps Input Watts

70W MH M98/M143 120/277 1.90/0.80 94
100W MH M90/M140 120/277 2.40/1.10 125

Options and Accessories

Auxiliary: Add suffix A to Frame-In Kit and Reflector Trim. See Spec.Sheet “A/E”
Emergency Lamp: Add suffix E to FIK and Reflector Trim. See Spec.Sheet “A/E”
Slope Ceiling Adapters: See Specification Sheet SCA.
Fuse (magnetic ballast): Add suffix F1 or F2 to Frame-In Kit (F1=120V F2=277V)
Chicago Plenum: Consult Factory.

Labels

UL (Suitable for Damp Locations), CSA, I.B.E.W.
For 100W Electronic, install fixtures with minimum spacing: 2 feet from center-to­center of adjacent luminaries; 1/2 inch from top of luminaire to overhead building
member; 1 foot from luminaire center to side building member.

Job Information Type:

Job Name:
Cat. No.:

Lamp(s):
Notes:

Electrical

Electronic Ballast: 120V or 277V, 50/60 Hz., encased, high-power factor,

T.H.D. <15%, thermally and transient protected, RMI / RFI complies with FCC
Part 18 non-consumer equipment, shut-down circuit at end of lamp life, sound
rating "A", -5°F minimum starting temperature, Type 1 outdoor rating.

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • A0504

Calculite

®

HID Open Downlight C6E17OHW

Page 2 of 2 6” Aperture, ED17 (Open Rated), Ceramic Metal Halide, Wide Beam

70W ED17 OPEN RATED PHILIPS CMH LAMP, LUMEN RATING = 5700 LMS, ELECTRONIC AROMAT BALLAST, CL FINISH TRIM

CANDLEPOWER DISTRIBUTION

ANGLE 0° 45° 90°

0 2199 2199 2199
5 2316 2307 2295

625

1,250

1,875

2,500

** EFFICIENCY = 57.3% ** CERTIFIED TEST REPORT NO. 2380FR, DATE: NOV 22, 2003
SC = 1.2 COMPUTED BY LSI PROGRAM **TEST-LITE**

10 2239 2285 2376
15 2254 2332 2445
20 2217 2409 2409
25 1925 2146 2280

60°

30 1631 1837 1973
35 1255 1477 1508
40 842 1004 1050
45 526 628 686
50 177 251 255
55 20 23 28
60 6 6 6
65 2 3 3
70 1 1 2
75 0 1 0
80 0 1 0
85 0 0 0
90 0 0 0

30°

100W ED17 OPEN RATED CMH LAMP, LUMEN RATING = 8500 LMS, ELECTRONIC AROMAT BALLAST, CL FINISH TRIM

CANDLEPOWER DISTRIBUTION

ANGLE 0° 45° 90°

0 3063 3063 3063
5 3152 3102 3117

875

1,750

2,625

3,500

** EFFICIENCY = 53.8% ** CERTIFIED TEST REPORT NO. 2381FR, DATE: MAR 21, 2004
SC = 1.3 COMPUTED BY LSI PROGRAM **TEST-LITE**

10 2979 3043 3239
15 3014 3150 3364
20 3044 3348 3351
25 2675 2970 3248

60°

30 2276 2582 2824
35 1783 2072 2163
40 1214 1447 1530
45 760 915 1005
50 271 361 397
55 24 27 42
60 3 5 6
65 1 2 1
70 0 0 0
75 0 0 0
80 0 0 0
85 0 0 0
90 0 0 0

30°

LUMINANCE SUMMARY - CD. / SQ. M.

ANGLE 0° 45° 90°

45 40771 48897 53373
55 1947 2203 2684
65 291 382 337
75 73 219 73
85 0 0 0

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 1849 32.45 56.6
0-40 2728 47.86 83.47
0-60 3263 57.26 99.87

0-90 3268 57.34 100
40-90 540 9.48 16.53
60-90 4 0.08 0.13

90-180 0 0 0

0-180 3268 57.34 100

LUMINANCE SUMMARY - CD. / SQ. M.

ANGLE 0° 45° 90°

45 58940 71209 78198
55 2321 2601 4064
65 146 294 147
75000
85 0 0 0

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 2550 30.01 55.79

0-40 3796 44.66 83.04

0-60 4569 53.76 99.95

0-90 4571 53.79 100
40-90 775 9.12 16.96
60-90 2 0.02 0.05

90-180 0 0 0

0-180 4571 53.79 100

Coefficients of Utilization

CEILING 80% 70% 50% 30%

WALL 70 50 30 10 50 10 50 10 50 10 0

RCR

Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%

0 .68 .68 .68 .68 .67 .67 .64 .64 .61 .61 .57
1 .65 .64 .62 .61 .63 .60 .60 .58 .58 .57 .54
2 .62 .60 .58 .56 .59 .55 .57 .54 .55 .53 .51
3 .59 .56 .53 .51 .55 .50 .53 .50 .52 .49 .47
4 .56 .52 .49 .47 .52 .47 .50 .46 .49 .46 .44
5 .53 .49 .45 .43 .48 .43 .47 .43 .46 .42 .41
6 .51 .46 .42 .40 .45 .40 .44 .40 .44 .39 .38
7 .48 .43 .39 .37 .42 .37 .41 .36 .41 .36 .35
8 .45 .40 .36 .34 .39 .34 .39 .34 .38 .33 .32
9 .42 .37 .33 .31 .36 .31 .36 .31 .35 .31 .30

10 .40 .34 .31 .28 .34 .28 .33 .28 .33 .28 .27

LUMINAIRE INPUT WATTS = 78

Coefficients of Utilization

CEILING 80% 70% 50% 30%

WALL 70 50 30 10 50 10 50 10 50 10 0

Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%

RCR

0 .64 .64 .64 .64 .63 .63 .60 .60 .57 .57 .54
1 .61 .60 .58 .57 .59 .56 .56 .55 .54 .53 .51
2 .58 .56 .54 .52 .55 .51 .53 .50 .52 .49 .47
3 .55 .52 .50 .48 .51 .47 .50 .46 .49 .46 .44
4 .53 .49 .46 .44 .48 .44 .47 .43 .46 .43 .41
5 .50 .46 .42 .40 .45 .40 .44 .40 .43 .39 .38
6 .47 .43 .39 .37 .42 .37 .41 .37 .41 .37 .36
7 .45 .40 .36 .34 .39 .34 .39 .34 .38 .34 .33
8 .42 .37 .34 .31 .36 .31 .36 .31 .35 .31 .30
9 .40 .34 .31 .29 .34 .29 .33 .28 .33 .28 .28

10 .37 .32 .28 .26 .32 .26 .31 .26 .31 .26 .25

LUMINAIRE INPUT WATTS = 110

Job Information Type:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • A0504
