Lightolier C4X4MRW User Manual

Calculite

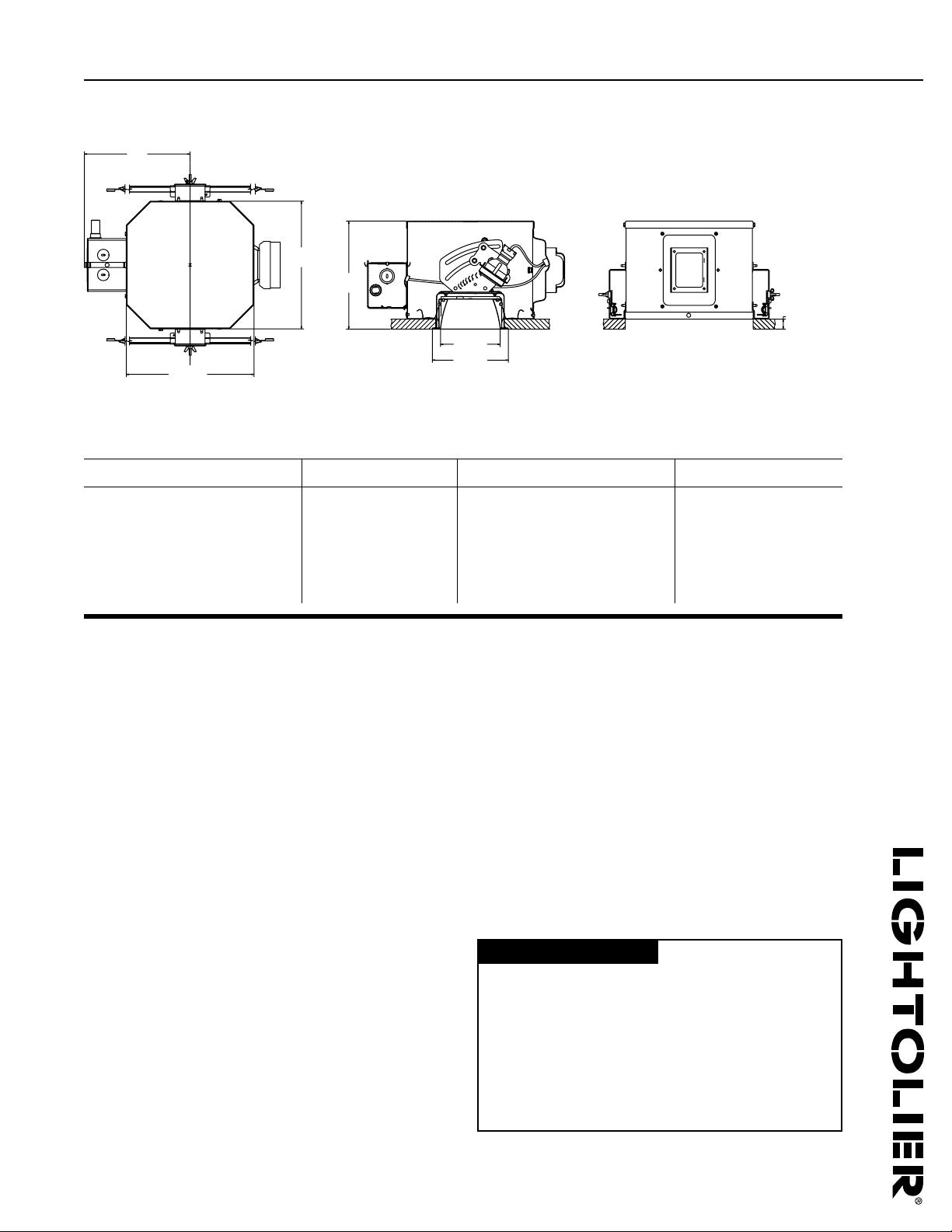

8.16"

9.66"

8"

9.66"

2"
Max. Ceiling
Thickness

12"

®

Matrix Low Voltage Lensed Adj. Accent C4X4MRW

Page 1 of 2 4½" X 4½" Square Aperture (1) MR16 Low Voltage

5 6 9 8 7 1 2 3 104

Ceiling Cutout: 5 1/4" x 5 1/4 " (130 mm x 130mm) Dia.

Ordering Information

Frame-In Kits Reflector Trims Finish/Flange Lamp

C4X4LVMU Magnetic 120/277V
C4X4LVE1 Electronic 120V
C4X4LVE 2 Electronic 277V

C4X4MRWCLW
C4X4MRWCLP
C4X4MRWCCLW
C4X4MRWCCLP
C4X4MRWCCDW
C4X4MRWCCDP
C4X4MRWWHW

Specular Clear/White
Specular Clear/Polished
Comfort Clear/White
Comfort Clear/Polished
Comfort Clear Diffuse/White
Comfort Clear Diffuse/Polished
White/ White

(1) 12V MR16 Type Lamp
65W Max or IR 37W Max

Features

1. Reflector Trim: Available with integral flange in painted white or polished

to match inside of cone.

2. Lamp Holder/Trim Adjustment Assembly: Unitized optics ensure

alignment of lamp and aperture cone regardless of ceiling thickness.
Patented EZ Aim™ gear-driven adjustment features an optimized lamp path
to maximize light output at tilt angles up to 45°. Aiming indicator ensures
accurate lamp positioning. Prismatic lens ships standard. Adjust trim kit
vertically to accommodate up to 2" thick ceiling.

3. Socket: Ceramic body with mica cover, GX5.3 (MR-16) base.

4. Frame Housing: Steel, 0.029" (22-Ga.), matte black finish.

5. Frame Vertical Adjustment Mechanism: Accommodates mounting to

virtually any ceiling system using pre-installed mounting bars, or ½" EMT
tubing (by others). Single locking feature secures all adjustments. Alignment
holes and markings allow fixture to be pre-set prior to installation. Final
adjustment can be made from below from inside the fixture.

6. Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping

bars extend to 30" long and lock securely into position. Built-in locking tabs
provide positive attachment to common T-bar systems. Self-centering feature
simplifies installation in 24" O.C. grid systems. Attaches to steel or wood
joists without accessories.

7. Retention Springs: Rust resistant springs secure trim for quick, tool-less

installation.

8. Junction Box: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG,

90°C through branch circuit conductors. Allows inspection from below.

9. Thermal Protector: Meets NEC and UL requirements. Do not install

insulation above nor within 3" (76mm) of any part of the luminaire.

10. Transformer: Replaceable from below. Magnetic: 120/277V 60 Hz. Dual-

voltage, core & coil. Electronic: 120V or 277V 50/60 Hz., regulated lamp
voltage, HPF, EMI and circuit protections, thermal auto-reset, quiet operation.

Options and Accessories

Accepts two optical accessories
2" diameter color filters/specialty filters: ADF2/AF2
2" diameter louver: AL2HC

Labels

UL, cUL (Suitable for Wet Locations)

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • B0807

Calculite

750

1500

2250

3000

0°

30°

60°

90°

1400

0°

30°

60°

90°

1050

700

350

1400

0°

30°

60°

90°

1050

700

350

®

Matrix Low Voltage Lensed Adj. Accent C4X4MRW

Page 2 of 2 4½" X 4½" Square Aperture (1) MR16 Low Voltage

(FC) is initial footcandles
at center of beam. Beam
length (L) and beam width
(W) are to where the
candlepower is reduced
to 50% of the center beam
candlepower. (C) is the
distance to the center of
the beam.

4 ½" x 4 ½" Aperture 50W MR16 - 15°

An gle C P

0 87
5 136
10 278
15 713
20 1478
25 25 37
30 32 28
35 25 77
40 128 9
45 420
50 119
55 12
60 0
65 0
70 0
75 0
80 0
85 0
90 0

50W MR 16 15° SP

Lamp @ 30° Vertical Tilt

Lumen Rating = 8 00 LMS.
CBCP = 3228 CD
Beam Angle = 15°
Test Report No. 3500FR

30° Aiming Angle - Horizontal Surface
D C FC L W

6' 3.5' 58 2.1' 1.8'
8' 4.6' 33 2.8' 2.4'
10' 5.8' 21 3.5' 3.0'
12' 6.9' 15 4.2' 3.6'
15' 8.7' 9 5.3' 4.6'

30° Aiming Angle - Vertical Surface
D C FC L W

2' 3.5' 101 2.2' 1.1'
3' 5.2' 45 3.3' 1.6'
4' 6.9' 25 4.4' 2.1'
6' 10.4' 11 6.7' 3.2'
8' 13.9' 6 8.9' 4.2'

4 ½" x 4 ½" Aperture 50W MR16 - 25°

An gle C P

0 161
5 29 9
10 522
15 835
20 120 4
25 148 5
30 155 3
35 139 2
40 9 99
45 487
50 115
55 6
60 1
65 1
70 0
75 0
80 0
85 0
90 0

50W MR 16 25° FL

Lamp @ 30° Vertical Tilt

Lumen Rating = 8 00 LMS.
CBCP = 1553 CD
Beam Angle = 25°
Test Report No. 3501FR

30° Aiming Angle - Horizontal Surface
D C FC L W

6' 3.5' 28 3.6' 3.1'
8' 4.6' 16 4.8' 4.1'
10' 5.8' 10 6.0' 5.1'
12' 6.9' 7 7.2' 6.1'
15' 8.7' 4 9.0' 7.7'

30° Aiming Angle - Vertical Surface
D C FC L W

2' 3.5' 49 4.2' 1.8'
3' 5.2' 22 6.2' 2.7'
4' 6.9' 12 8.3' 3.5'
6' 10.4' 5 12.5' 5.3'
8' 13.9' 3 16.6' 7.1'

4 ½" x 4 ½" Aperture 50W MR16 - 40°

An gle C P

0 144
5 2 77
10 516
15 823
20 1107
25 1287
30 1320
35 1219
40 957
45 526
50 133
55 4
60 1
65 0
70 0
75 0
80 0
85 0
90 0

50W MR 16 40° FL

Lamp @ 30° Vertical Tilt

Lumen Rating = 8 00 LMS.
CBCP = 1320 CD
Beam Angle = 30°
Test Report No. 3502FR

30° Aiming Angle - Horizontal Surface
D C FC L W

6' 3.5' 24 5.2' 4.4'
8' 4.6' 13 7.0' 5.8'
10' 5.8' 9 8.7' 7.3'
12' 6.9' 6 10.4' 8.7'
15' 8.7' 4 13.0' 10.9'

30° Aiming Angle - Vertical Surface
D C FC L W

2' 3.5' 41 7.2' 2.5'
3' 5.2' 18 10.8' 3.8'
4' 6.9' 10 14.4' 5.0'
6' 10.4' 5 21.6' 7.6'
8' 13.9' 3 28.8' 10.1'

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • B0807

Calculite

8.16"

9.66"

8"

9.66"

2"
Max. Ceiling
Thickness

5.75"

4.5"

®

Matrix HID Lensed Adj. Accent C4X4MRW

Page 1 of 1 4½" X 4½" Square Aperture (1) 20W CMH MR16

Ceiling Cutout: 5 1/4" x 5 1/4 " (130 mm x 130mm) Dia.

Ordering Information

Frame-In Kits Reflector Trims Finish/Flange Lamp

C4X420MREU Electronic 120/277V

C4X4MRWCLW
C4X4MRWCLP
C4X4MRWCCLW
C4X4MRWCCLP
C4X4MRWCCDW
C4X4MRWCCDP
C4X4MRWWHW

Specular Clear/White
Specular Clear/Polished
Comfort Clear/White
Comfort Clear/Polished
Comfort Clear Diffuse/White
Comfort Clear Diffuse/Polished
White/ White

(1) 20W MR16 CMH GXIC Base

Features

1. Reflector Trim: 55° physical and reflected cutoff. Available with integral

flange painted white or polished to match inside of cone.

2. Lamp Holder/Trim Adjustment Assembly: Unitized optics ensure

alignment of lamp and aperture cone regardless of ceiling thickness.
Patented EZ Aim™ gear-driven adjustment features an optimized lamp path
to maximize light output at tilt angles up to 45°. Aiming indicator ensures
accurate lamp positioning. Solite lens ships standard. Adjust trim kit
vertically to accommodate up to 2" thick ceiling.

3. Socket: Twist and lock base. 5kV (600V) pulse rated PPS, black T240 body

socket with nickel-plated contacts. 18 AWG silicone leads with fiberglass
outer sleeve.

4. Frame Housing: Steel, 0.029" (22-Ga.), matte black finish. Removable cover

for top relamping.

5. Frame Vertical Adjustment Mechanism: Accommodates mounting to

virtually any ceiling system using pre-installed mounting bars, or ½" EMT
tubing (by others). Single locking feature secures all adjustments. Alignment
holes and markings allow fixture to be pre-set prior to installation. Final
adjustment can be made from below from inside the fixture.

6. Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping

bars extend to 30" long and lock securely into position. Built-in locking tabs
provide positive attachment to common T-bar systems. Self-centering feature
simplifies installation in 24" O.C. grid systems. Attaches to steel or wood
joists without accessories.

7. Retention Springs: Rust resistant springs secure trim for quick, tool-less

installation.

8. Ballast/Cover Assembly: Accessible from below and removable without

tools for inspection and ballast replacement.

9. Junction Box: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG,

90°C through branch circuit conductors. Allows inspection from below.

10. Thermal Protector: Meets NEC and UL requirements. Do not install

insulation above nor within 3" (76mm) of any part of the luminaire.

11. Electronic Ballast: 120 or 277V, 50/60 Hz., encased, high power factor

>0.99, THD <10%, thermally and transient protected, RMI/RFI complies with
FCC Part 18 non-consumer limits, shut-down at end of lamp life, sound rating
“A", Minimum starting temperature -30°, Type 1 Outdoor rating.

Features (continued)

Ballast ANSI Code Voltage Max. Amps Input Watts

20W MH M156 120/277V 0.20/0.09 22

Options and Accessories

Accepts one optical accessory
2" diameter color filter/specialty filter: ADF2/AF2
2" diameter louver: AL2HC

Labels

UL, cUL (Suitable For Wet Locations)

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • A0507

Calculite

2400

1800

1200

600

30°

60°

500

1000

1500

2000

30°

60°

1200

900

600

300

30°

60°

®

Matrix HID Lensed Adj. Accent C4X4MRW

Page 2 of 2 4½" X 4½" Square Aperture (1) 20W CMH MR16

(FC) is initial footcandles
at center of beam. Beam
length (L) and beam width
(W) are to where the
candlepower is reduced
to 50% of the center beam
candlepower. (C) is the
distance to the center of
the beam.

4 ½" x 4 ½" Aperture 20W CMH MR16 - 12°

An gle C P
0 117

5 166
10 297
15 644
20 1352
25 2138
30 2595
35 2154
40 1201
45 476
50 159
55 26
60 0
65 0
70 0
75 0
80 0
85 0
90 0

20W G.E.HID MR16 12° SP,
GX10 BASE

Lamp @ 30° Vertical Tilt

Lumen Rating = 1000 LMS.
CBCP = 2595 CD
Beam Angle = 16°
Test Report No. 3421FR

30° Aiming Angle - Horizontal Surface
D C FC L W

6' 3.5' 47 1.7' 1.5'
8' 4.6' 26 2.3' 1.9'
10' 5.8' 17 2.8' 2.4'
12' 6.9' 12 3.4' 2.9'
14' 8.1' 9 3.9' 3.4'

30° Aiming Angle - Vertical Surface
D C FC L W

2' 3.5' 81 1.7' 0.8'
3' 5.2' 36 2.6' 1.3'
4' 6.9' 20 3.5' 1.7'
5' 8.7' 13 4.3' 2.1'
6' 10.4' 9 5.2' 2.5'

4 ½" x 4 ½" Aperture 20W CMH MR16-25°

An gle C P

0 165
5 210
10 335
15 628
20 1107
25 1630
30 1914
35 1730
40 1075
45 453
50 104
55 7
60 2
65 1
70 1
75 1
80 1
85 1
90 1

4 ½" x 4 ½" Aperture 20W CMH MR16-40°

An gle C P
0 134

5 241
10 417
15 676
20 940
25 1128
30 1214
35 1164
40 928
45 541
50 225
55 4 3
60 3
65 0
70 1
75 1
80 0
85 1
90 0

20W G.E.HID MR16 40° FL,
GX10 BASE

Lamp @ 30° Vertical Tilt

Lumen Rating = 1000 LMS.
CBCP = 1914 CD
Beam Angle = 22°
Test Report No. 3418FR

20W G.E.HID MR16 40° FL,
GX10 BASE

Lamp @ 30° Vertical Tilt

Lumen Rating = 1000 LMS.
CBCP = 1214 CD
Beam Angle = 30°
Test Report No. 3416FR

30° Aiming Angle - Horizontal Surface
D C FC L W

6' 3.5' 35 3.1' 2.7'
8' 4.6' 19 4.2' 3.6'
10' 5.8' 12 5.2' 4.5'
12' 6.9' 9 6.3' 5.4'
14' 8.1' 6 7.3' 6.3'

30° Aiming Angle - Vertical Surface
D C FC L W

2' 3.5' 60 3.5' 1.6'
3' 5.2' 27 5.3' 2.3'
4' 6.9' 15 7.0' 3.1'
5' 8.7' 10 8.8' 3.9'
6' 10.4' 7 10.5' 4.7'

30° Aiming Angle - Horizontal Surface
D C FC L W

6' 3.5' 22 4.4' 3.7'
8' 4.6' 12 5.9' 5.0'
10' 5.8' 8 7.3' 6.2'
12' 6.9' 5 8.8' 7.4'
14' 8.1' 4 10.2' 8.7'

30° Aiming Angle - Vertical Surface
D C FC L W

2' 3.5' 38 5.5' 2.1'
3' 5.2' 17 8.2' 3.2'
4' 6.9' 9 10.9' 4.3'
5' 8.7' 6 13.7' 5.4'
6' 10.4' 4 16.4' 6.4'

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • A0507
