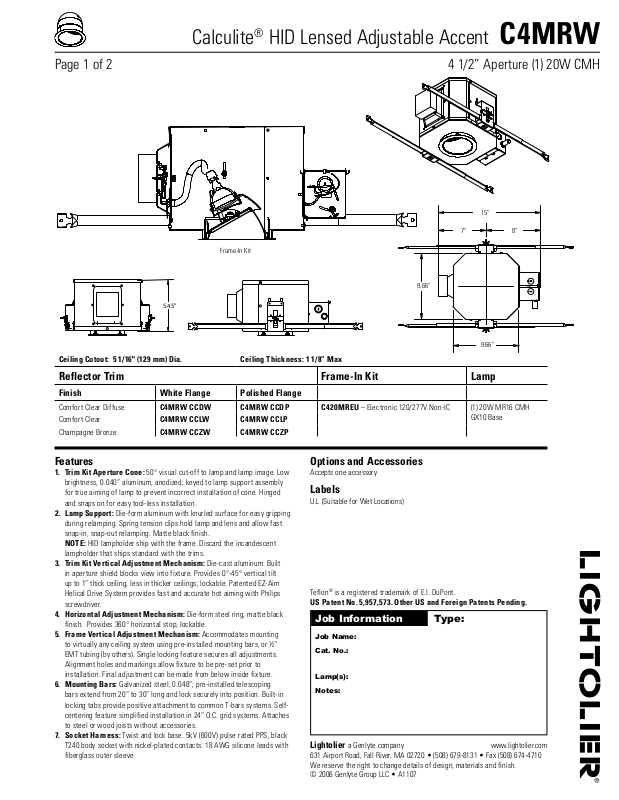

Lightolier C4MRW User Manual

Calculite

15"

7"

8"

9.66"

9.66"

5.45"

Frame-In Kit

®

HID Lensed Adjustable Accent C4MRW

Page 1 of 2 4 1/2” Aperture (1) 20W CMH

Ceiling Cutout: 5 1/16 " (12 9 mm) Dia. Ceiling Thickness: 1 1/8” Max

Reflector Trim Frame-In Kit Lamp

Finish White Flange Polished Flange

Comfort Clear Diffuse

Comfort Clear

Champagne Bronze

Features

1. Trim Kit Aperture Cone: 50° visual cut-off to lamp and lamp image. Low

brightness, 0.040” aluminum, anodized; keyed to lamp support assembly
for true aiming of lamp to prevent incorrect installation of cone. Hinged
and snaps on for easy tool-less installation.

2. Lamp Support: Die-form aluminum with knurled surface for easy gripping

during relamping. Spring tension clips hold lamp and lens and allow fast
snap-in, snap-out relamping. Matte black finish.

NOTE: HID lampholder ship with the frame. Discard the incandescent

lampholder that ships standard with the trims.

3. Trim Kit Vertical Adjus tment Mechanism: Die-cast aluminum. Built

in aper ture shield blocks view into fix ture. Provides 0°-45° vertical tilt
up to 1” thick ceiling, less in thicker ceilings; lockable. Patented EZ-Aim
Helical Drive System provides fast and accurate hot aiming with Philips
screwdriver.

4. Horizontal Adjustment Mechanism: Die-form steel ring, matte black

finish. Provides 360° horizontal stop, lockable.

5. Frame Vertical Adjustment Mechanism: Accommodates mounting

to virtually any ceiling system using pre-installed mounting bars, or ½”
EMT tubing (by others). Single locking feature secures all adjustments.
Alignment holes and markings allow fixture to be pre-set prior to
installation. Final adjustment can be made from below inside fixture.

6. Mounting Bars: Galvanized steel, 0.048”; pre-installed telescoping

bars extend from 20” to 30” long and lock securely into position. Built-in
locking tabs provide positive attachment to common T-bars systems. Self­centering feature simplified installation in 24” O.C. grid systems. Attaches
to steel or wood joists without accessories.

7. Socket Harness: Twist and lock base. 5kV (600V) pulse rated PPS, black

T240 body socket with nickel-plated contacts. 18 AWG silicone leads with
fiberglass outer sleeve

C4MRW CCDW C4MRW CCDP
C4MRW CCLW C4MRW CCLP
C4MRW CCZ W C4MRW CCZP

C420MREU – Electronic 120/277V Non-IC (1) 20W MR16 CMH

GX10 Base

Options and Accessories

Accepts one accessory

Labels

U.L (Suitable for Wet Locations)

Teflon® is a registered trademark of E.I. DuPont.

US Patent No. 5,9 57,573. Other US and Foreign Patents Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • A1107

Calculite

500

1000

1500

0°

30°

60°

90°

2400

0°

30°

60°

90°

600

1200

1800

1750

3500

5250

7000

0°

30°

60°

90°

®

HID Lensed Adjustable Accent C4MRW

Page 2 of 2 4 1/2” Aperture (1) 20W CMH

C4MRW, 20W G.E. HID SPOT, 12° GX10 BASE

CANDLEPOWER SUMMARY

Angle CP

0 243
5 234
10 302
15 572
20 1599
25 4637
30 7489
35 4177
40 1803
45 580
50 159
55 60
60 40
65 42
70 10
75 0

80 0
LAMP @ 30 DEGREE VERTICAL T ILT
LUMEN R ATING = 1000 LMS.
CBCP = 748 9 CD
BEAM ANGLE = 12°
TEST R EPORT NO. 3 404FR

85 0

90 0

C4MRW, 20W G.E. HID FLOOD, 25° GX10 BASE

CANDLEPOWER SUMMARY

Angle CP

0 209

5 241

10 368

15 721

20 1428

25 2161

30 2375

35 2355

40 2092

45 1330

50 418

55 132

60 58

65 19

70 1

75 3

80 1
LAMP @ 30 DEGREE VERTICAL T ILT
LUMEN R ATING = 1000 LMS.
CBCP = 2375 CD
BEAM ANGLE = 25°
TEST R EPORT NO. 33 93FR

85 1

90 0

30° DEGREE AIMING ANGLE - HORIZONTAL SURFACE

D C FC L W

6' 3. 5' 135 1.7' 1.5'
8' 4. 6' 76 2. 3' 1.9'
10 ' 5.8' 49 2.8' 2.4'
12 ' 6.9' 34 3.4' 2.9'
14' 8 .1' 25 3.9' 3.4'

30° DEGREE AIMING ANGLE - VERTICAL SURFACE

D C FC L W

2' 3. 5' 23 4 1.7' 0. 8'
3' 5. 2' 104 2. 6' 1.3'
4' 6. 9' 59 3. 5' 1.7'
5' 8.7 ' 37 4. 3' 2.1'
6' 10. 4' 26 5. 2' 2.5'

30° DEGREE AIMING ANGLE - HORIZONTAL SURFACE

D C FC L W

6' 3. 5' 4 3 3. 6' 3 .1'
8' 4. 6' 24 4. 8' 4.1'
10 ' 5.8' 15 6 .0' 5 .1'
12 ' 6.9' 11 7.2' 6 .1'
14' 8 .1' 8 8.4' 7.2 '

30° DEGREE AIMING ANGLE - VERTICAL SURFACE

D C FC L W

2' 3. 5' 74 4. 2' 1.8'
3' 5. 2' 33 6. 2' 2.7'
4' 6. 9' 19 8. 3' 3.5'
5' 8.7 ' 12 10.4' 4.4'
6' 10. 4' 8 12.5' 5.3'

C4MRW, 20W G.E. HID WIDE FLOOD, 40° GX10 BASE

LAMP @ 30 DEGREE VERTICAL T ILT
LUMEN R ATING = 1000 LMS.
CBCP = 1366 CD
BEAM ANGLE = 40 °
TEST R EPORT NO. 33 90FR

CANDLEPOWER SUMMARY

Angle CP

0 296

5 435

10 712

15 1029

20 1280

25 1356

30 1366

35 1300

40 1098

45 1249

50 488

55 156

60 58

65 18

70 3

75 3

80 1

85 1

90 1

30° DEGREE AIMING ANGLE - HORIZONTAL SURFACE

D C FC L W

6' 3. 5' 25 6.1' 5. 0'
8' 4. 6' 14 8.1' 6 .7'
10 ' 5.8' 9 10.2 ' 8.4'
12 ' 6.9' 6 12.2 ' 10.1'
14' 8 .1' 5 14.2' 11.8'

30° DEGREE AIMING ANGLE - VERTICAL SURFACE

D C FC L W

2' 3. 5' 4 3 9.7 ' 2.9'
3' 5. 2' 19 14.5' 4.4'
4' 6. 9' 11 19.3' 5 .8'
5' 8.7 ' 7 24.2 ' 7.3'
6' 10. 4' 5 29.0' 8.7 '
