Lightolier AGU User Manual

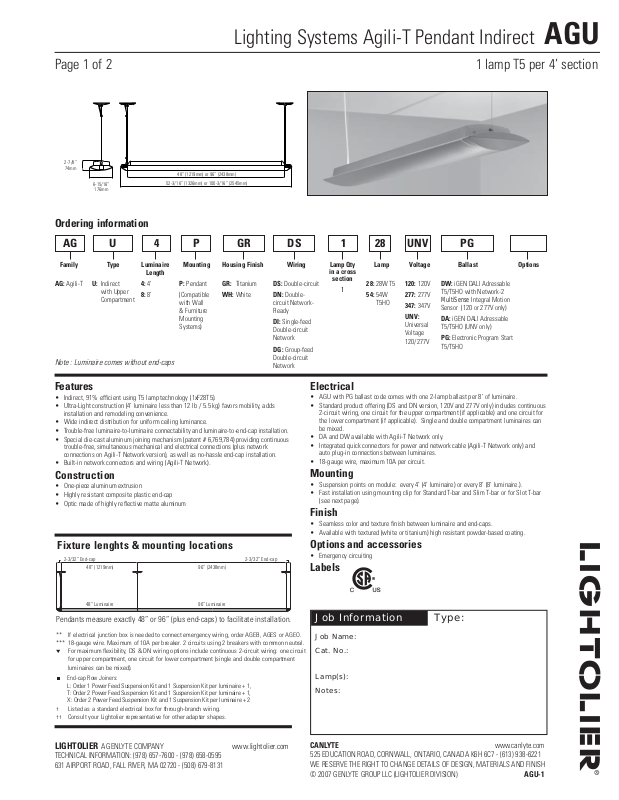

Lighting Systems Agili-T Pendant Indirect AGU
Page 1 of 2 1 lamp T5 per 4’ section
2-7/8”
74mm
6-15/16”
176mm
Ordering information
48” (1219mm) or 96” (2438mm)
52-3/16” (1326mm) or 100-3/16” (2545mm)
AG
Family
AG: Agili-T
U
Type
U: Indirect
with Upper
Compartment
4
Luminaire
Length
4: 4’
8: 8’
Note : Luminaire comes without end-caps
P
Mounting
P: Pendant
(Compatible
with Wall
& Furniture
Mounting
Systems)
GR
Housing Finish
GR: Titanium
WH: White
DS: Double-circuit
DN: Double-
circuit NetworkReady
DI: Single-feed
Double-circuit
Network
DG: Group-feed
Double-circuit
Network
Features
• Indirect, 91% efficient using T5 lamp technology (1xF28T5).
• Ultra-Light construction (4’ luminaire less than 12 lb / 5.5 kg) favors mobility, adds
installation and remodeling convenience.
• Wide indirect distribution for uniform ceiling luminance.
• Trouble-free luminaire-to-luminaire connectability and luminaire-to-end-cap installation.
• Special die-cast aluminum joining mechanism (patent # 6,769,784) providing continuous
trouble-free, simultaneous mechanical and electrical connections (plus network
connections on Agili-T Network version), as well as no-hassle end-cap installation.
• Built-in network connectors and wiring (Agili-T Network).
Construction
• One-piece aluminum extrusion
• Highly resistant composite plastic end-cap
• Optic made of highly reflective matte aluminum
Fixture lenghts & mounting locations
2-3/32” End-cap
48” (1219mm) 96” (2438mm)
2-3/32” End-cap
DS
Wiring
1
Lamp Qty
in a cross
section
1
28
Lamp
28: 28W T5
54: 54W
T5HO
UNV
Voltage
120: 120V
277: 277V
347: 347V
UNV:
Universal
Voltage
120/277V
PG
Ballast
DW: iGEN DALI Adressable
T5/T5HO with Network-2
MultiSense Integral Motion
Sensor (120 or 277V only)
DA: iGEN DALI Adressable
T5/T5HO (UNV only)
PG: Electronic Program Start
T5/T5HO
Electrical
• AGU with PG ballast code comes with one 2-lamp ballast per 8’ of luminaire.
• Standard product offering (DS and DN version, 120V and 277V only) includes continuous
2-circuit wiring, one circuit for the upper compartment (if applicable) and one circuit for
the lower compartment (if applicable). Single and double compartment luminaires can
be mixed.
• DA and DW available with Agili-T Network only.
• Integrated quick connectors for power and network cable (Agili-T Network only) and
auto plug-in connections between luminaires.
• 18-gauge wire, maximum 10A per circuit.
Mounting
• Suspension points on module: every 4’ (4’ luminaire) or every 8’ (8’ luminaire.).
• Fast installation using mounting clip for Standard T-bar and Slim T-bar or for Slot T-bar
(see next page).
Finish
• Seamless color and texture finish between luminaire and end-caps.
• Available with textured (white or titanium) high resistant powder-based coating.
Options and accessories
• Emergency circuiting
Labels
Options
48” Luminaire 96” Luminaire
Pendants measure exactly 48” or 96” (plus end-caps) to facilitate installation.
** If electrical junction box is needed to connect emergency wiring, order AGEB, AGES or AGEO.
*** 18-gauge wire. Maximum of 10A per breaker. 2 circuits using 2 breakers with common neutral.
▼
For maximum flexibility, DS & DN wiring options include continuous 2-circuit wiring: one circuit
for upper compartment, one circuit for lower compartment (single and double compartment
luminaires can be mixed).
End-cap Row Joiners:
L: Order 1 Power Feed Suspension Kit and 1 Suspension Kit per luminaire + 1,
T: Order 2 Power Feed Suspension Kit and 1 Suspension Kit per luminaire + 1,
X: Order 2 Power Feed Suspension Kit and 1 Suspension Kit per luminaire + 2
†
Listed as a standard electrical box for through-branch wiring.
††
Consult your Lightolier representative for other adapter shapes.
LIGHTOLIER
A GENLYTE COMPANY
www.lightolier.com
TECHNICAL INFORMATION: (978) 657-7600 - (978) 658-0595
631 AIRPORT ROAD, FALL RIVER, MA 02720 - (508) 679-8131
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
CANLYTE www.canlyte.com
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - (613) 938-6221
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION) AGU-1
Lighting Systems Agili-T Pendant Indirect AGU
Page 2 of 2 1 lamp T5 per 4’ section
Performance
CANDLEPOWER CURVE
ZONE
180°
1200
900
600
300
90°
0°
REPORT NO: LSC8531
CAT. NO: AGU4PGRDS128UNVPG
1 x 28W T5 at 2610 lumens. Efficiency: 90.8%
Maximum candela: 1067 cd. Peak at: 120°
DEG 0 22,5 45 67,5 90
180 322 322 322 322 322
175 317 315 314 322 315
170 317 315 315 324 308
165 312 297 310 316 321
160 295 302 307 317 311
155 289 279 298 323 316
150 265 269 305 314 324
145 251 260 293 331 352
140 229 241 291 370 395
135 207 230 304 452 515
130 176 214 345 621 708
125 156 196 464 777 881
120 133 199 585 943 1067
115 101 222 709 958 962
110 71 272 699 731 754
105 48 319 530 640 664
100 30 264 387 403 418
95 8 138 179 197 195
90 0 0 0 0 0
Agili-T Accessories
Suspension Kit (Patent # 6,634,772)
AG
AC
24 X G
CANDLEPOWER
ZONAL CAVITY METHOD • EFFECTIVE FLOOR CAVITY REFLECTANCE = .20
80 70 50
70 50 30 70 70 50 30 10 50 30 10
0 .86 .86 .86 .86 .74 .74 .74 .74 .50 .50 .50
1 .79 .75 .72 .69 .67 .64 .62 .58 .44 .42 .41
2 .71 .65 .60 .56 .61 .56 .52 .48 .38 .36 .34
3 .65 .57 .51 .47 .55 .49 .44 .40 .34 .31 .28
4 .59 .50 .44 .39 .50 .43 .38 .34 .30 .26 .24
5 .54 .44 .38 .33 .46 .38 .33 .29 .26 .23 .20
6 .50 .40 .33 .28 .42 .34 .29 .25 .24 .20 .17
7 .46 .36 .29 .24 .39 .31 .25 .21 .21 .18 .15
8 .42 .32 .25 .21 .36 .27 .22 .18 .19 .16 .13
9 .39 .29 .23 .18 .33 .25 .20 .16 .17 .14 .11
10 .36 .26 .20 .16 .31 .23 .18 .14 .16 .12 .10
DISTRIBUTION
ZONE LUMENS %LAMP % LUMINAIRE
180-150 258 9.90 10.91
180-140 445 17.07 18.79
180-120 1154 44.22 48.69
180-90 2370 90.82 100.00
140-90 1925 73.76 81.21
120-90 1216 46.60 51.31
0-90 0 .00 .00
0-180 2370 90.82 100.00
End-cap Row Joiners
AG CG L
COEFFICIENTS OF UTILIZATION
Wall reflectance
ROOM CAVITY RATIO
DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES
LUMINAIRE INPUT WATTS = 31.8
(Patent # 6,568,830)
DS
Family
AG: Agili-T
Typ e
AC: Aircraft
cable,
canopy
and joiner
mechanism
Suspension
Length
24: Adjustable
6- 24”
36: Adjustable
6- 36”
End-cap
Color
X: N/A
Canopy Color
G: Titanium
W: White
Ordering instructions
1. Choose Agili-T luminaire.
2. Choose Power Feed Suspension Kit. One Kit per individual luminaire or one
per row at row extremity (18-gauge wire feed, maximum of 10A per circuit).
3. Choose Suspension Kit. One per luminaire.
4. Choose Mounting Elements. One per Suspension Kit.
5. Choose Mounting Elements With Junction Box. One per Power Feed
Suspension Kit, as needed.
Power Feed Suspension Kit
AG EC 24 G G UNV
Family
AG: Agili-T
Typ e
EC: End-caps (2),
aircraft cable,
canopy, joiner
mechanism
*
(Patent # 6,634,772)
Suspension
Length
24: Adjustable
6- 24”
36: Adjustable
6- 36”
End-cap
Color
G: Titanium
W: White
Canopy Color
G: Titanium
W: White
Voltage
347: 347V Cable
UNV: 120/277V
Family
AG: Agili-T
4-1/8"
Type
CG: Titanium
CW: White
4-1/8"
L: 90° “L” shape, 2 rows
T: “T” shape, 3 rows
X: “X” shape, 4 rows
“L” shape
Mounting Elements (T-bar Clip Patent # 6,637,710)
AGTB One-piece T-bar wraparound clip for standard T or narrow T
AGSB One-piece T-bar wraparound clip for slot T
(consult your Lightolier representative for availability)
DS
Wiring
DS: Double-circuit
DN: Double-circuit
Network-Ready
t
AGOG Off-grid holding bar
†
One-piece T-bar wraparound clip for standard T or narrow T
AGEB
with integrated easy-access Lightolier electrical box
†
One-piece T-bar wraparound clip for slot T with integrated
AGES
easy-access Lightolier electrical box
(consult your Lightolier representative for availability)
†
Off-grid holding bar with integrated easy-access Lightolier
AGEO
electrical box
Job Information Type:
Shape
“T” shape
t
Wiring
DS: Double-circuit
DN: Double-circuit Network
“X” shape
LIGHTOLIER
A GENLYTE COMPANY
www.lightolier.com
TECHNICAL INFORMATION: (978) 657-7600 - (978) 658-0595
631 AIRPORT ROAD, FALL RIVER, MA 02720 - (508) 679-8131
CANLYTE www.canlyte.com
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - (613) 938-6221
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION)
