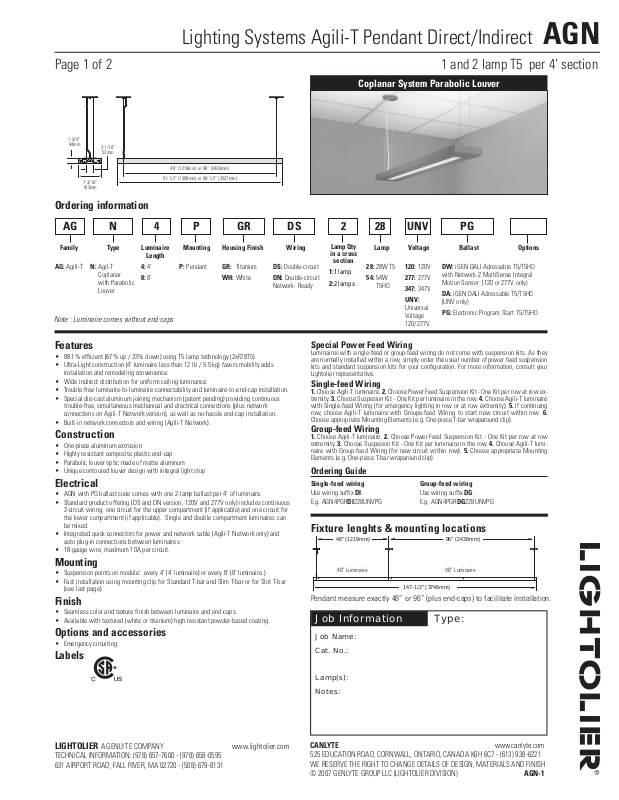

Lighting Systems Agili-T Pendant Direct/Indirect AGN
Page 1 of 2 1 and 2 lamp T5 per 4’ section
Coplanar System Parabolic Louver
1-3/4”
44mm
1-3/4”
Ordering information
7-3/16”
7-3/16”
183mm
2-1/16”
52mm
2-1/16”
48” (1219mm) or 96“ (2438mm)
51-1/2” (1308mm) or 99-1/2“ (2527mm)
48”
51-1/2”
AG
Family
AG: Agili-T
N
Type
Agil-T
N:
Coplanar
with Parabolic
Louver
4
Luminaire
Length
4: 4’
8: 8’
P
Mounting
P: Pendant
GR
Housing Finish
GR: Titanium
WH: White
DS: Double-circuit
DN: Double-circuit
Network- Ready
Note : Luminaire comes without end-caps
Features
• 88.1% efficient (67% up / 33% down) using T5 lamp technology (2xF28T5).
• Ultra-Light construction (4’ luminaire less than 12 lb / 5.5 kg) favors mobility adds
installation and remodeling convenience.
• Wide indirect distribution for uniform ceiling luminance.
• Trouble-free luminaire-to-luminaire connectability and luminaire-to-end-cap installation.
• Special die-cast aluminum joining mechanism (patent pending) providing continuous
trouble-free, simultaneous mechanical and electrical connections (plus network
connections on Agili-T Network version), as well as no-hassle end-cap installation.
• Built-in network connectors and wiring (Agili-T Network).
Construction
• One-piece aluminum extrusion
• Highly resistant composite plastic end-cap
• Parabolic louver optic made of matte aluminum
• Unique contoured louver design with integral light stop
Electrical
• AGN with PG ballast code comes with one 2-lamp ballast per 4’ of luminaire.
• Standard product offering (DS and DN version, 120V and 277V only) includes continuous
2-circuit wiring, one circuit for the upper compartment (if applicable) and one circuit for
the lower compartment (if applicable). Single and double compartment luminaires can
be mixed.
• Integrated quick connectors for power and network cable (Agili-T Network only) and
auto plug-in connections between luminaires.
• 18-gauge wire, maximum 10A per circuit.
Mounting
• Suspension points on module: every 4’ (4’ luminaire) or every 8’ (8’ luminaire.)
• Fast installation using mounting clip for Standard T-bar and Slim T-bar or for Slot T-bar
(see last page).
Finish
• Seamless color and texture finish between luminaire and end-caps.
• Available with textured (white or titanium) high resistant powder-based coating.
Options and accessories
• Emergency circuiting
Labels
DS
Wiring
2
Lamp Qty
in a cross
section
1: 1 lamp
2: 2 lamps
Special Power Feed Wiring
Luminaires with single-feed or group-feed wiring do not come with suspension kits. As they
are normally installed within a row, simply order the usual number of power feed suspension
kits and standard suspension kits for your confi guration. For more information, consult your
Lightolier representative.
Single-feed Wiring
1. Choose Agili-T luminaire. 2. Choose Power Feed Suspension Kit - One Kit per row at row ex-
tremity. 3. Choose Suspesion Kit - One Kit per luminaire in the row. 4. Choose Agili-T luminaire
with Single-feed Wiring (for emergency lighting in row or at row extremity). 5. If continuing
row, choose Agili-T luminaire with Groupe-feed Wiring to start new circuit within row. 6.
Choose appropriate Mounting Elements (e.g. One-piece T-bar wraparound clip).
Group-feed Wiring
1. Choose Agili-T luminaire. 2. Choose Power Feed Suspension Kit - One Kit per row at row
extremity. 3. Choose Suspesion Kit - One Kit per luminaire in the row. 4. Choose Agili-T luminaire with Group-feed Wiring (for new circuit within row). 5. Choose appropriate Mounting
Elements (e.g. One-piece T-bar wraparound clip).
28
Lamp
28: 28W T5
54: 54W
T5HO
UNV
Voltage
120: 120V
277: 277V
347: 347V
UNV:
Universal
Voltage
120/277V
PG
Ballast
DW: iGEN DALI Adressable T5/T5HO
with Network-2 MultiSense Integral
Motion Sensor (120 or 277V only)
DA: iGEN DALI Adressable T5/T5HO
(UNV only)
PG: Electronic Program Start T5/T5HO
Ordering Guide
Single-feed wiring Group-feed wiring
Use wiring suffi x DI. Use wiring suffi x DG.
E.g. AGN4PGRDI228UNVPG E.g. AGN4PGRDG228UNVPG
Fixture lenghts & mounting locations
48” (1219mm)
48” Luminaire
147-1/2” (3746mm)
Pendant measure exactly 48” or 96” (plus end-caps) to facilitate installation.
Job Information Type:
Job Name:
Cat. No.:
96” (2438mm)
96” Luminaire
Options
LIGHTOLIER
A GENLYTE COMPANY
www.lightolier.com
TECHNICAL INFORMATION: (978) 657-7600 - (978) 658-0595
631 AIRPORT ROAD, FALL RIVER, MA 02720 - (508) 679-8131
Lamp(s):
Notes:
CANLYTE www.canlyte.com
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - (613) 938-6221
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION) AGN-1
Lighting Systems Agili-T Pendant Direct/Indirect AGN
Page 2 of 2 1 and 2 lamp T5 per 4’ section
Coplanar System Parabolic Louver
Performance
CANDLEPOWER CURVE
180°
250
0°
REPORT NO: LSCA770
CAT. NO: AGN4PGRDS228120PG
2 x 28W T5 at 2610 lumens. Efficiency: 88.1%
Indirect Maximum candela: 1052 cd
Indirect Peak: 152.5°. Candela at Nadir: 740 cd
1000
750
500
90°
CANDLEPOWER
ZONE
DEG
0 22.5 45 67.5 90
0 740 740 740 740 740
5 743 737 741 761 749
15 691 701 753 784 780
25 612 6561 669 684 675
35 512 554 549 587 631
45 380 408 435 445 448
55 209 222 216 169 174
65 49 57 46 41 31
75 11 6 0 0 0
85 0 0 0 0 0
90 0 0 0 0 0
95 19 22 13 5 5
105 149 217 179 159 149
115 287 451 423 366 350
125 430 604 699 664 634
135 562 708 864 911 906
145 682 776 940 1022 1029
155 762 828 942 1026 1038
165 828 848 914 962 966
175 856 860 869 878 881
180 854 854 854 854 854
ZONAL CAVITY METHOD * EFFECTIVE FLOOR CAVITY REFLECTANCE = .20
80 70 50
70 50 30 10 70 50 30 10 50 30 10
0 .91 .91 .91 .91 .82 .82 .82 .82 .65 .65 .65
1 .84 .80 .77 .75 .75 .73 .70 .67 .58 .57 .55
2 .77 .71 .67 .62 .69 .65 .61 .57 .52 .49 .47
3 .71 .63 .58 .53 .64 .58 .53 .49 .47 .44 .41
4 .65 .57 .50 .46 .59 .52 .46 .42 .42 .38 .35
5 .60 .50 .44 .39 .54 .46 .41 .36 .38 .34 .31
6 .55 .45 .39 .34 .50 .41 .36 .32 .34 .30 .27
7 .51 .41 .34 .30 .46 .37 .32 .28 .31 .27 .24
8 .47 .37 .30 .26 .42 .34 .28 .24 .28 .24 .21
Room Cavity Ratio
9 .43 .33 .27 .23 .39 .30 .25 .21 .25 .21 .18
0 .40 .30 .24 .20 .36 .28 .22 .19 .23 .19 .16
DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES
DISTRIBUTION
ZONE LUMENS % LAMP %LUMINAIRE
0-30 583 11.18 12.69
0-40 936 17.94 20.36
0-60 1444 27.67 31.39
0-90 1501 28.76 32.63
40-90 564 10.82 12.27
60-90 57
90-180 3099 59.38
0-180
COEFFICIENTS OF UTILIZATION
Wall Refl ectance
LUMINAIRE INPUT WATTS = 65.5
1.09 1.24
67.37
4600 88.14 100
Agili-T Accessories
Power Feed Suspension Kit
AG ER 24 G G 120 DS
Family Type Suspension End-cap Canopy / Voltage Wiring
Length Color Stem Color
AG: Agili-T ER: Coplanar End caps *18: 18’ Stem G: Titanium G: Titanium 347: 347V DS: Double circuit
(2) LevelLyte cable, *24: 24’ Stem W: White W: White UNV: 120/277V DN: Double-circuit Network
canopy, joiner or cable (Cable option only)
mechanism *36: 36” Stem **SS: Single Circuit
ET: Coplanar End caps or cable (Stem option only)
(2)Inverted Y cable,
canopy, joiner
mechanism
EU: Coplanar End caps (2)
Stem suspension,
canopy, joiner
mechanism
Suspension Kit
AG AV 24 X G
Family Type Suspension End-cap Canopy /
Length Color Stem Color
AG: Agili-T AV: Neo and Coplanar *18: 18’ Stem X: N/A G: Titanium
System LevelLyte *24: 24’ Stem W: White
canopy and or cable
joiner mechanism *36: 36” Stem
AY: Neo and Coplanar or cable
System Inverted Y
canopy and
joiner mechanism
AZ: Neo and Coplanar
Stem System
canopy and
joiner mechanism
General note :
* All stems are field cuttable.
** Consult factory for specialized circuit options utilizing stem suspensions.
Mounting Elements (T-bar Clip Patent # 6,637,710)
AGTB One-piece T-bar wraparound clip for standard T or narrow T
AGSB One-piece T-bar wraparound clip for slot T (consult your Lightolier representative
for availability)
AGOG Off-grid holding bar
†
AGES
One-piece T-bar wraparound clip for slot T with integrated easy-access Lightolier
electrical box (consult your Lightolier representative for availability)
†
AGEO
Off-grid holding bar with integrated easy-access Lightolier electrical box
Ordering instructions
1. Choose Agili-T luminaire.
2. Choose Power Feed Suspension Kit. One Kit
per individual luminaire or one per row at row
extremity (18-gauge wire feed, maximum of
10A per circuit).
3. Choose Suspension kit. One per luminaire.
4. Choose Mounting Elements. One per
Suspension Kit.
5. Choose Mounting Elements with Junction Box.
One per Power Feed Suspension Kit as needed.
LIGHTOLIER
A GENLYTE COMPANY
www.lightolier.com
TECHNICAL INFORMATION: (978) 657-7600 - (978) 658-0595
631 AIRPORT ROAD, FALL RIVER, MA 02720 - (508) 679-8131
Job Information Type:
CANLYTE www.canlyte.com
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - (613) 938-6221
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION)
