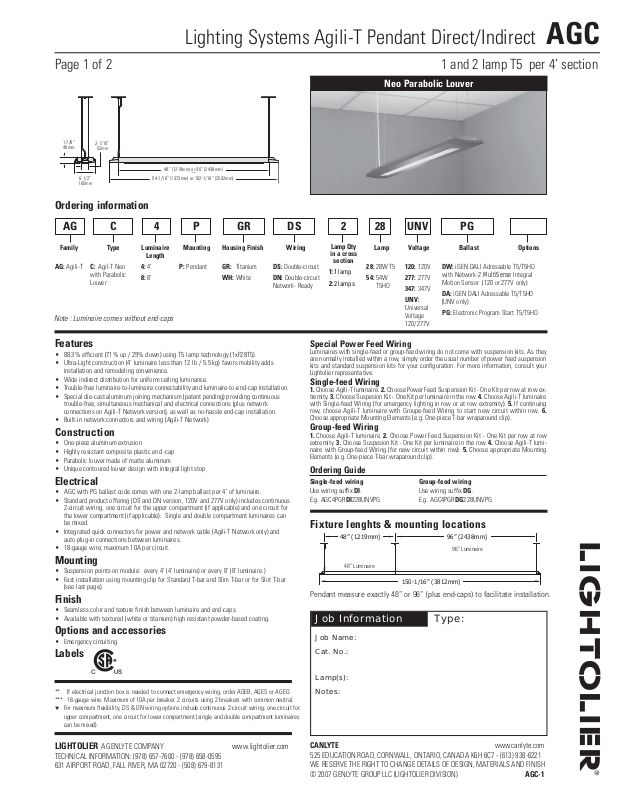

Lightolier AGC User Manual

Lighting Systems Agili-T Pendant Direct/Indirect AGC

Page 1 of 2 1 and 2 lamp T5 per 4’ section

Neo Parabolic Louver

1-7/8”

48mm

1-7/8”

6-1/2”

6-1/2”

165mm

2-1/16”

2-1/16”

52mm

48” (1219mm) or 96“ (2438mm)

54-1/16” (1373mm) or 102-1/16“ (2592mm)

48”

54-1/16”

Ordering information

AG

Family

AG: Agili-T

C

Type

C:

Agil-T Neo
with Parabolic
Louver

4

Luminaire

Length

4: 4’

8: 8’

Note : Luminaire comes without end-caps

P

Mounting

P: Pendant

GR

Housing Finish

GR: Titanium

WH: White

DS: Double-circuit

DN: Double-circuit

Network- Ready

Features

• 88.3% efficient (71% up / 29% down) using T5 lamp technology (1xF28T5).

• Ultra-Light construction (4’ luminaire less than 12 lb / 5.5 kg) favors mobility adds
installation and remodeling convenience.

• Wide indirect distribution for uniform ceiling luminance.

• Trouble-free luminaire-to-luminaire connectability and luminaire-to-end-cap installation.

• Special die-cast aluminum joining mechanism (patent pending) providing continuous
trouble-free, simultaneous mechanical and electrical connections (plus network
connections on Agili-T Network version), as well as no-hassle end-cap installation.

• Built-in network connectors and wiring (Agili-T Network).

Construction

• One-piece aluminum extrusion

• Highly resistant composite plastic end -cap

• Parabolic louver made of matte aluminum

• Unique contoured louver design with integral light stop

Electrical

• AGC with PG ballast code comes with one 2-lamp ballast per 4’ of luminaire.

• Standard product offering (DS and DN version, 120V and 277V only) includes continuous
2-circuit wiring, one circuit for the upper compartment (if applicable) and one circuit for
the lower compartment (if applicable). Single and double compartment luminaires can
be mixed.

• Integrated quick connectors for power and network cable (Agili-T Network only) and
auto plug-in connections between luminaires.

• 18-gauge wire, maximum 10A per circuit.

Mounting

• Suspension points on module: every 4’ (4’ luminaire) or every 8’ (8’ luminaire.)

• Fast installation using mounting clip for Standard T-bar and Slim T-bar or for Slot T-bar
(see last page).

Finish

• Seamless color and texture finish between luminaire and end-caps.

• Available with textured (white or titanium) high resistant powder-based coating.

Options and accessories

• Emergency circuiting

Labels

DS

Wiring

2

Lamp Qty

in a cross

section

1: 1 lamp

2: 2 lamps

Special Power Feed Wiring

Luminaires with single-feed or group-feed wiring do not come with suspension kits. As they
are normally installed within a row, simply order the usual number of power feed suspension
kits and standard suspension kits for your confi guration. For more information, consult your
Lightolier representative.

Single-feed Wiring

1. Choose Agili-T luminaire. 2. Choose Power Feed Suspension Kit - One Kit per row at row ex-

tremity. 3. Choose Suspesion Kit - One Kit per luminaire in the row. 4. Choose Agili-T luminaire
with Single-feed Wiring (for emergency lighting in row or at row extremity). 5. If continuing
row, choose Agili-T luminaire with Groupe-feed Wiring to start new circuit within row. 6.
Choose appropriate Mounting Elements (e.g. One-piece T-bar wraparound clip).

Group-feed Wiring

1. Choose Agili-T luminaire. 2. Choose Power Feed Suspension Kit - One Kit per row at row

extremity. 3. Choose Suspesion Kit - One Kit per luminaire in the row. 4. Choose Agili-T lumi­naire with Group-feed Wiring (for new circuit within row). 5. Choose appropriate Mounting
Elements (e.g. One-piece T-bar wraparound clip).

28

Lamp

28: 28W T5

54: 54W

T5HO

UNV

Voltage

120: 120V

277: 277V

347: 347V

UNV:

Universal
Voltage
120/277V

PG

Ballast

DW: iGEN DALI Adressable T5/T5HO

with Network-2
Motion Sensor (120 or 277V only)

DA: iGEN DALI Adressable T5/T5HO
(UNV only)

PG: Electronic Program Start T5/T5HO

MultiSense Integral

Ordering Guide

Single-feed wiring Group-feed wiring

Use wiring suffi x DI. Use wiring suffi x DG.
E.g. AGC4PGRDI228UNVPG E.g. AGC4PGRDG228UNVPG

Fixture lenghts & mounting locations

48” (1219mm)

48” Luminaire

150-1/16” (3812mm)

Pendant measure exactly 48” or 96” (plus end-caps) to facilitate installation.

Job Information Type:

Job Name:
Cat. No.:

96” (2438mm)

96” Luminaire

Options

** If electrical junction box is needed to connect emergency wiring, order AGEB, AGES or AGEO.
*** 18-gauge wire. Maximum of 10A per breaker. 2 circuits using 2 breakers with common neutral.

▼ For maximum flexibility, DS & DN wiring options include continuous 2-circuit wiring: one circuit for

upper compartment, one circuit for lower compartment (single and double compartment luminaires
can be mixed).

LIGHTOLIER

A GENLYTE COMPANY

www.lightolier.com
TECHNICAL INFORMATION: [phone] - [phone]
631 AIRPORT ROAD, FALL RIVER, MA 02720 - [phone]

Lamp(s):
Notes:

CANLYTE www.canlyte.com
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - [phone]
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION) AGC-1

Lighting Systems Agili-T Pendant Direct/Indirect AGC

Page 2 of 2 1 and 2 lamp T5 per 4’ section

Neo Parabolic Louver

Performance

CANDLEPOWER CURVE

180°

150

0°

REPORT NO: LSCA772
CAT. NO: AGC4PGRDS128120PG

1 x 28W T5 at 2610 lumens. Efficiency: 88.3%
Indirect Maximum candela: 597 cd
Indirect Peak: 147.5°
Candela at Nadir: 268 cd

600

450

300

90°

CANDLEPOWER

ZONE
DEG

0 22.5 45 67.5 90

0 268 268 268 268 268
5 267 264 269 272 268
15 251 252 287 323 335
25 221 244 326 412 444
35 186 239 345 358 353
45 136 208 221 142 110
55 70 103 64 38 39
65 16 17 13 10 10
75 1 0 1 0 0
85 0 0 0 0 0
90 0 0 0 0 0
95 7 11 3 0 0
105 54 152 105 86 77
115 105 265 297 236 215
125 157 322 442 453 441
135 205 335 500 558 575
145 244 331 497 583 596
155 274 316 431 521 544
165 299 309 355 406 419
175 310 308 316 323 320
180 310 310 310 310 310

ZONAL CAVITY METHOD * EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50

70 50 30 10 70 50 30 10 50 30 10

0 .90 .90 .90 .90 .81 .81 .81 .81 .63 .63 .63
1 .83 .80 .77 .74 .74 .72 .69 .66 .56 .55 .53
2 .76 .70 .66 .62 .68 .63 .59 .56 .50 .48 .45
3 .70 .63 .57 .53 .63 .57 .52 .48 .45 .42 .39
4 .64 .56 .50 .45 .58 .51 .45 .41 .41 .37 .34
5 .59 .49 .44 .39 .53 .45 .40 .36 .37 .33 .30
6 .55 .45 .38 .34 .49 .41 .35 .31 .33 .29 .26
7 .50 .40 .34 .29 .45 .37 .31 .27 .30 .26 .23
8 .46 .36 .30 .26 .42 .33 .28 .24 .27 .23 .20

Room Cavity Ratio

9 .43 .33 .27 .22 .39 .30 .24 .21 .24 .20 .17
0 .40 .30 .24 .20 .36 .27 .22 .18 .22 .18 .15

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

DISTRIBUTION

ZONE LUMENS % LAMP %LUMINAIRE

0-30 259 9.95 11.27
0-40 444 17.04 19.30
0-60 639 24.49 27.74
0-90 655 25.11 28.43
40-90 210 8.06 9.13
60-90 16 .61 .69
90-180 1649 63.20 71.57
0-180 2304 88.31 100

COEFFICIENTS OF UTILIZATION

Wall Refl ectance

LUMINAIRE INPUT WATTS = 33.6

Agili-T Accessories

Power Feed Suspension Kit

AG EN 24 G G 120 DS

Family Type Suspension End-cap Canopy / Voltage Wiring
Length Color Stem Color

AG: Agili-T EN: Neo End caps (2) *18: 18’ Stem G: Titanium G: Titanium 347: 347V DS: Double circuit

LevelLyte cable, *24: 24’ Stem W: White W: White UNV: 120/277V DN: Double-circuit Network
canopy, joiner or cable (Cable option only)
mechanism *36: 36” Stem **SS: Single Circuit
EP: Neo End caps (2) or cable (Stem option only)
Inverted Y cable,
canopy, joiner
mechanism
EQ: Neo End caps (2)
Stem suspension,
canopy, joiner
mechanism

Suspension Kit

AG AV 24 X G

Family Type Suspension End-cap Canopy /
Length Color Stem Color

AG: Agili-T AV: Neo and Coplanar *18: 18’ Stem X: N/A G: Titanium
System LevelLyte *24: 24’ Stem W: White

canopy and or cable

joiner mechanism *36: 36” Stem
AY: Neo and Coplanar or cable
System Inverted Y
canopy and
joiner mechanism
AZ: Neo and Coplanar
Stem System
canopy and
joiner mechanism

General note :
* All stems are field cuttable.
** Consult factory for specialized circuit options utilizing stem suspensions.

Mounting Elements (T-bar Clip Patent # 6,637,710)

AGTB One-piece T-bar wraparound clip for standard T or narrow T
AGSB One-piece T-bar wraparound clip for slot T (consult your Lightolier representative

for availability)

AGOG Off-grid holding bar

†

One-piece T-bar wraparound clip for slot T with integrated easy-access Lightolier

AGES

electrical box (consult your Lightolier representative for availability)

†

Off-grid holding bar with integrated easy-access Lightolier electrical box

AGEO

Ordering instructions

1. Choose Agili-T luminaire.

2. Choose Power Feed Suspension Kit. One Kit
per individual luminaire or one per row at row
extremity (18-gauge wire feed, maximum of
10A per circuit).

3. Choose Suspension kit. One per luminaire.

4. Choose Mounting Elements. One per
Suspension Kit.

5. Choose Mounting Elements with Junction Box.
One per Power Feed Suspension Kit as needed.

LIGHTOLIER

A GENLYTE COMPANY

www.lightolier.com
TECHNICAL INFORMATION: [phone] - [phone]
631 AIRPORT ROAD, FALL RIVER, MA 02720 - [phone]

Job Information Type:

CANLYTE www.canlyte.com
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - [phone]
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION)

SPEC SHEET N° AGC-1 REV 02/06
