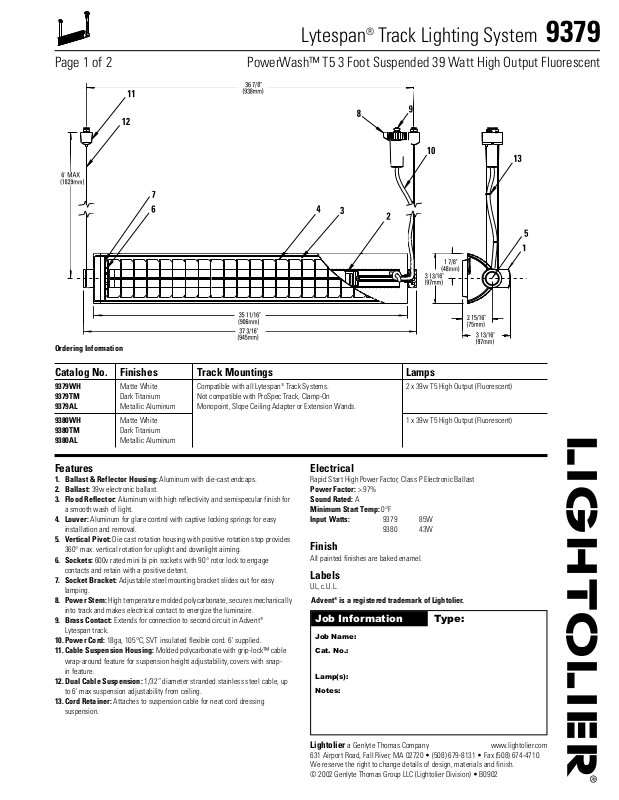

Lytespan
®
Track Lighting System 9379
Page 1 of 2 PowerWash™ T5 3 Foot Suspended 39 Watt High Output Fluorescent
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Features
1. Ballast & Reflector Housing: Aluminum with die-cast endcaps.
2. Ballast: 39w electronic ballast.
3. Flood Reflector: Aluminum with high reflectivity and semispecular finish for
a smooth wash of light.
4. Louver: Aluminum for glare control with captive locking springs for easy
installation and removal.
5. Vertical Pivot: Die cast rotation housing with positive rotation stop provides
360° max. vertical rotation for uplight and downlight aiming.
6. Sockets: 600v rated mini bi pin sockets with 90° rotor lock to engage
contacts and retain with a positive detent.
7. Socket Bracket: Adjustable steel mounting bracket slides out for easy
lamping.
8. Power Stem: High temperature molded polycarbonate, secures mechanically
into track and makes electrical contact to energize the luminaire.
9. Brass Contact: Extends for connection to second circuit in Advent
®
Lytespan track.
10. Power Cord: 18ga, 105°C, SVT insulated flexible cord. 6' supplied.
11. Cable Suspension Housing: Molded polycarbonate with grip-lock™ cable
wrap-around feature for suspension height adjustability, covers with snapin feature.
12. Dual Cable Suspension: 1/32” diameter stranded stainless steel cable, up
to 6' max suspension adjustability from ceiling.
13. Cord Retainer: Attaches to suspension cable for neat cord dressing
suspension.
Electrical
Rapid Start High Power Factor, Class P Electronic Ballast
Power Factor: >.97%
Sound Rated: A
Minimum Start Temp: 0°F
Input Watts: 9379 85W
9380 43W
Finish
All painted finishes are baked enamel.
Labels
UL, c.U.L.
Advent®is a registered trademark of Lightolier.
Ordering Information
Catalog No. Finishes Track Mountings Lamps
9379WH Matte White Compatible with all Lytespan®Track Systems. 2 x 39w T5 High Output (Fluorescent)
9379TM Dark Titanium Not compatible with ProSpec Track, Clamp-On
9379AL Metallic Aluminum Monopoint, Slope Ceiling Adapter or Extension Wands.
9380WH Matte White 1 x 39w T5 High Output (Fluorescent)
9380TM Dark Titanium
9380AL Metallic Aluminum
0’ 1’ 2’ 3’ 4’ 5’
0’ 1’ 2’ 3’ 4’ 5’
Lighting Data 2-39W T5 High output
1’ 157 132 76 36 17 9
2’ 123 106 65 32 14 6
3’ 78 69 47 27 13 6
4’ 51 46 34 22 13 7
5’ 30 27 21 15 9 6
6’ 19 18 15 11 8 5
7’ 12 12 10 8 6 4
8’ 887543
9’ 665433
196 166 196
153 136 153
107 100 107
83 80 83
50 49 50
40 39 40
27 27 27
19 19 19
16 16 16
170 77 170
129 65 129
84 54 84
63 50 63
35 30 36
29 26 29
19 18 19
13 13 13
11 11 11
Footcandles on Wall
Track 3 Feet From Wall Single Unit Multiple Units
4’
6’
3’
Distance From Luminaire
45˚
EXAMPLE: With track located 4’ from wall and multiple units
spaced 6’ on center and aimed 45˚ from horizontal, the illumination
on wall 4’ from luminaire will be 57 f.c. beneath units and 48 f.c.
between units.
1’ 87 75 48 24 10 3
2’ 86 76 53 31 16 7
3’ 65 58 43 27 15 8
4’ 47 43 33 23 15 9
5’ 34 32 26 19 13 9
6’ 23 21 18 14 10 7
7’ 16 15 13 10 8 6
8’ 11 11 9 8 6 5
9’ 887654
105 97 105
117 111 117
96 93 96
79 77 79
66 64 66
47 46 47
35 35 35
29 29 29
22 22 22
92 69 92
100 82 100
80 70 80
65 60 65
54 51 54
38 37 38
29 28 29
24 24 24
18 18 18
87 48 87
92 60 92
71 53 71
57 48 57
47 42 47
33 30 33
25 23 25
21 20 21
16 15 16
Track 4 Feet From Wall Single Unit Multiple Units
4’
5’ 6’
4’
Distance From Luminaire
45˚
Footcandles are average and rounded off and data for multiple units are based on a minimum of five units.
Footcandles on wall:
Beam Center
Beam Center
178 114 178
136 95 136
91 74 91
70 62 70
41 38 41
33 32 33
22 21 22
15 15 15
13 13 13
5’
0’ 1’ 2’ 3’ 4’ 5’
1’ 61 55 41 27 16 10
2’ 62 56 43 29 18 11
3’ 55 51 40 28 18 12
4’ 40 38 30 22 15 10
5’ 31 29 24 18 13 9
6’ 24 22 19 15 12 8
7’ 18 17 15 12 10 7
8’ 13 12 11 9 7 6
9’ 10 9 8 7 6 5
99 96 99
104 102 104
101 99 101
77 76 77
63 62 63
53 53 53
43 43 43
32 32 32
27 27 27
83 74 83
87 80 87
84 79 84
63 60 63
51 49 51
44 42 44
36 35 36
26 26 26
22 22 22
74 58 74
77 63 77
75 64 75
54 49 54
44 41 44
37 35 37
31 29 31
22 22 22
19 19 19
Track 5 Feet From Wall Single Unit Multiple Units
4’
5’ 6’
5’
Distance From Luminaire
45˚
Beam Center
Lamp Information:
2 X 39W T5 High Output
Mini Bi-Pin Fluorescent (9379)
1 x 39W T5 High Output
Mini Bi Pin Fluorescent (9380)
One Lamp, with louver,
aimed 45˚ down.
Two Lamps, without louver,
aimed 45˚ up.
Two Lamps, with louver,
aimed 45˚ down.
0˚ 30˚
90˚
60˚
180˚ 150˚
120˚
90˚
0˚ 30˚
90˚
60˚
Lytespan
®
Track Lighting System 9379
Page 2 of 2 PowerWash™ T5 3 Foot Suspended 39 Watt High Output Fluorescent
