Lytespan

3 3/4"

3 1/4"

6"

3 1/4"

6

3

1

2

4

7

®

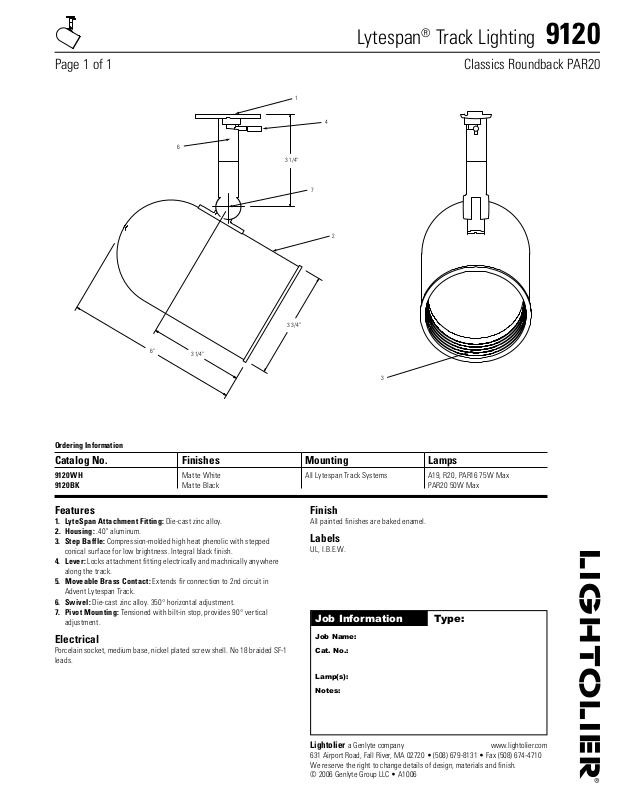

Track Lighting 9120

Page 1 of 1 Classics Roundback PAR20

Ordering Information

Catalog No. Finishes Mounting Lamps

9120WH
9120BK

Features

1. LyteSpan Attachment Fit ting: Die-cast zinc alloy.

2. Housing: .40" aluminum.

3. Step Baf fle: Compression-molded high heat phenolic with stepped

conical surface for low brightness. Integral black finish.

4. Lever: Locks attachment fitting electrically and machnically anywhere
along the track.

5. Moveable Brass Contact: Ex tends fir connection to 2nd circuit in
Advent Lytespan Track.

6. Swivel: Die-cast zinc alloy. 350° horizontal adjustment.

7. Pivot Mounting: Tensioned with bilt-in stop, provides 90° vertical

adjustment.

Matte White
Matte Black

Electrical

Porcelain socket, medium base, nickel plated screw shell. No 18 braided SF-1
leads.

All Lytespan Track Systems A19, R20, PAR16 75W Max

PAR20 50W Max

Finish

All painted finishes are baked enamel.

Labels

UL, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • A1006
