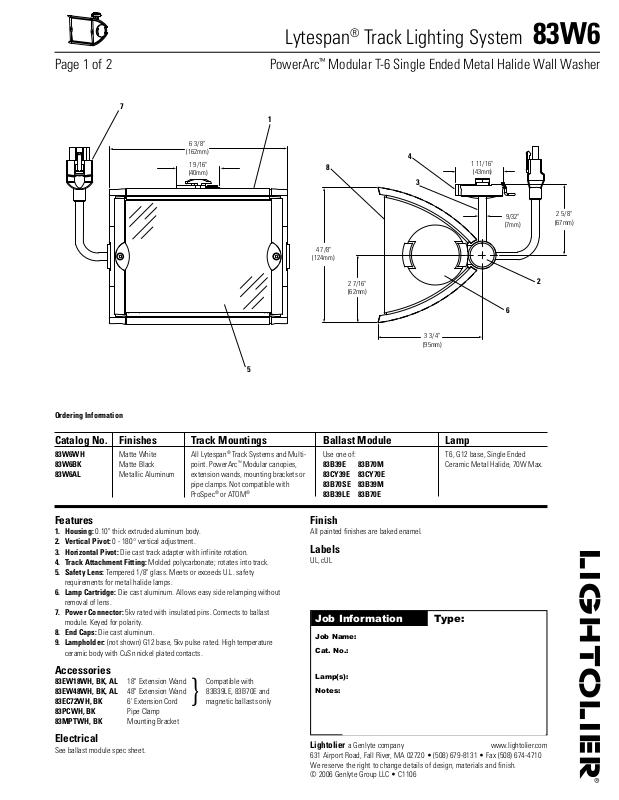

Lightolier 83W6 User Manual
Lytespan
1 9/16"
(40mm)
6 3/8"
(162mm)
9/32"
(7mm)
2 5/8"
(67mm)
3 3/4"
(95mm)
2 7/16"
(62mm)
4 7/8"
(124mm)
1 11/16"
(43mm)
6
2
8
3
4
1
7
5
®
Track Lighting System 83W6
Page 1 of 2 PowerArc™ Modular T-6 Single Ended Metal Halide Wall Washer
Ordering Information
Catalog No. Finishes Track Mountings Ballast Module Lamp
83W6WH Matte White All Lytespan® Track Systems and Multi- Use one of: T6, G12 base, Single Ended
83W6BK Matte Black point. PowerArc™ Modular canopies, 83B39E 83B70M Ceramic Metal Halide, 70W Max.
83W6AL Metallic Aluminum extension wands, mounting brackets or 83CY39E 83CY70E
pipe clamps. Not compatible with 83B70SE 83B39M
ProSpec® or ATOM® 83B39LE 83B70E
Features
1. Housing: 0.10" thick extruded aluminum body.
2. Vertical Pivot: 0 - 180° vertical adjustment.
3. Horizontal Pivot: Die cast track adapter with infinite rotation.
4. Track Attachment Fitting: Molded polycarbonate; rotates into track.
5. Safety Lens: Tempered 1/8" glass. Meets or exceeds U.L. safety
requirements for metal halide lamps.
6. Lamp Cartridge: Die cast aluminum. Allows easy side relamping without
removal of lens.
7. Power Connector: 5kv rated with insulated pins. Connects to ballast
module. Keyed for polarity.
8. End Caps: Die cast aluminum.
9. Lampholder: (not shown) G12 base, 5kv pulse rated. High temperature
ceramic body with CuSn nickel plated contacts.
Accessories
83EW18WH, BK, AL 18" Extension Wand
83EW48WH, BK, AL 48" Extension Wand
83EC72WH, BK 6' Extension Cord
83PCWH, BK Pipe Clamp
83MPTWH, BK Mounting Bracket
Compatible with
83B39LE, 83B70E and
}
magnetic ballasts only
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Electrical
See ballast module spec sheet.
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • C1106
Lytespan
4'
50°
6'
4'
50 f.c.
37 f.c.
50 f.c.
®
Track Lighting System 83W6
Page 2 of 2 PowerArc™ Modular T-6 Single Ended Metal Halide Wall Washer
Lighting Data
Footcandles on wall:
La mp Information:
70W CDM T6 Single Ended Metal Halide.
Initial Lumens: 6600
CRI: 82
Rated Avg. life: 9,000 - 15,000 hrs.
For 39W Multiply by 0.5.
EXAMPLE: With track located 4' from wall and multiple units spaced
8' on center and aimed 50˚ from horizontal, the illumination on wall 4'
from ceiling will be 50.c. beneath units and 37 f.c. between units.
Footcandles on Wall
Track 3 Feet From Wall Single Unit Multiple Units
0' 1' 2' 3' 4' 5'
1' 153 129 70 30 13 6
2' 127 111 73 38 16 6
3' 85 76 56 34 17 7
4' 57 51 40 28 16 9
5' 39 35 20 21 13 8
6' 26 25 20 16 11 7
Distance From Ceiling
7' 17 16 14 11 9 6
8' 12 11 10 8 7 5
9' 8 8 7 6 5 4
3'
Beam Center
50°
104 150 184
159 149 159
120 118 120
93 90 93
67 65 67
53 52 53
39 38 39
29 29 29
23 23 23
4'
169 98 169
139 109 139
99 91 99
76 73 76
54 52 54
43 41 43
31 31 31
23 23 23
19 19 19
5'
163 63 163
132 76 132
90 69 91
67 59 68
47 42 47
37 35 37
27 26 27
20 20 20
16 16 16
6'
Track 4 Feet From Wall Single Unit Multiple Units
0' 1' 2' 3' 4' 5'
1' 72 67 46 24 9 3
2' 84 76 56 36 19 9
3' 65 61 48 34 21 11
4' 48 45 38 29 19 12
5' 35 33 28 23 17 11
6' 26 25 21 18 14 10
Distance From Ceiling
7' 20 19 17 14 11 8
8' 15 14 13 11 9 7
9' 11 11 10 9 7 6
Footcandles are average and rounded off and data for multiple units are based on a minimum of five units.
For 39W: Multiply values by 0.5 Rated Lamp Life 9,000 - 12,000 Hrs.
4'
Beam Center
50°
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • C1106
77 57 77
91 72 91
74 69 74
60 57 60
47 45 47
38 36 38
31 28 31
24 22 24
19 18 19
15 14 15
12 11 12
10 9 10
6' *
76 23 76
87 37 87
67 41 67
50 37 50
38 32 38
31 26 31
24 21 24
19 17 19
15 14 15
12 11 12
10 9 10
8 7 8
Job Information Type:
8' * 10' *
75 7 75
86 15 86
66 21 66
49 22 49
36 21 36
28 19 28
21 16 21
16 13 16
13 11 13
10 9 10
8 7 8
6 6 6
