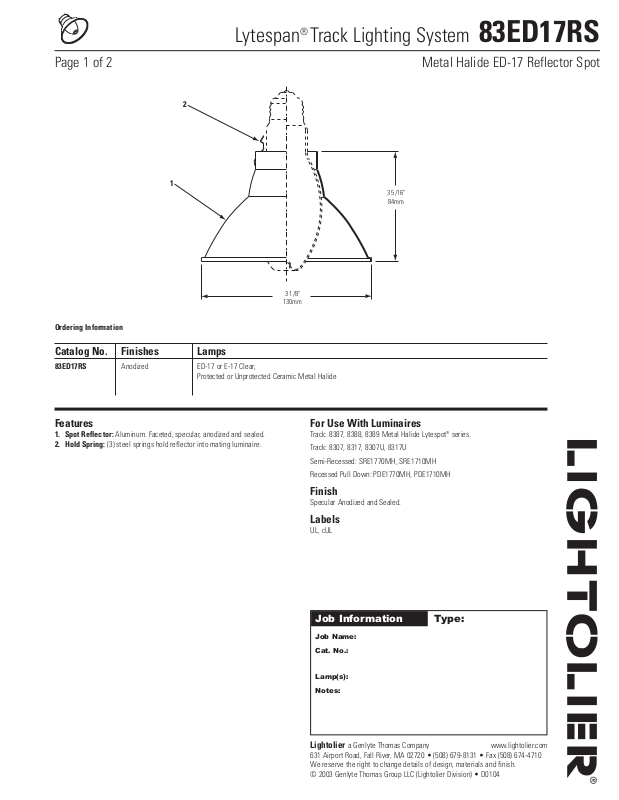

Lytespan
®
Track Lighting System 83ED17RS
Page 1 of 2 Metal Halide ED-17 Reflector Spot
Ordering Information
Catalog No. Finishes Lamps
83ED17RS Anodized ED-17 or E-17 Clear,
Protected or Unprotected Ceramic Metal Halide
Features
1. Spot Reflector: Aluminum. Faceted, specular, anodized and sealed.
2. Hold Spring: (3) steel springs hold reflector into mating luminaire.
For Use With Luminaires
Track: 8387, 8388, 8389 Metal Halide Lytespot®series.
Track: 8307, 8317, 8307U, 8317U
Semi-Recessed: SRE1770MH, SRE1710MH
Recessed Pull Down: PDE1770MH, PDE1710MH
Finish
Specular Anodized and Sealed.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2003 Genlyte Thomas Group LLC (Lightolier Division) • D0104
Lytespan
®
Track Lighting System 83ED17RS
Page 2 of 2 Metal Halide ED-17 Reflector Spot
AIMING ANGLE: 0° Horizontal 30° Horizontal 30° Vertical 45° Vertical
L Beam Length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle power drops
to 50% of the maximum. FC are the initial footcandles at the
center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for
availability and performance.
Spot - When used in Lytespot Series Luminaires. Data for 70W ED17 Master Color Ceramic Metal Halide Philips Protected (Clear) Lamp.
Lamp 0° Horizontal Aiming 30° Horizontal Aiming 30° Vertical Aiming 45° Vertical Aiming
Beam Spread
(To 50% CBCP) Life (Hrs.)
12˚ X 12˚
CBCP
38,807 10,000
For 50W: Multiply values by .69 Rated Lamp Life 10,000
For 100W: Multiply values by 1.5 Rated Lamp Life 12,500
Rated
DFC L W
10’ 388 2.1’ 2.1’
15’ 172 3.2’ 3.2’
20’ 97 4.2’ 4.2’
25’ 62 5.3’ 5.3’
DC FC L W
8’ 4.6’ 394 2.3’ 1.9’
12’ 6.9’ 175 3.4’ 2.9’
16’ 9.2’ 98 4.5’ 3.9’
20’ 11.5’ 63 5.6’ 4.9’
DC FC L W DC FC L W
4’ 6.9’ 303 3.5’ 1.7’
6’ 10.4’ 135 5.2’ 2.5’
8’ 13.9’ 76 7.0’ 3.4’
10’ 17.3’ 49 8.7’ 4.2’
6’ 6’ 381 2.6’ 1.8’
9’ 9’ 169 3.8’ 2.7’
12’ 12’ 95 5.1’ 3.6’
15’ 15’ 61 6.4’ 4.5’
Spot - When used in Metallics
®
Series Luminaires. Data for 70W ED17 Master Color Ceramic Metal Halide Philips Protected (Clear) Lamp.
Lamp 0° Horizontal Aiming 30° Horizontal Aiming 30° Vertical Aiming 45° Vertical Aiming
Beam Spread
(To 50% CBCP) Life (Hrs.)
11˚ X 11˚
CBCP
46,419 10,000
For 50W: Multiply values by .69 Rated Lamp Life 10,000
For 100W: Multiply values by 1.5 Rated Lamp Life 12,500
Rated
DFC L W
10’ 464 1.9’ 1.9’
15’ 206 2.9’ 2.9’
20’ 116 3.9’ 3.9’
25’ 74 4.8’ 4.8’
DC FC L W
8’ 4.6’ 471 2.1’ 1.8’
12’ 6.9’ 209 3.1’ 2.7’
16’ 9.2’ 118 4.1’ 3.6’
20’ 11.5’ 75 5.2’ 4.4’
DC FC L W DC FC L W
3’ 5.2’ 645 2.4’ 1.2’
4’ 6.9’ 363 3.2’ 1.5’
5’ 8.7’ 232 4.0’ 1.9’
6’ 10.4’ 161 4.8’ 2.3’
5’ 5’ 656 1.9’ 1.4’
7’ 7’ 335 2.7’ 1.9’
9’ 9’ 203 3.5’ 2.5’
11’ 11’ 136 4.3’ 3.0’
Spot - When used in 8307U and 8317U Luminaires. Data for 70W ED17 Master Color Ceramic Metal Halide Philips Protected (Clear) Lamp
for Enclosed Luminaires.
Lamp 0° Horizontal Aiming 30° Horizontal Aiming
Beam Spread
(To 50% CBCP) Life (Hrs.)
11˚ X 11˚
For 50W: Multiply values by .69
Rated Lamp Life 10,000
For 100W: Multiply values by 1.5
Rated Lamp Life 12,500
CBCP
41,791 10,000
Rated
DFC L W
10’ 418 1.9’ 1.9’
15’ 186 2.9’ 2.9’
20’ 104 3.9’ 3.9’
25’ 67 4.8’ 4.8’
DC FC L W
8’ 4.6’ 424 2.1’ 1.8’
12’ 6.9’ 189 3.1’ 2.7’
16’ 9.2’ 106 4.1’ 3.6’
20’ 11.5’ 68 5.2’ 4.4’
30° Vertical Aiming 45° Vertical Aiming
DC FC L W DC FC L W
3’ 5.2’ 580 2.4’ 1.2’
4’ 6.9’ 326 3.2’ 1.5’
5’ 8.7’ 206 4.0’ 1.9’
6’ 10.4’ 145 4.8’ 2.3’
5’ 5’ 591 1.9’ 1.4’
7’ 7’ 302 2.7’ 1.9’
9’ 9’ 182 3.5’ 2.5’
11’ 11’ 122 4.3’ 3.0’
