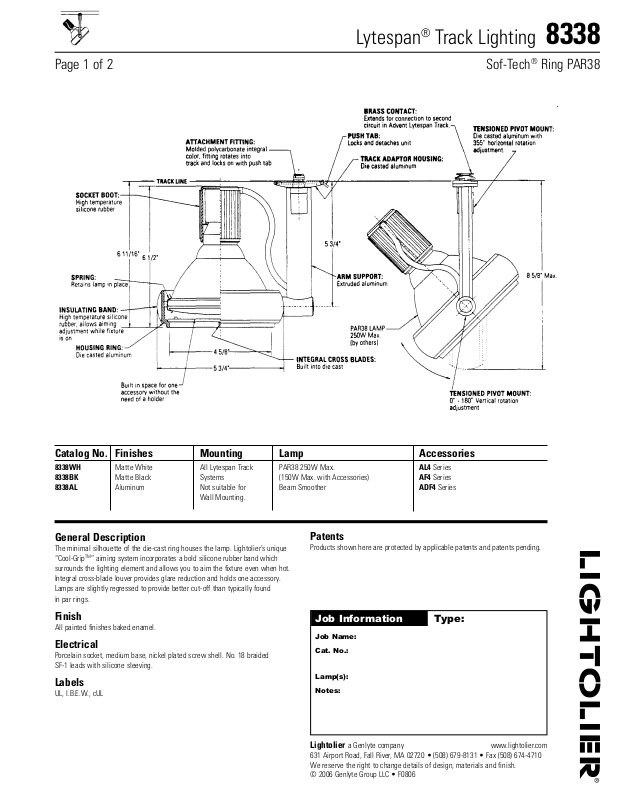

Lightolier 8338 User Manual
Lytespan
®
Track Lighting 8338
Page 1 of 2 Sof-Tech® Ring PAR38
Catalog No. Finishes Mounting Lamp Accessories
8338WH Matte White All Lytespan Track PAR38 250W Max. AL4 Series
8338BK Matte Black Systems (150W Max. with Accessories) AF4 Series
8338AL Aluminum Not suitable for Beam Smoother ADF4 Series
Wall Mounting.
General Description
The minimal silhouette of the die-cast ring houses the lamp. Lightolier’s unique
“Cool-GripTM” aiming system incorporates a bold silicone rubber band which
surrounds the lighting element and allows you to aim the fixture even when hot.
Integral cross-blade louver provides glare reduction and holds one accessory.
Lamps are slightly regressed to provide better cut-off than typically found
in par rings.
Finish
All painted finishes baked enamel.
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided
SF-1 leads with silicone sleeving.
Labels
UL, I.B.E.W., cUL
Patents
Products shown here are protected by applicable patents and patents pending.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • F0806
Lytespan
®
Track Lighting 8338
Page 2 of 2 Sof-Tech® Ring PAR38
Lighting Data
(FC) is the initial footcandles at the center of the beam.
(L) and (W) are to the point that the candlepower drops to 50% of maximum.
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • F0806
