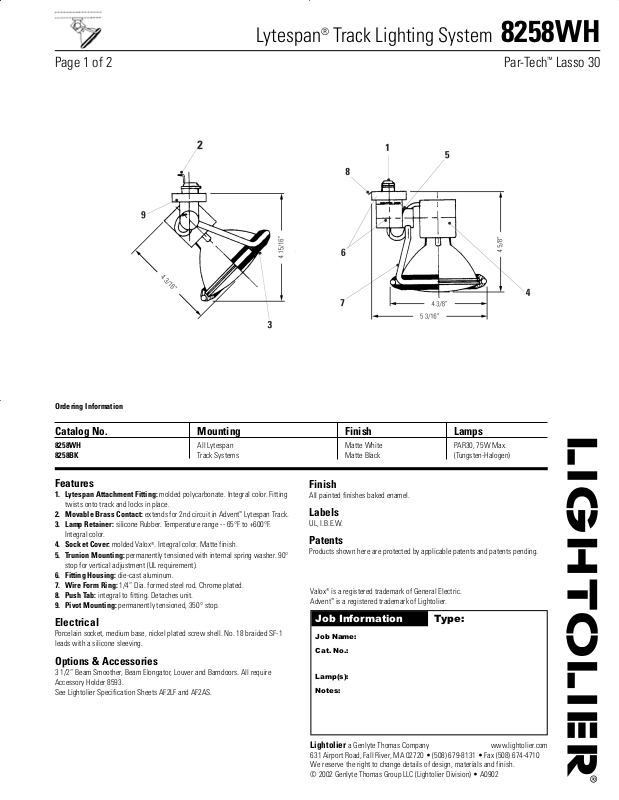

Lytespan

®

Track Lighting System 8258WH

Page 1 of 2 Par-Tech™Lasso 30

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Lytespan Attachment Fitting: molded polycarbonate. Integral color. Fitting

twists onto track and locks in place.

2. Movable Brass Contact: extends for 2nd circuit in Advent™Lytespan Track.

3. Lamp Retainer: silicone Rubber. Temperature range -- 65°F to +600°F.

Integral color.

4. Socket Cover: molded Valox®. Integral color. Matte finish.

5. Trunion Mounting: permanently tensioned with internal spring washer. 90°

stop for vertical adjustment (UL requirement).

6. Fitting Housing: die-cast aluminum.

7. Wire Form Ring: 1/4” Dia. formed steel rod. Chrome plated.

8. Push Tab: integral to fitting. Detaches unit.

9. Pivot Mounting: permanently tensioned, 350° stop.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1
leads with a silicone sleeving.

Options & Accessories

3 1/2” Beam Smoother, Beam Elongator, Louver and Barndoors. All require
Accessory Holder 8593.
See Lightolier Specification Sheets AF2LF and AF2AS.

Ordering Information

Catalog No. Mounting Finish Lamps

8258WH All Lytespan Matte White PAR30, 75W Max.
8258BK Track Systems Matte Black (Tungsten-Halogen)

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Patents

Products shown here are protected by applicable patents and patents pending.

Valox®is a registered trademark of General Electric.
Advent™is a registered trademark of Lightolier.

Lytespan

®

Track Lighting System 8258WH

Page 2 of 2 Par-Tech™Lasso 30

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Job Information Type:

17,000 3,000

50W PAR30 NSP

(Halogen-IR) 8°

Lighting Data

Aiming Angle: 0° 30°°, 45° or 60° Horizontal 30°°, 45° or 60° Vertical

LAMP 0° AIMING ANGLE A=30° AIMING ANGLE A=45° AIMING ANGLE A=60° AIMING ANGLE

L Beam length
W Beam Width
C Distance to center beam
D Distance
A Aiming angle
FC Footcandles

L and W are the outer points where

the candle power drops to 50% of
the maximum. FC are the intial foot­candles at the center of the beam.

8' 266 1.1' 1.1'

12' 118 1.7'

1.7'
16' 66 2.2' 2.2'
20' 43 2.8'

2.8'

7' 4.0' 225 1.3'

1.1'

10' 5.8' 110 1.9'

1.6'
13' 7.5' 65 2.4' 2.1'
16' 9.2' 43 3.0'

2.6'

5' 5.0' 240 1.4'

1.0'

7' 7.0' 123 2.0'

1.4'

9' 9.0' 74 2.5' 1.8'

11' 11.0' 50 3.1'

2.2'

3' 5.2' 236 1.7'

0.8'

4' 6.9' 133 2.3'

1.1'
5' 8.7' 85 2.8' 1.4'
6' 10.4' 59 3.4' 1.7'

7' 188 1.0' 1.0'

10' 92 1.4'

1.4'
13' 54 1.8' 1.8'
16' 36 2.2'

2.2'

6' 3.5' 166 1.1'

1.0'

9' 5.2' 74 1.7'

1.5'
12' 6.9' 41 2.2' 1.9'
15' 8.7' 27 2.8'

2.4'

4' 4.0' 203 1.1'

0.8'

6' 6.0' 90 1.7'

1.2'

8' 8.0' 51 2.2' 1.6'

10' 10.0' 33 2.8'

2.0'

2' 3.5' 288 1.1'

0.6'

3' 5.2' 128 1.7'

0.8'
4' 6.9' 72 2.3' 1.1'
5' 8.7' 46 2.8'

1.4'

9,200 2,000

50W PAR30

NSP (Halogen)

8°

4' 125 1.8' 1.8'
6' 58 2.7'

2.7'

8' 31 3.5' 3.5'

10' 20 4.4'

4.4'

3' 1.7' 144 1.8'

1.5'

5' 2.9' 52 3.0'

2.6'
7' 4.0' 27 4.2' 3.6'
9' 5.2' 16 5.4'

4.5'

3' 3.0' 79 2.8'

1.9'

4' 4.0' 44 3.7'

2.5'
5' 5.0' 28 4.7' 3.1'
6' 6.0' 20 5.6'

3.8'

1' 1.7' 250 2.1'

0.9'

2' 3.5' 63 4.2'

1.8'
3' 5.2' 28 6.2' 2.7'
4' 6.9' 16 8.3'

3.5'

2,000 2,000

50W PAR30

NFL (Halogen)

25°

DFC L W

D C FC L W D C FC L W D C FC L W

Beam Spread Beam Center Rated
50% Max. CP C.P. Candelas

Life-Hrs

1,400 2,500

50W PAR30
FL (Halogen)

35°

3' 158 1.9'

1.9'

5' 56 3.2'

3.2'
7' 29 4.4' 4.4'
9' 17 5.7'

5.7'

3' 1.7' 101 2.6'

2.2'

5' 2.9' 36 4.3'

3.6'
7' 4.0' 19 6.1' 5.1'
9' 5.2' 11 7.8'

6.6'

2' 2.0' 124 2.8'

1.8'

3' 3.0' 55 4.2'

2.7'
4' 4.0' 31 5.6' 3.8'
5' 5.0' 20 7.0'

4.5'

1' 1.7' 175 3.6'

1.3'

2' 3.5' 44 7.2'

2.5'
3' 5.2' 19 10.8' 3.8'
4' 6.9' 11 14.4' 5.0'

6' 83 2.7' 2.7'
8' 47 3.5'

3.5'
10' 30 4.4' 4.4'
12' 21 5.3'

5.3'

5' 2.9' 78 3.0'

2.6'

7' 4.0' 40 4.2'

3.6'

9' 5.2' 24 5.4' 4.6'

11' 6.4' 16 6.6'

5.6'

3' 3.0' 118 2.8'

1.9'

5' 5.0' 42 4.7'

3.1'
7' 7.0' 22 6.5' 4.4'
9' 9.0' 12 8.4'

5.6'

2' 3.5' 94 4.2'

1.8'

3' 5.2' 42 6.2'

2.7'
4' 6.9' 23 8.3' 3.5'
5' 8.7' 15 10.4'

4.4'

3,000 3,000

50W PAR30

NFL (Halogen-IR)

25°

3' 178 2.0' 2.0'
5' 64 3.3'

3.3'
7' 33 4.7' 4.7'
9' 20 6.0'

6.0'

3' 1.7' 115 2.8'

2.3'

5' 2.9' 42 4.6'

3.9'
7' 4.0' 21 6.5' 5.4'
9' 5.2' 13 8.3'

7.0'

2' 2.0' 141 3.0'

1.9'

3' 3.0' 63 4.5'

2.8'
4' 4.0' 35 6.0' 3.8'
5' 5.0' 23 7.5'

4.7'

1' 1.7 200 4.0'

1.3'

2' 3.5' 50 8.1'

2.7'
3' 5.2' 22 12.1' 4.0'
4' 6.9' 13 18.1'

5.4'

1,600 3,000

50W PAR30

FL (Halogen-IR)

37°

3,200 2,500

75W PAR30

NFL (Halogen)

30°

6' 89 3.2'

3.2'

8' 50 4.3'

4.3'
10' 32 5.4' 5.4'
12' 22 6.4'

6.4'

5' 2.9' 83 3.7'

3.1'

7' 4.0' 42 5.1'

4.3'

9' 5.2' 26 6.6' 5.6'

11' 6.4' 17 8.1'

6.8'

3' 3.0' 126 3.5'

2.3'

5' 5.0' 45 5.8'

3.8'
7' 7.0' 23 8.1' 5.3'
9' 9.0' 14 10.4'

6.8'

2' 3.5' 100 5.5'

2.1'

3' 5.2' 44 8.2'

3.2'
4' 6.9' 25 10.9' 4.3'
5' 8.7' 16 13.7' 5.4'

8' 219 1.3' 1.3'

12' 97 1.9'

1.9'
16' 55 2.5' 2.5'
20' 35 3.1'

3.1'

7' 4.0' 186 1.5'

1.3'

10' 5.8' 91 2.1'

1.8'
13' 7.5' 54 2.7' 2.4'
16' 9.2' 36 3.4'

2.9'

5' 5.0' 198 1.6'

1.1'

7' 7.0' 101 2.2'

1.6'

9' 9.0' 61 2.9' 2.0'

11' 11.0' 41 3.5'

2.4'

3' 5.2' 184 1.9'

0.9'

4' 6.8' 109 2.6'

1.3'
5' 8.7' 70 3.2' 1.6'
6' 10.4' 49 3.8'

1.9'

14,000 2,500

75W PAR30

NSP (Halogen)

9°

4' 125 2.9' 2.9'
6' 56 4.4'

4.4'

8' 31 5.8' 5.8'

10' 20 7.3'

7.3'

3' 1.7' 144 3.0'

2.5'

5' 2.9' 52 5.1'

4.2'
7' 4.0' 27 7.1' 5.9'
9' 5.2' 16 9.1'

7.6'

3' 3.0' 79 5.0'

3.1'

4' 4.0' 44 6.7'

4.1'
5' 5.0' 28 8.4' 5.1'
6' 6.0' 20 10.1'

6.1'

1' 1.7' 250 4.8'

1.5'

2' 3.5' 63 9.7'

2.9'
3' 5.2' 28 14.5' 4.4'
4' 6.9' 16 19.3'

5.8'

2,000 2,500

75W PAR30

FL (Halogen)

40°
