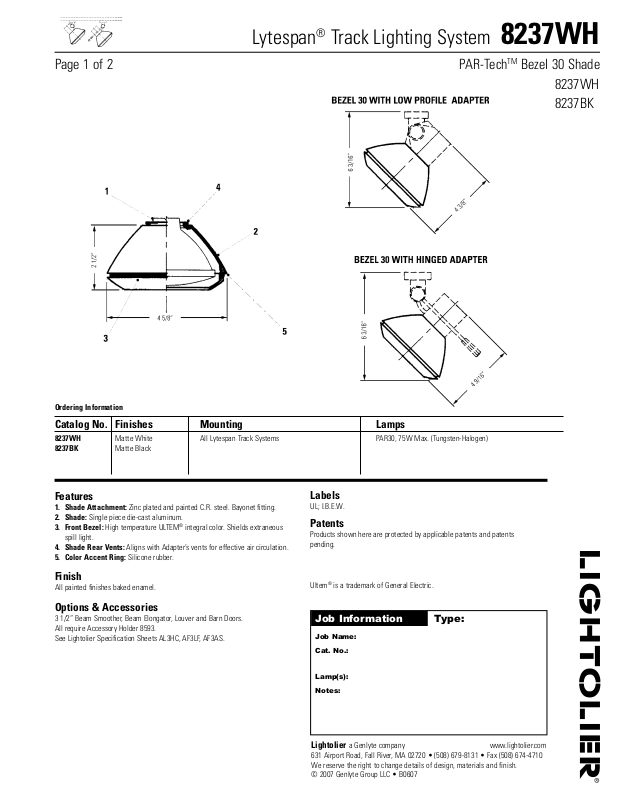

Lightolier 8237WH User Manual
Lytespan
®
Track Lighting System 8237WH
Page 1 of 2 PAR-TechTM Bezel 30 Shade
8237WH
8237BK
Ordering Information
Catalog No. Finishes Mounting Lamps
8237WH Matte White All Lytespan Track Systems PAR30, 75W Max. (Tungsten-Halogen)
8237BK Matte Black
Features
1. Shade Attachment: Zinc plated and painted C.R. steel. Bayonet fitting.
2. Shade: Single piece die-cast aluminum.
3. Front Bezel: High temperature ULTEM® integral color. Shields extraneous
spill light.
4. Shade Rear Vents: Aligns with Adapter’s vents for effective air circulation.
5. Color Accent Ring: Silicone rubber.
Finish
All painted finishes baked enamel.
Labels
UL; I.B.E.W.
Patents
Products shown here are protected by applicable patents and patents
pending.
Ultem® is a trademark of General Electric.
Options & Accessories
3 1/2” Beam Smoother, Beam Elongator, Louver and Barn Doors.
All require Accessory Holder 8593.
See Lightolier Specification Sheets AL3HC, AF3LF, AF3AS.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • B0607
Lytespan
17,000 3,000
50W PAR30 NSP
(Halogen-IR) 8°
8’ 266 1.1’ 1.1’
12’ 118 1.7’ 1.7’
16’ 66 2.2’ 2.2’
20’ 43 2.8’ 2.8’
7’ 4.0’ 225 1.3’ 1.1’
10’ 5.8’ 110 1.9’ 1.6’
13’ 7.5’ 65 2.4’ 2.1’
16’ 9.2’ 43 3.0’ 2.6’
5’ 5.0’ 240 1.4’ 1.0’
7’ 7.0’ 123 2.0’ 1.4’
9’ 9.0’ 74 2.5’ 1.8’
11’ 11.0’ 50 3.1’ 2.2’
3’ 5.2’ 236 1.7’ 0.8’
4’ 6.9’ 133 2.3’ 1.1’
5’ 8.7’ 85 2.8’ 1.4’
6’ 10.4’ 59 3.4’ 1.7’
7’ 188 1.0’ 1.0’
10’ 92 1.4’ 1.4’
13’ 54 1.8’ 1.8’
16’ 36 2.2’ 2.2’
6’ 3.5’ 166 1.1’ 1.0’
9’ 5.2’ 74 1.7’ 1.5’
12’ 6.9’ 41 2.2’ 1.9’
15’ 8.7’ 27 2.8’ 2.4’
4’ 4.0’ 203 1.1’ 0.8’
6’ 6.0’ 90 1.7’ 1.2’
8’ 8.0’ 51 2.2’ 1.6’
10’ 10.0’ 33 2.8’ 2.0’
2’ 3.5’ 288 1.1’ 0.6’
3’ 5.2’ 128 1.7’ 0.8’
4’ 6.9’ 72 2.3’ 1.1’
5’ 8.7’ 46 2.8’ 1.4’
9,200 2,000
50W PAR30
NSP (Halogen) 8°
4’ 125 1.8’ 1.8’
6’ 58 2.7’ 2.7’
8’ 31 3.5’ 3.5’
10’ 20 4.4’ 4.4’
3’ 1.7’ 144 1.8’ 1.5’
5’ 2.9’ 52 3.0’ 2.6’
7’ 4.0’ 27 4.2’ 3.6’
9’ 5.2’ 16 5.4’ 4.5’
3’ 3.0’ 79 2.8’ 1.9’
4’ 4.0’ 44 3.7’ 2.5’
5’ 5.0’ 28 4.7’ 3.1’
6’ 6.0’ 20 5.6’ 3.8’
1’ 1.7’ 250 2.1’ 0.9’
2’ 3.5’ 63 4.2’ 1.8’
3’ 5.2’ 28 6.2’ 2.7’
4’ 6.9’ 16 8.3’ 3.5’
2,000 2,000
50W PAR30
NFL (Halogen) 25°
D FC L W
D C FC L W D C FC L W D C FC L W
Beam Spread Beam Center Rated
50% Max. CP C.P. Candelas Life-Hrs
1,400 2,500
50W PAR30
FL (Halogen) 35°
3’ 158 1.9’ 1.9’
5’ 56 3.2’ 3.2’
7’ 29 4.4’ 4.4’
9’ 17 5.7’ 5.7’
3’ 1.7’ 101 2.6’ 2.2’
5’ 2.9’ 36 4.3’ 3.6’
7’ 4.0’ 19 6.1’ 5.1’
9’ 5.2’ 11 7.8’ 6.6’
2’ 2.0’ 124 2.8’ 1.8’
3’ 3.0’ 55 4.2’ 2.7’
4’ 4.0’ 31 5.6’ 3.8’
5’ 5.0’ 20 7.0’ 4.5’
1’ 1.7’ 175 3.6’ 1.3’
2’ 3.5’ 44 7.2’ 2.5’
3’ 5.2’ 19 10.8’ 3.8’
4’ 6.9’ 11 14.4’ 5.0’
6’ 83 2.7’ 2.7’
8’ 47 3.5’ 3.5’
10’ 30 4.4’ 4.4’
12’ 21 5.3’ 5.3’
5’ 2.9’ 78 3.0’ 2.6’
7’ 4.0’ 40 4.2’ 3.6’
9’ 5.2’ 24 5.4’ 4.6’
11’ 6.4’ 16 6.6’ 5.6’
3’ 3.0’ 118 2.8’ 1.9’
5’ 5.0’ 42 4.7’ 3.1’
7’ 7.0’ 22 6.5’ 4.4’
9’ 9.0’ 12 8.4’ 5.6’
2’ 3.5’ 94 4.2’ 1.8’
3’ 5.2’ 42 6.2’ 2.7’
4’ 6.9’ 23 8.3’ 3.5’
5’ 8.7’ 15 10.4’ 4.4’
3,000 3,000
50W PAR30
NFL (Halogen-IR) 25°
3’ 178 2.0’ 2.0’
5’ 64 3.3’ 3.3’
7’ 33 4.7’ 4.7’
9’ 20 6.0’ 6.0’
3’ 1.7’ 115 2.8’ 2.3’
5’ 2.9’ 42 4.6’ 3.9’
7’ 4.0’ 21 6.5’ 5.4’
9’ 5.2’ 13 8.3’ 7.0’
2’ 2.0’ 141 3.0’ 1.9’
3’ 3.0’ 63 4.5’ 2.8’
4’ 4.0’ 35 6.0’ 3.8’
5’ 5.0’ 23 7.5’ 4.7’
1’ 1.7 200 4.0’ 1.3’
2’ 3.5’ 50 8.1’ 2.7’
3’ 5.2’ 22 12.1’ 4.0’
4’ 6.9’ 13 18.1’ 5.4’
1,600 3,000
50W PAR30
FL (Halogen-IR) 37°
3,200 2,500
75W PAR30
NFL (Halogen) 30°
6’ 89 3.2’ 3.2’
8’ 50 4.3’ 4.3’
10’ 32 5.4’ 5.4’
12’ 22 6.4’ 6.4’
5’ 2.9’ 83 3.7’ 3.1’
7’ 4.0’ 42 5.1’ 4.3’
9’ 5.2’ 26 6.6’ 5.6’
11’ 6.4’ 17 8.1’ 6.8’
3’ 3.0’ 126 3.5’ 2.3’
5’ 5.0’ 45 5.8’ 3.8’
7’ 7.0’ 23 8.1’ 5.3’
9’ 9.0’ 14 10.4’ 6.8’
2’ 3.5’ 100 5.5’ 2.1’
3’ 5.2’ 44 8.2’ 3.2’
4’ 6.9’ 25 10.9’ 4.3’
5’ 8.7’ 16 13.7’ 5.4’
8’ 219 1.3’ 1.3’
12’ 97 1.9’ 1.9’
16’ 55 2.5’ 2.5’
20’ 35 3.1’ 3.1’
7’ 4.0’ 186 1.5’ 1.3’
10’ 5.8’ 91 2.1’ 1.8’
13’ 7.5’ 54 2.7’ 2.4’
16’ 9.2’ 36 3.4’ 2.9’
5’ 5.0’ 198 1.6’ 1.1’
7’ 7.0’ 101 2.2’ 1.6’
9’ 9.0’ 61 2.9’ 2.0’
11’ 11.0’ 41 3.5’ 2.4’
3’ 5.2’ 184 1.9’ 0.9’
4’ 6.8’ 109 2.6’ 1.3’
5’ 8.7’ 70 3.2’ 1.6’
6’ 10.4’ 49 3.8’ 1.9’
14,000 2,500
75W PAR30
NSP (Halogen) 9°
4’ 125 2.9’ 2.9’
6’ 56 4.4’ 4.4’
8’ 31 5.8’ 5.8’
10’ 20 7.3’ 7.3’
3’ 1.7’ 144 3.0’ 2.5’
5’ 2.9’ 52 5.1’ 4.2’
7’ 4.0’ 27 7.1’ 5.9’
9’ 5.2’ 16 9.1’ 7.6’
3’ 3.0’ 79 5.0’ 3.1’
4’ 4.0’ 44 6.7’ 4.1’
5’ 5.0’ 28 8.4’ 5.1’
6’ 6.0’ 20 10.1’ 6.1’
1’ 1.7’ 250 4.8’ 1.5’
2’ 3.5’ 63 9.7’ 2.9’
3’ 5.2’ 28 14.5’ 4.4’
4’ 6.9’ 16 19.3’ 5.8’
2,000 2,500
75W PAR30
FL (Halogen) 40°
FC
D
L
C
A
W
L
W
FC
D
FC
L
C
D
A
®
Track Lighting System 8237WH
Page 2 of 2 PAR-TechTM Bezel 30 Shade
Lighting Data
Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • B0607
