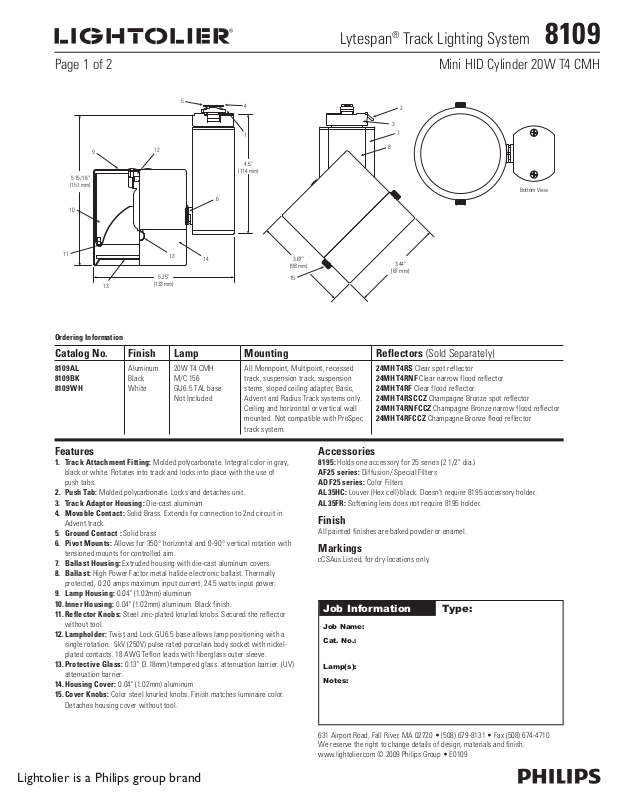

Lytespan
®
Track Lighting System 8109
Page 1 of 2 Mini HID Cylinder 20W T4 CMH
11
5 15/16"
(151 mm)
10
5
9
13
12
5.25"
(133 mm)
13
14
4
1
4.5"
(114 mm)
6
Ordering Information
Catalog No. Finish Lamp Mounting
8109AL
8109BK
8109WH
Aluminum
Black
White
20W T4 CMH
M/C 156
GU6.5 TAL base
Not Included
All Monopoint, Multipoint, recessed
track, suspension track, suspension
stems, sloped ceiling adapter, Basic,
Advent and Radius Track systems only.
Ceiling and horizontal or vertical wall
mounted. Not compatible with ProSpec
track system.
3.87"
(98 mm)
15
2
3
7
8
Bottom View
3.44"
(87 mm)
Reflectors (Sold Separately)
24MHT4RS Clear spot reflector
24MHT4RNF Clear narrow flood reflector
24MHT4RF Clear flood reflector
24MHT4RSCCZ Champagne Bronze spot reflector
24MHT4RNFCCZ Champagne Bronze narrow flood reflector
24MHT4RFCCZ Champagne Bronze flood reflector
Features
1. Track At tachment Fitting: Molded polycarbonate. Integral color in gray,
black or white. Rotates into track and locks into place with the use of
push tabs.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum
4. Movable Contact: Solid Brass. Extends for connection to 2nd circuit in
Advent track.
5. Ground Contact : Solid brass
6. Pivot Mounts: Allows for 350° horizontal and 0-90° vertical rotation with
tensioned mounts for controlled aim.
7. Ballast Housing: Extruded housing with die-cast aluminum covers.
8. Ballast: High Power Factor metal halide electronic ballast. Thermally
protected, 0.20 amps maximum input current, 24.5 watts input power.
9. Lamp Housing: 0.04" (1.02mm) aluminum
10. Inner Housing: 0.04" (1.02mm) aluminum. Black finish.
11. Reflector Knobs: Steel zinc-plated knurled knobs. Secured the reflector
without tool.
12. Lampholder: Twist and Lock GU6.5 base allows lamp positioning with a
single rotation. 5kV (250V) pulse rated porcelain body socket with nickelplated contacts. 18 AWG Teflon leads with fiberglass outer sleeve.
13. Protective Glass: 0.13" (3.18mm) tempered glass. attenuation barrier. (UV)
attenuation barrier.
14. Housing Cover: 0.04" (1.02mm) aluminum
15. Cover Knobs: Color steel knurled knobs. Finish matches luminaire color.
Detaches housing cover without tool.
Accessories
8195: Holds one accessory for 25 series (2 1/2" dia.)
AF25 series: Diffusion/ Special Filters
ADF25 series: Color Filters
AL35HC: Louver (Hex cell) black. Doesn’t require 8195 accessory holder.
AL35FR: Softening lens does not require 8195 holder.
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Listed, for dr y locations only.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • E0109
Lightolier is a Philips group brand
Lytespan
®
Track Lighting System 8109
Page 2 of 2 Mini HID Cylinder 20W T4 CMH
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
17773 12,000
24MHT4RS
10°
24MHT4RNF
23˚
24MHT4RF
35˚
Rated
CBCP
4017
12,000
1859 12,000
D FC L W
10 178 1.7 1.7
12 123 2.1 2.1
14 91 2.4 2.4
16 69 2.8 2.8
D FC L W
6 112 2.4 2.4
8 63 3.3 3.3
10 40 4.1 4.1
12 28 4.9 4.9
D FC L W
6 52 3.8 3.8
7 38 4.4 4.4
8 29 5.0 5.0
9 23 5.7 5.7
D FC C L W
4 6.9 139 2.9 1.4
5 8.7 89 3.6 1.7
6 10.4 62 4.3 2.1
7 12.1 45 5.0 2.4
D FC C L W
6 3.5 72 3.3 2.8
8 4.6 41 4.4 3.8
10 5.8 26 5.5 4.7
12 6.9 18 6.6 5.6
D FC C L W
5 2.9 48 4.3 3.6
6 3.5 34 5.2 4.4
7 4.0 25 6.1 5.1
8 4.6 19 7.0 5.8
D FC C L W
4 6.9 139 2.9 1.4
5 8.7 89 3.6 1.7
6 10.4 62 4.3 2.1
7 12.1 45 5.0 2.4
D FC C L W
2 3.5 126 3.7 1.6
3 5.2 56 5.6 2.4
4 6.9 31 7.4 3.3
5 8.7 20 9.3 4.1
D FC C L W
1.5 2.6 103 5.4 1.9
2 3.5 58 7.2 2.5
3 5.2 26 10.8 3.8
4 6.9 15 14.4 5.0
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reector "warms" the beam to 2700K.
D FC C L W
5 5.0 251 1.8 1.2
6 6.0 175 2.1 1.5
7 7.0 128 2.5 1.7
8 8.0 98 2.8 2.0
D FC C L W
3 3.0 158 2.5 1.7
4 4.0 89 3.4 2.3
5 5.0 57 4.2 2.9
6 6.0 39 5.1 3.5
D FC C L W
2 2.0 164 2.8 1.8
3 3.0 73 4.2 2.7
4 4.0 41 5.6 3.6
5 5.0 26 7.0 4.5
