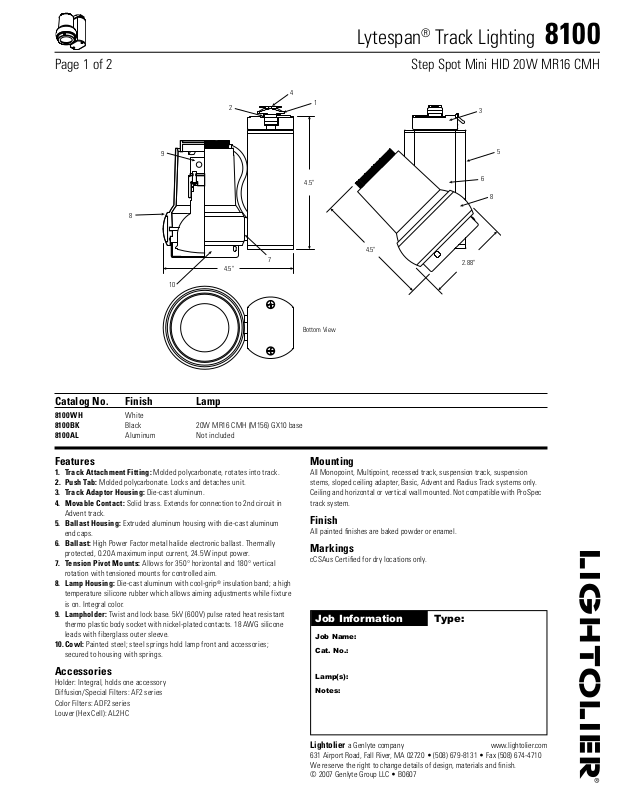

Lightolier 8100 User Manual
Lytespan
Bottom View
4.5"
8
7
9
2
1
4.5"
4.5"
2.88"
3
5
8
6
4
10
®
Track Lighting 8100
Page 1 of 2 Step Spot Mini HID 20W MR16 CMH
Catalog No. Finish Lamp
8100WH White
8100BK Black 20W MR16 CMH (M156) GX10 base
8100AL Aluminum Not included
Features
1. Track At tachment Fitting: Molded polycarbonate, rotates into track.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum.
4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in
Advent track.
5. Ballast Housing: Extruded aluminum housing with die-cast aluminum
end caps.
6. Ballast: High Power Factor metal halide electronic ballast. Thermally
protected, 0.20A maximum input current, 24.5W input power.
7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical
rotation with tensioned mounts for controlled aim.
8. Lamp Housing: Die-cast aluminum with cool-grip® insulation band; a high
temperature silicone rubber which allows aiming adjustments while fixture
is on. Integral color.
9. Lampholder: Twist and lock base. 5kV (600V) pulse rated heat resistant
thermo plastic body socket with nickel-plated contacts. 18 AWG silicone
leads with fiberglass outer sleeve.
10. Cowl: Painted steel; steel springs hold lamp front and accessories;
secured to housing with springs.
Accessories
Holder: Integral, holds one accessory
Diffusion/Special Filters: AF2 series
Color Filters: ADF2 series
Louver (Hex Cell): AL2HC
Mounting
All Monopoint, Multipoint, recessed track, suspension track, suspension
stems, sloped ceiling adapter, Basic, Advent and Radius Track systems only.
Ceiling and horizontal or ver tical wall mounted. Not compatible with ProSpec
track system.
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Certified for dr y locations only.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • B0607
Lytespan
®
Track Lighting 8100
Page 2 of 2 Step Spot Mini HID 20W MR16 CMH
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
9000 9000
GE CMH20MR16/SP
12°
2900 9000
GE CMH20MR16/FL
25°
1500 9000
GE CMH20MR16/WFL
40°
CBCP
Rated
D FC L W D C FC L W D C FC L W D C FC L W
8' 141 1.7' 1.7'
10' 90 2.1' 2.1'
12' 63 2.5' 2.5'
14' 46 2.9' 2.9'
6' 81 2.7' 2.7 '
8' 45 3.5' 3. 5'
10' 29 4.4' 4.4'
12' 20 5.3' 5.3'
6' 42 4.4' 4.4'
8' 23 5.8' 5.8 '
10' 15 7.3' 7.3'
12' 10 8.7' 8.7'
8' 4.6' 91 2. 3' 1.9'
10' 5.8' 5 8 2.8' 2.4'
12' 6.9' 41 3.4' 2. 9'
14' 8.1' 3 0 3. 9' 3.4'
6' 3.5' 52 3. 6' 3.1'
8' 4.6' 29 4. 8' 4.1'
10' 5.8' 19 6.0' 5.1'
12' 6.9' 13 7.2' 6.1'
4' 2.3' 61 4.1' 3.4'
6' 3.5' 27 6.1' 5.0'
8' 4.6' 15 8.1' 6.7'
10' 5.8' 10 10.2 ' 8.4'
3' 5.2' 125 2.6' 1.3'
4' 6.9' 70 3.5' 1.7'
5' 8.7' 45 4. 3' 2.1'
6' 10.4' 31 5.2' 2.5'
2' 3.5' 91 4. 2' 1.8'
3' 5.2' 40 6. 2' 2.7'
4' 6.9' 23 8. 3' 3.5'
5' 8.7' 15 10.4' 4.4'
2' 3.5' 47 9.7' 2.9 '
3' 5.2' 21 14.5' 4.4'
4' 6.9' 12 19.3' 5.8'
5' 8.7' 8 24.2' 7.3'
4' 4.0' 199 1.7' 1.2'
5' 5.0' 127 2.1' 1.5'
6' 6.0' 88 2.6' 1.8 '
7' 7.0' 65 3. 0' 2.1'
3' 3.0' 114 2.8 ' 1.9'
4' 4.0' 64 3.7' 2.5'
5' 5.0' 41 4.7' 3.1'
6' 6.0' 28 5. 6' 3.8'
2' 2.0' 133 3 .4' 2.1'
3' 3.0' 59 5. 0' 3.1'
4' 4.0' 33 6.7' 4.1'
5' 5.0' 21 8 .4' 5.1'
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • B0607
