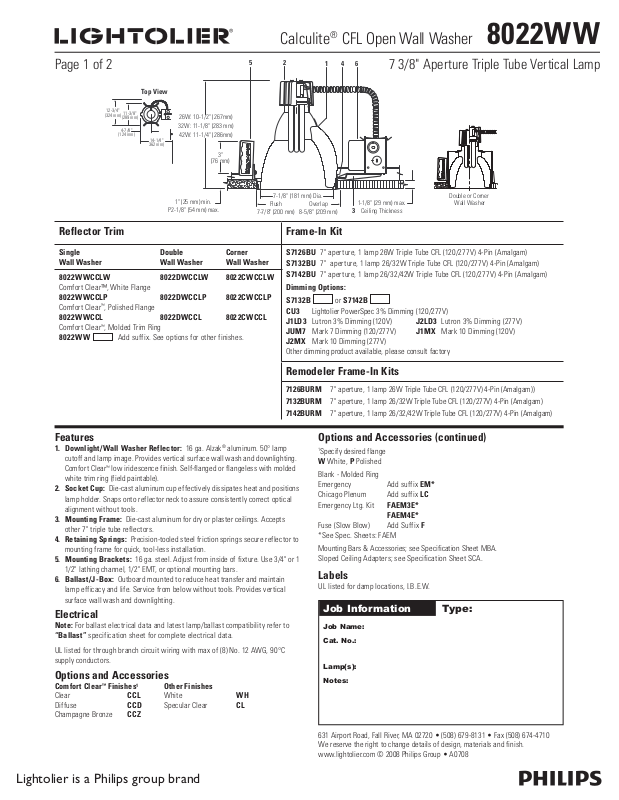

Lightolier 8022WW User Manual
Calculite
1" (25 mm) min.
P2-1/8" (54 mm) max.
3"
(76 mm)
Flush
7-7/8" (200 mm)
12-3/4"
(324 mm)
11-3/8"
(289 mm)
4-7/8"
(124 mm)
Top View
14-1/4"
362 mm)
2
5
Overlap
8-5/8" (209 mm)
3
1-1/8" (29 mm) max.
Ceiling Thickness
64
1
7-1/8" (181 mm) Dia.
26W: 10-1/2" (267mm)
32W: 11-1/8" (283 mm)
42W: 11-1/4" (286mm)
Double or Corner
Wall Washer
®
CFL Open Wall Washer 8022WW
Page 1 of 2 7 3/8" Aperture Triple Tube Vertical Lamp
Reflector Trim Frame-In Kit
Single Double Corner
Wall Washer Wall Washer Wall Washer
8022WWCCLW 8022DWCCLW 8022CWCCLW
Comfort Clear™, White Flange
8022WWCCLP 802 2DWCCLP 8022CWCCLP
Comfort Clear™, Polished Flange
8022WWCCL 8022DWCCL 8022CWCCL
Comfort Clear™, Molded Trim Ring
8022WW
Add suffix. See options for other finishes.
Features
1. Downlight/Wall Washer Reflector: 16 ga. Alzak® aluminum. 50° lamp
cutoff and lamp image. Provides vertical surface wall wash and downlighting.
Comfort Clear™ low iridescence finish. Self-flanged or flangeless with molded
white trim ring (field paintable).
2. Socket Cup: Die-cast aluminum cup effectively dissipates heat and positions
lamp holder. Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Accepts
other 7" triple tube reflectors.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or 1
1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools. Provides vertical
surface wall wash and downlighting.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
“Ballast” specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90°C
supply conductors.
Options and Accessories
Comfort Clear™ Finishes
Clear CCL White WH
Diffuse CCD Specular Clear CL
Champagne Bronze CCZ
1
Other Finishes
S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S713 2BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7142BU 7" aper ture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S7132B or S7142B
CU3 Lightolier PowerSpec 3% Dimming (120/277V)
J1LD3 Lutron 3% Dimming (120V) J2LD3 Lutron 3% Dimming (277V)
JUM7 Mark 7 Dimming (120/277V) J1MX Mark 10 Dimming (120V)
J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
7126BURM 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))
7132BURM 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
7142BURM 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
1
Specify desired flange
W White, P Polished
Blank - Molded Ring
Emergency Add suffix EM*
Chicago Plenum Add suffix LC
Emergency Ltg. Kit FAEM3E*
FAEM4E*
Fuse (Slow Blow) Add Suf fix F
*See Spec. Sheets: FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
UL listed for damp locations, I.B.E.W.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0708
Calculite
Lighting Data
Footcandles On Wall: Multiple 42W Triple Tube UnitsFootcandles On Wall: Multiple 42W Triple Tube UnitsFootcandles On Wall: Multiple 42W Triple Tube UnitsFootcandles On Wall: Multiple 42W Triple Tube Units
3'
15 f.c.
15 f.c.
3'
5'
5'
10 f.c.
INSIDE CORNER
WALL WASHER
WALL
WASHER
DOUBLE
WALL WASHER
WALL
WALL
WALL
WALL
®
CFL Open Wall Washer 8022WW
Page 2 of 2 7 3/8" Aperture Triple Tube Vertical Lamp
Lighting Data
Footcandles on Wall: Multiple 42W Triple Tube Units.
2’ From Wall-2’ On Center
2
1 42 43 42
2 46 45 46
3 43 41 44
4 39 37 39
5 32 32 33
6 26 26 26
7 21 21 21
8 17 17 17
9 14 14 14
Distance From Ceiling in Feet
3’ From Wall-3’ On Center
3
1 14 14 14
2 22 22 22
3 21 20 21
4 20 19 20
5 20 18 20
6 18 17 18
7 16 16 16
8 14 14 14
9 13 12 13
Distance From Ceiling in Feet
2’ From Wall-3’ On Center
3
1 32 24 32
2 34 26 34
3 31 27 31
4 27 25 27
5 22 21 22
6 18 18 18
7 15 14 15
8 12 12 12
9 10 10 10
Distance From Ceiling in Feet
3’ From Wall-4’ On Center
4
1 12 10 12
2 17 15 17
3 16 14 16
4 16 14 16
5 15 14 15
6 14 13 14
7 12 12 12
8 11 11 11
9 10 10 10
Distance From Ceiling in Feet
2’ From Wall-4’ On Center
4
1 30 13 30
2 31 15 31
3 28 16 28
4 21 18 21
5 18 16 18
6 14 13 14
7 11 11 11
8 9 9 9
9 8 8 8
Distance From Ceiling in Feet
3’ From Wall-5’ On Center
5
1 11 7 11
2 16 10 16
3 15 10 15
4 14 10 14
5 13 11 13
6 11 10 11
7 10 9 10
8 9 9 9
9 8 8 8
Distance From Ceiling in Feet
EXAMPLE: With multiple clear
reflector units located 3' from wall
and spaced 5' on center (matching
downlights 5' on center), the
illumination on the wall 3' down
from ceiling will be 15 f.c. beneath
units and 10 f.c. between units.
Footcandle values are averaged
and rounded off and are based on
a minimum of five units.
CONVERSION FACTORS (Clear):
32W, F.C. x 0.75
26W, F.C. x 0.55
3’ From Wall-6’ On Center
6
1 11 5 11
2 15 7 15
3 14 7 14
4 13 7 13
5 12 8 12
6 10 8 10
7 9 8 9
8 8 7 8
9 7 6 7
Distance From Ceiling in Feet
Candlepower Distribution Downlight Spacing Ratio 0.9 Coefficients of Utilization
Downlight Wall Washer
Side Side
80 70 50 30 10 0
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
1 .54 .53 .52 .53 .52 .51 .51 .50 .50 .49 .49 .48 .48 .47 .47 .46
2 .51 .49 .47 .50 .48 .46 .48 .47 .45 .47 .46 .44 .45 .44 .44 .43
3 .47 .45 .43 .47 .44 .43 .45 .43 .42 .44 .43 .41 .43 .42 .41 .40
4 .44 .42 .40 .44 .41 .39 .43 .41 .39 .42 .40 .39 .41 .39 .38 .37
5 .42 .39 .37 .41 .38 .36 .40 .38 .36 .39 .37 .36 .39 .37 .35 .35
6 .39 .36 .34 .39 .36 .34 .38 .36 .34 .37 .35 .34 .37 .35 .33 .33
7 .37 .34 .32 .36 .34 .32 .36 .33 .32 .35 .33 .31 .35 .33 .31 .30
8 .35 .32 .30 .34 .31 .30 .34 .31 .29 .33 .31 .29 .33 .31 .29 .28
9 .32 .30 .28 .32 .29 .28 .32 .29 .27 .31 .29 .27 .31 .29 .27 .27
ROOM CAVITY RATIO
10 .31 .28 .26 .30 .28 .26 .30 .27 .26 .30 .27 .26 .29 .27 .25 .25
Lightolier is a Philips group brand
% EFFECTIVE CEILING CAVITY REFLECTANCE
WALL REFLECTANCE
20% FLOOR CAVITY REFLECTANCE
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0708
