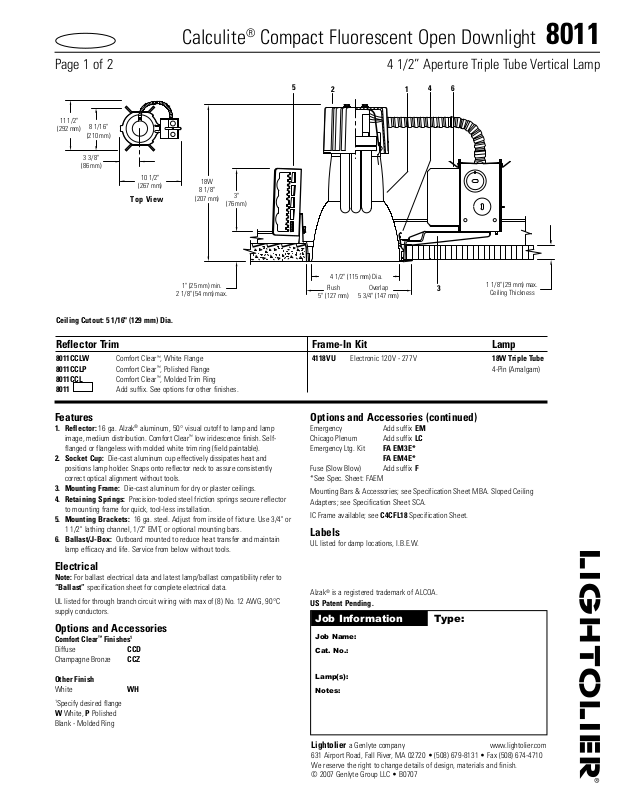

Lightolier 8011 User Manual

Calculite

Top View

5

2 1

4 6

3

4 1/2" (115 mm) Dia.

Flush

5" (127 mm)

Overlap

5 3/4" (147 mm)

18W

8 1/8"

(207 mm)

3"

(76 mm)

1" (25 mm) min.

2 1/8" (54 mm) max.

1 1/8" (29 mm) max.

Ceiling Thickness

10 1/2"

(267 mm)

3 3/8"

(86 mm)

11 1/2"

(292 mm)

8 1/16"

(210 mm)

®

Compact Fluorescent Open Downlight 8011

Page 1 of 2 4 1/2” Aperture Triple Tube Vertical Lamp

Ceiling Cutout: 5 1/16" (129 mm) Dia.

Reflector Trim Frame-In Kit Lamp

8011CCLW Comfort Clear™, White Flange 4118VU Electronic 120V - 277V 18W Triple Tube
8011CCLP Comfort Clear™, Polished Flange 4-Pin (Amalgam)
8011CCL Comfort Clear™, Molded Trim Ring
8011

Features

1. Reflector: 16 ga. Alzak® aluminum, 50° visual cutoff to lamp and lamp

image, medium distribution. Comfort Clear™ low iridescence finish. Self­flanged or flangeless with molded white trim ring (field paintable).

2. Socket Cup: Die-cast aluminum cup effectively dissipates heat and

positions lamp holder. Snaps onto reflector neck to assure consistently
correct optical alignment without tools.

3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings.

4. Retaining Springs: Precision-tooled steel friction springs secure reflector

to mounting frame for quick, tool-less installation.

5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or

1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain

lamp efficacy and life. Service from below without tools.

Add suffix. See options for other finishes.

Options and Accessories (continued)

Emergency Add suffix EM
Chicago Plenum Add suffix LC
Emergency Ltg. Kit FA EM3E*
FA EM4E*
Fuse (Slow Blow) Add suffix F
*See Spec. Sheet: FAEM

Mounting Bars & Accessories; see Specification Sheet MBA. Sloped Ceiling
Adapters; see Specification Sheet SCA.

IC Frame available; see C4CFL18 Specification Sheet.

Labels

UL listed for damp locations, I.B.E.W.

Electrical

Note: For ballast electrical data and latest lamp/ballast compatibility refer to
“Ballast” specification sheet for complete electrical data.

UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90°C
supply conductors.

Options and Accessories

Comfort Clear™ Finishes

Diffuse CCD
Champagne Bronze CCZ

Other Finish

White WH

1

W White, P Polished
Blank - Molded Ring

Specify desired flange

1

Alzak® is a registered trademark of ALCOA.

US Patent Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • B0707

®

80% Ceiling; 50% Wall; 20% Floor

RCR = 10

RCR = 5

RCR = 1

1200 Lumens Per Lamp

ROOM SURFACE REFLECTANCES:

CENTER TO CENTER DISTANCE OF FIXTURE IN FEET

INITIAL FOOTCANDLES

10

3

10

5

7654

20 30 40 50

20

15

25

30

35

40

10

100

98

60 70 9080 110

(Rm. width = Mtg. Ht. above work plane)

(Rm. width = 2 x Mtg. Ht. above work plane)

(Rm. width = 10 x Mtg. Ht. above work plane)

AREA PER FIXTURE IN SQUARE FEET

75°

0°

5°

15° 25°

35°

45°

55°

65°

85°

400

200

Calculite

Calculite

Page 1 of 2 4 1/2” Aperture Triple Tube Vertical Lamp

Page 2 of 2 4 1/2” Aperture Triple Tube Vertical Lamp

®

Compact Fluorescent Open Downlight 8011

Compact Fluorescent Open Downlight 8011

Quick Calculator

This quick calculator chart determines the number and spacing of 1 lt.-18W PL-T units
with clear reflector, for any level of illumination.

Spacing Ratio = 1.2

CERTIFIED TEST REPORT NO. 0662FR
COMPUTED BY LSI PROGRAM **TEST-LITE**
CALCULITE RECESSED COMPACT FLUORESCENT OPEN DOWNLIGHT,
4 1/2” DIA. APERTURE CLEAR REFLECTOR
1-18W PLT LAMP. LUMEN RATING = 1200 LMS.

CANDLEPOWER SUMMARY

ANGLE MEAN CP LUMENS
0 350
5 368 35
10 394
15 394 110
20 374
25 343 158
30 305
35 254 155
40 171
45 36 48
50 5
55 1 2
60 0
65 0 0
70 0
75 0 0
80 0
85 0 0
90 0

** Efficiency = 42.38% **

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 303 25.30 59.81
0-40 458 38.18 90.25
0-60 507 42.30 100.00
0-90 507 42.30 100.00
40-90 49 4.13 9.75
60-90 0 .00 .00
90-180 0 .00 .00
0-180 507 42.30 100.00

Coefficients of Utilization

CC

EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

WALL 80 70 50 30 10

ZONAL CAVITY METHOD

RCR 50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .47 .46 .46 .47 .46 .45 .45 .44 .43 .43 .43 .42 .42 .41 .41 .40
2 .44 .43 .42 .44 .42 .41 .42 .41 .40 .41 .40 .39 .40 .39 .39 .38
3 .42 .40 .38 .41 .39 .38 .40 .39 .37 .39 .38 .37 .38 .37 .36 .36
4 .39 .37 .36 .39 .37 .35 .38 .36 .35 .37 .36 .35 .36 .35 .34 .33
5 .37 .34 .33 .36 .34 .33 .36 .34 .32 .35 .33 .32 .34 .33 .32 .31
6 .35 .32 .31 .34 .32 .30 .34 .32 .30 .33 .31 .30 .33 .31 .30 .29
7 .32 .30 .28 .32 .30 .28 .32 .29 .28 .31 .29 .28 .31 .29 .28 .27
8 .30 .28 .26 .30 .28 .26 .30 .27 .26 .29 .27 .26 .29 .27 .26 .25
9 .28 .26 .24 .28 .26 .24 .28 .25 .24 .27 .25 .24 .27 .25 .24 .23
10 .26 .24 .22 .26 .24 .22 .26 .24 .22 .25 .23 .22 .25 .23 .22 .21
