Lightolier 7589AZ User Manual
I
(
INSTRUCTION SHEET NO

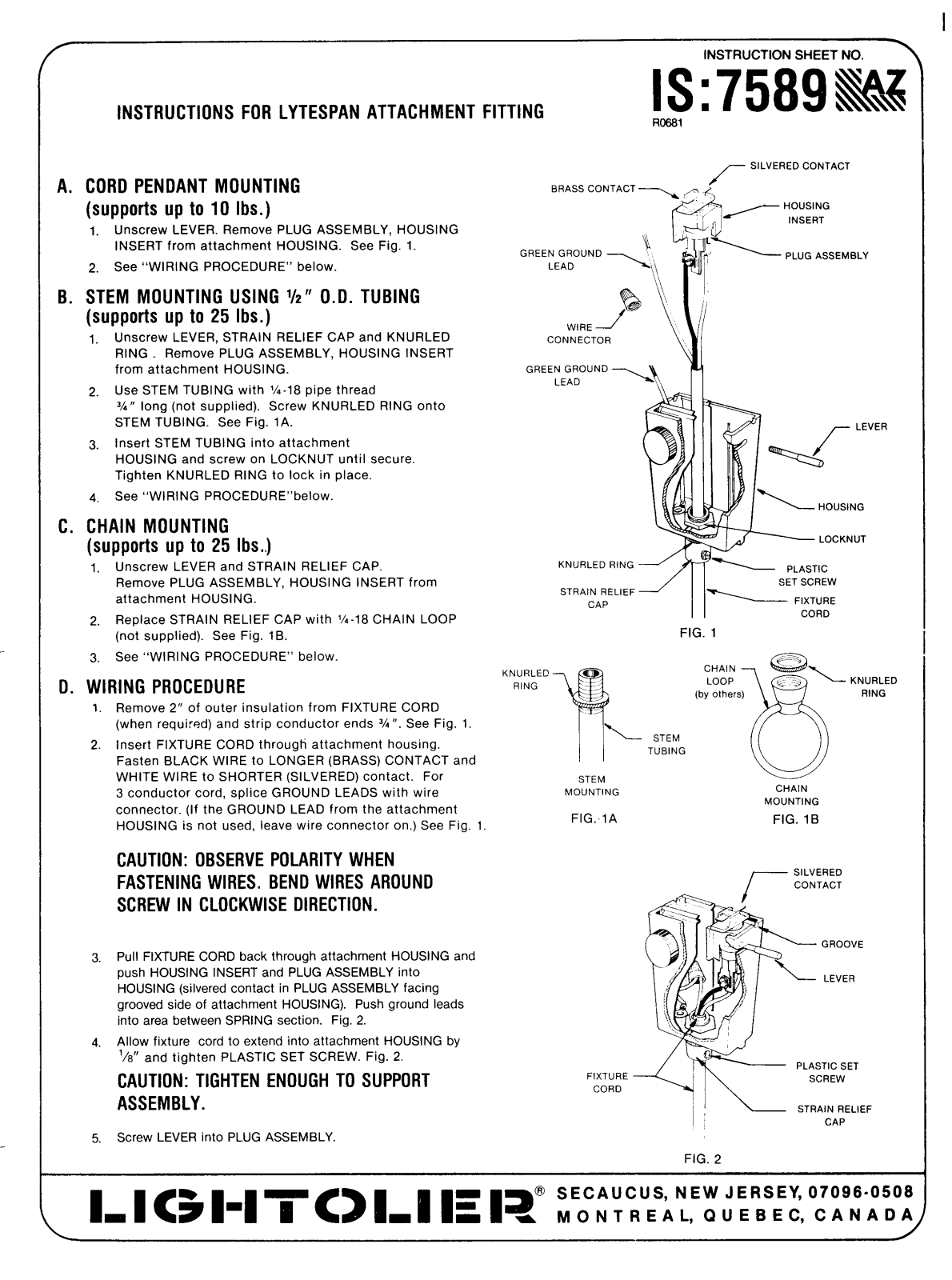

INSTRUCTIONS FOR LYTESPAN ATTACHMENT FITTING
A.
CORD PENDANT MOUNTING
(supports up to 10 Ibs.)
I. Unscrew LEVER. Remove PLUG ASSEMBLY, HOUSING
INSERT from attachment HOUSING. See Fig. 1.
2. See “WIRING PROCEDURE” below.
B.
STEM MOUNTING USING 1/2” O.D. TUBING
(supports up to 25 Ibs.)
I. Unscrew LEVER, STRAIN RELIEF CAP and KNURLED
RING Remove PLUG ASSEMBLY, HOUSING INSERT
from attachment HOUSING.
2. Use STEM TUBING with M-18 pipe thread
3A” long (not supplied). Screw KNURLED RING onto
STEM TUBING. See Fig. 1A.
3. Insert STEM TUBING into attachment
HOUSING and screw on LOCKNUT until secure.
Tighten KNURLED RING to lock in place.
4. See “WIRING PROCEDURE’’ below.
c.
CHAIN MOUNTING
(supports up to 25 Ibs..)
1.
Unscrew LEVER and STRAIN RELIEF CAP.
Remove PLUG ASSEMBLY, HOUSING INSERT from
attachment HOUSING.
2. Replace STRAIN RELIEF CAP with %-18 CHAIN LOOP
(not supplied). See Fig. lB.
3. See “WIRING PROCEDURE” below.
D.
WIRING PROCEDURE
1.
Remove 2“ of outer insulation from FIXTURE CORD
(when required) and strip conductor ends 3A”. See Fig. 1.
2.
Insert FIXTURE CORD through attachment housing.
Fasten BLACK WIRE to LONGER (BRASS) CONTACT and
WHITE WIRE to SHORTER (SILVERED) contact. For
3 conductor cord, splice GROUND LEADS with wire
connector. (If the GROUND LEAD from the attachment
HOUSING is not used, leave wire connector on.) See Fig. t
‘RASSCoNTACT----kc <
GREEN GROUND
LEAD
CONNECTOR
‘REEN ‘ROuND --=&
LEAD
KNURLED RING
STRAIN RELIEF
KNURLED
RING
*
MOUNTING
w,,,-’”
STEM
>;,
$3 “ ~i
CAP
~ sT~~
lS:7589AZ
ROW
/- SILVERED CONTACT
‘“~ :::~;
,SJQ/
f
!
“~F’=
1
\
PLUG ASSEMBLY
$3W27 /’-LEvER
—
8
SET SCREW
CHAIN
MOUNTING
CORD
KNURLED
TUBING
~ ~,xTuRE
FIG. 1
CHAIN s<
LOOP
(by others)
CAUTION: OBSERVE POLARITY WHEN
FASTENING WIRES. BEND WIRES AROUND
SCREW IN CLOCKWISE DIRECTION.
Pull FIXTURE CORD back through attachment HOUSING and
3.
push HOUSING INSERT and PLUG ASSEMBLY into
HOUSING (silvered contact in PLUG ASSEMBLY facing
grooved side of attachment HOUSING). Push ground leads
into area between SPRING section. Fig. 2.
Allow fixture cord to extend into attachment HOUSING by
4.
1/6” and tighten PLASTIC SET SCREW, Fig. 2.
CAUTION: TIGHTEN ENOUGH TO SUPPORT
ASSEMBLY.
Screw LEVER into PLUG ASSEMBLY.
5.
FIXTURE
CORD
--’4 l\
~ ~ > STRAIN RELIEF
FIG. 2
‘@ SECAUCUS, NEW JERSEY, 07096 ”0508
[m[<>[=[~<>[ml[~l~ MONTREAL, QUEBEC, CANAD~
GROOVE
LEVER
TIC SET
SCREW
CAP
~$js~RucT[~Ns FOR ATTACHING LyTEspA/IJ
ATTACHMENT FITTING
1. Align BEAD on LYTESPAN TRACK and GROOVE
in attachment FITTING before inserting into
LYTESPAN TRACK. See Fig.1 (If BEAD is NOT
aligned, a potential hazard may result.)
_ LYTESPAN TRACK
2. Unscrew the TURN KNOB partially and
position LEVER as shown in Fig. 1.
3. To attach attachment FITTING:
squeeze BUTTON and TURN KNOB,
insert into LYTESPAN TRACK, and
release. Tighten TURN KNOB. This
holds attachment FITTING to LYTESPAN
TRACK mechanically. Turn LEVER to make
electrical connection. See Fig. 2.
4. To shift fixture location on the LYTESPAN
TRACK loosen TURN KNOB slightly, release
LEVER and slide to new position.
5. To remove fixture reverse the procedure in (3),
push TURN KNOB in and allow attachment
FITTING to disengage.
Fixture can be left on LYTESPAN TRACK
6.
when not in use by turning LEVER to
disconnect electrically.
INSTRUCTIONS FOR CONVERTING LYTESPAN
ATTACHMENT FITTING TO OPERATE ON (2 CIRCUIT)
LYTESPAN TRACK.
NOTE:
Lytespan Track, the BLACK SPACER
To insure proper operation of Lytespots on Two Circuit
(supplied) must be used at all times on the PIU9
assembly.
The BLACK SPACER is not used when operating
Lytespots on Single Circuit Track.
BEAO
BUTTON
GROOVE
ER
NG
FIG. 1
I
(
BUTTON ~
FIG. 2
BLACK SPACER
MOVABLE BRASS
CONTACT
o
LOWER CIRCUIT, FIG. 3:
Illustrates contacts in low position with spacer
in place for lower circuit.
UPPER CIRCUIT, FIG. 4 and 5:
To convert attachment fitting for upper circuit,
raise BRASS CONTACT to high position (as
indicated by dotted line) by pulling CONTACT
as high as stop permits and slipping on BLACK
SPACER as shown in Fig. 4 and 5.
BLACK
SPACER
b
.
-5”” \
%
FIG. 4
MOVABLE BRASS
CONTACT
STATIONARY SILVEREO
II
FIG. 3
CONTACT (COMMGN)
PLUG
ASSEMBLY
BLACK
SPACER
0
6
FIG.
5
