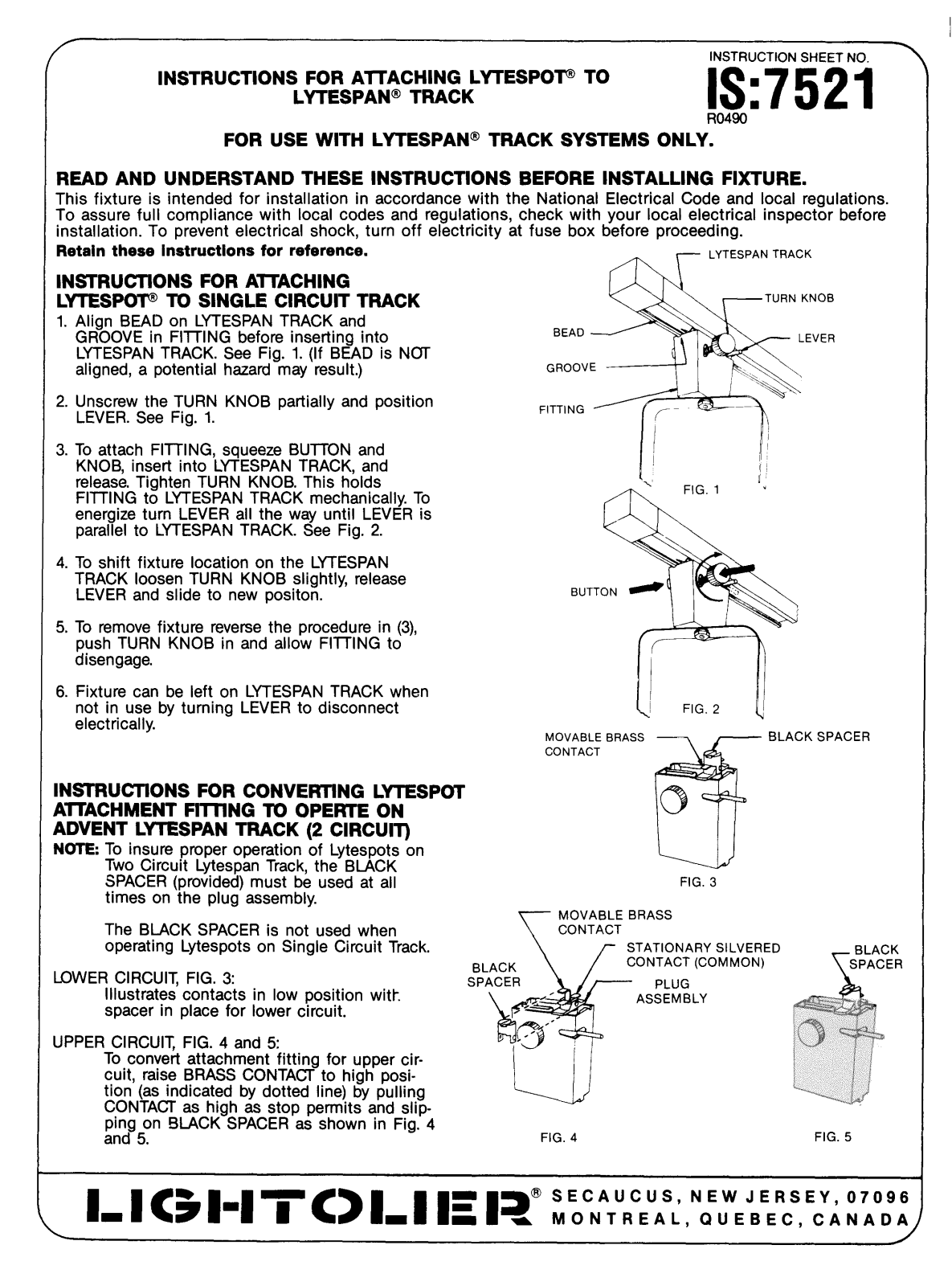

INSTRUCTION SHEET NO.
INSTRUCTIONS FOR AITACHING LYTESPOV TO
LYTESPAN@ TRACK
IS:7521
R0490
FOR USE WITH LYTESPAN@ TRACK SYSTEMS ONLY.
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fixture is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these Instructions for reference.
LYTESPAN TRACK
INSTRUCTIONS FOR AITACHING
LYTESPOF TO SINGLE CIRCUIT TRACK
Align BEAD on LYTESPAN TRACK and
1.
GROOVE in FllTING before inserting into
LYTESPAN TRACK. See Fig. 1. (If BEAD is NOT
aligned, a potential hazard may result.)
Unscrew the TURN KNOB partially and position
2.
LEVER. See Fig. 1.
To attach FITTING, squeeze BUTTON and
3.
KNOB, inserl into LWESPAN TRACK, and
release. Tighten TURN KNOB. This holds
FITTING to LYTESPAN TRACK mechanically. To
energize turn LEVER all the way until LEVER is
parallel to LYTESPAN TRACK. See Fig. 2.
BEAD
\
GROOVE
FITTING
To shift fixture location on the LYTESPAN
4.
TRACK loosen TURN KNOB slightly, release
LEVER and slide to new positon.
To remove fixture reverse the procedure in (3),
5.
push TURN KNOB in and allow FIITING to
disengage.
Fixture can be left on LYTESPAN TRACK when
6.
not in use by turning LEVER to disconnect
electrically.
INSTRUCTIONS FOR CONVERrlNG LYTESP~
Attachment FllllNG ~ OPERTE ON
ADVENT LYTESPAN TRACK (2 CIRCUIT)
NOTE To insure proper operation of Lytespots on
LOWER CIRCUIT FIG. 3:
Two Circuit Lytespan Track, the BLACK
SPACER (provided) must be used at all
times on the plug assembly.
The BIACK SPACER is not used when
operating Lytespots on Single Circuit Track.
Illustrates contacts in low position with.
spacer in place for lower circuit.
BUTT
MOVABLE BRASS
CoNTACT XBLACKS’ACER
D
~
FIG. 3
MOVABLE BRASS
T
CONTACT
1
UPPER CIRCUIT FIG. 4 and 5:
To convert attachment fitting for upper circuit, raise BRASS CONTA(X to high position (as indicated by dotted line) by pulling
CONTA~ as high as stop permits and slip-
ping on BLACK SPACER as shown in Fig. 4
and 5.
FIG. 4
FIG. 5
