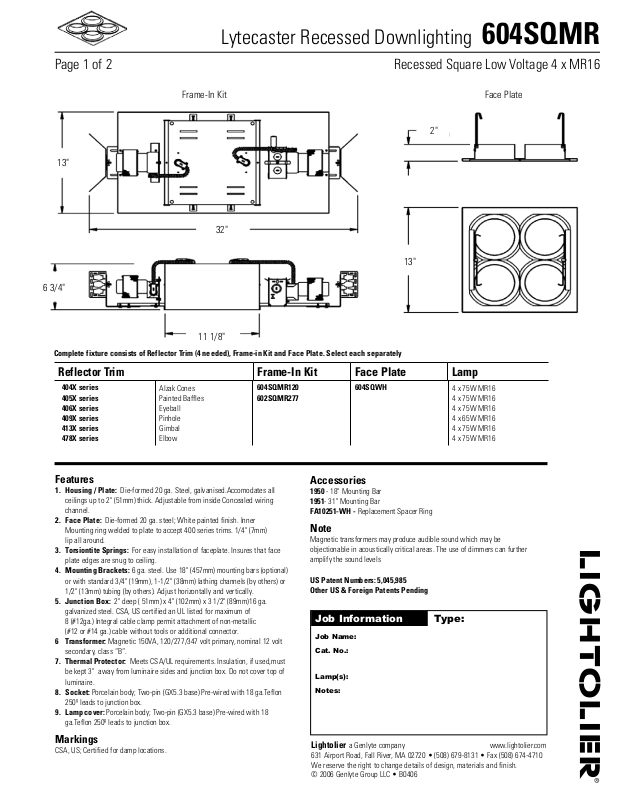

Lightolier 604SQMR User Manual
Lytecaster Recessed Downlighting 604SQMR
Page 1 of 2 Recessed Square Low Voltage 4 x MR16
Frame-In Kit Face Plate
2"
13"
32"
13"
6 3/4"
11 1/8"
Complete fixture consists of Reflector Trim (4 needed), Frame-in Kit and Face Plate. Select each separately
Reflector Trim
404X series
405X series
406X series
409X series
413X series
478X series
Features
1. Housing / Plate: Die-formed 20 ga. Steel, galvanised.Accomodates all
ceilings up to 2" (51mm) thick. Adjustable from inside Concealed wiring
channel.
2. Face Plate: Die-formed 20 ga. steel; White painted finish. Inner
Mounting ring welded to plate to accept 400 series trims. 1/4" (7mm)
lip all around.
3. Torsiontite Springs: For easy installation of faceplate. Insures that face
plate edges are snug to ceiling.
4. Mounting Brackets: 6 ga. steel. Use 18" (457mm) mounting bars (optional)
or with standard 3/4" (19mm), 1-1/2" (38mm) lathing channels (by others) or
1/2" (13mm) tubing (by others). Adjust horizontally and vertically.
5. Junction Box: 2" deep ( 51mm) x 4" (102mm) x 3 1/2" (89mm)16 ga.
galvanized steel. CSA, US certified an UL listed for maximum of
8 (#12ga.) Integral cable clamp permit attachment of non-metallic
(#12 or #14 ga.) cable without tools or additional connector.
6 Transformer: Magnetic 150VA, 120/277/347 volt primary, nominal 12 volt
secondary, class “B“.
7. Thermal Protector: Meets CSA/UL requirements. Insulation, if used,must
be kept 3" away from luminaire sides and junction box. Do not cover top of
luminaire.
8. Socket: Porcelain body; Two-pin (GX5.3 base) Pre-wired with 18 ga.Teflon
250º leads to junction box.
9. Lamp cover: Porcelain body; Two-pin (GX5.3 base) Pre-wired with 18
ga.Teflon 250º leads to junction box.
Alzak Cones
Painted Baffles
Eyeball
Pinhole
Gimbal
Elbow
Frame-In Kit Face Plate Lamp
604SQMR120
602SQMR277
Accessories
1950 - 18" Mounting Bar
1951- 31" Mounting Bar
FA10251-WH - Replacement Spacer Ring
Note
Magnetic transformers may produce audible sound which may be
objectionable in acoustically critical areas. The use of dimmers can further
amplify the sound levels
US Patent Numbers: 5,045,985
Other US & Foreign Patents Pending
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
604SQWH
4 x 75W MR16
4 x 75W MR16
4 x 75W MR16
4 x 65W MR16
4 x 75W MR16
4 x 75W MR16
Markings
CSA, US; Certified for damp locations.
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • B0406
