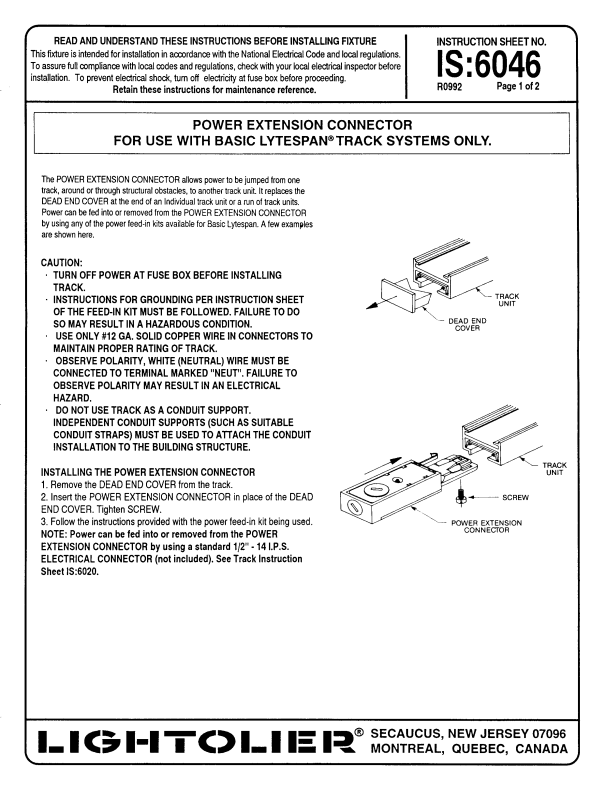

Lightolier 6046 User Manual
P
EWAH?!!WEY%Y
READANDUNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixtureis intended for installation in accordanrx?with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. Toprevent electrical shock, turnoff electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
POWER EXTENSION CONNECTOR
FOR USE WITH BASIC LYTESPAN@TRACK SYSTEMS ONLY.
The POWER EXTENSION CONNECTOR allows power to be jumped from one
track, around or through structural obstacles, to another track unit. [t replaces the
DEAD END COVER at the end of an Individual track unit or a run of track units.
can be fed intoor removedfromthe POWER EXTENSION CONNECTOR
Power
by using any of the power feed-in kits available for Basic Lytespan. A few examples
are shown here.
CAUTION:
. TURN OFF POWER AT FUSE BOX BEFORE INSTALLING
TRACK.
“ INSTRUCTIONS FOR GROUNDING PER INSTRUCTION SHEET
OF THE FEED-IN KIT MUST BE FOLLOWED. FAILURE TO DO
SO MAY RESULT IN A HAZARDOUS CONDITION,
USE ONLY #12 GA. SOLID COPPER WIRE IN CONNECTORS TO
~
MAINTAIN PROPER RATING OF TRACK.
. OBSERVE POLARITY, WHITE (NEUTRAL) WIRE MUST BE
CONNECTED TO TERMINAL MARKED “NEUT”. FAILURE TO
OBSERVE POLARITY MAY RESULT IN AN ELECTRICAL
HAZARD,
. DO NOT USE TRACK AS A CONDUIT SUPPORT.
INDEPENDENT CONDUIT SUPPORTS (SUCH AS SUITABLE
CONDUIT STRAPS) MUST BE USED TO AITACH THE CONDUIT
INSTALLATION TO THE BUILDING STRUCTURE.
INSTALLING THE POWER EXTENSION CONNECTOR
Remove the DEAD END COVER from the track.
1.
2. Insert the POWER EXTENSION CONNECTOR in place of the DEAD
END COVER. Tighten SCREW.
3. Follow the instructions provided with the power feed-in kit being used.
NOTE: Power can be fed into or removed from the POWER
EXTENSION CONNECTOR by using a standard 1/2” -14 I.P.S.
ELECTRICAL CONNECTOR (not included). See Track Instruction
Sheet 1S:6020.
B
lNSTRUCTfON SHEET NO.
IS:6046
R0992
e
\_
DEAD END
COVER
—
POWER EXTENSION
CONNECTOR
Page 1 of 2
TRACK
UNIT
SCREW
TRACK
UNIT
