Lightolier 5400 User Manual

2-5/8"

(67mm)

14" (356mm)

2-11/32"

(60mm)

2-13/32"

(61mm)

31/32"

(25mm)

32" (813mm)

39-5/8" (1006mm)

44-1/16" (1119mm)

48-3/4" (1238mm)

5" (127mm)

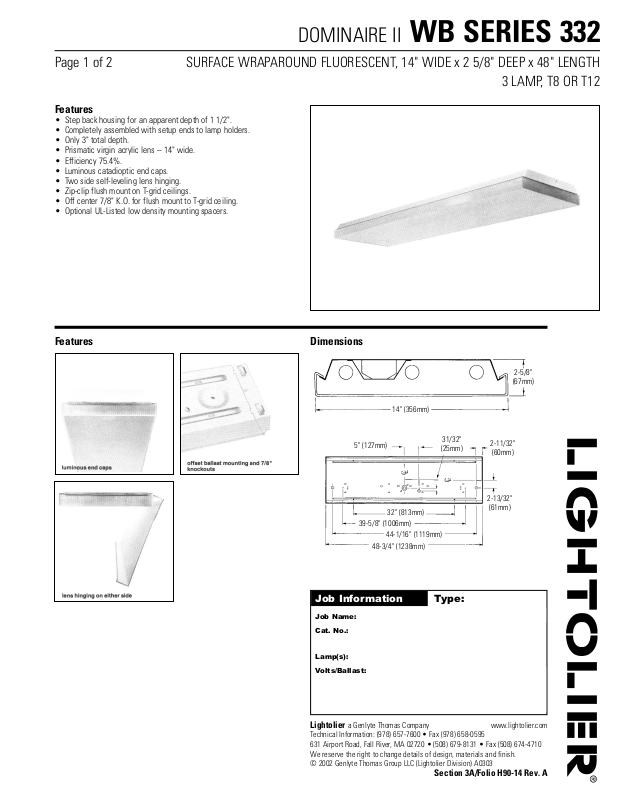

DOMINAIRE II WB SERIES 332

Page 1 of 2 SURFACE WRAPAROUND FLUORESCENT, 14" WIDE x 2 5/8" DEEP x 48" LENGTH

3 LAMP, T8 OR T12

Features Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: [phone] • Fax [phone]
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) A0303

Section 3A/Folio H90-14 Rev. A

Features

• Step back housing for an apparent depth of 1 1/2".

• Completely assembled with setup ends to lamp holders.

• Only 3" total depth.

• Prismatic virgin acrylic lens – 14" wide.

• Efficiency 75.4%.

• Luminous catadioptic end caps.

• Two side self-leveling lens hinging.

• Zip-clip flush mount on T-grid ceilings.

• Off center 7/8" K.O. for flush mount to T-grid ceiling.

• Optional UL-Listed low density mounting spacers.

Ordering Information Explanation of Catalog Number. Example: WB4B332120O3GLR

4

B

FIXTURE
LENGTH:

4=4' Length

3

LAMP
QUANTITY
3=3 Lamp

LAMP
32 =T8 Lamp
34 =T12 Lamp

VOLTAGE:

120 or 277

BALLAST TYPE:

1 & 2 Lamp Mag. T12 LE

<20THD <10THD

1 & 2 Lamp Elec. T8

SO* HI*

3 Lamp Elec. T8 O3* H3*
*Instant Start Standard

OPTIONS:

Add appropriate
suffix to catalog

no., ie: (GLR)

WB

LER = FS - 65.0 Watts - 84.4 BF - 0.87
Comparative yearly lighting energy cost per 1000 lumens = $3.69

FIXTURE

WIDTH:

B=14" Wide

DOMINAIRE II:

Surface Wrap

Fluorescent

With White Body

Photometry Model No. WB4B332120O3

coefficients of utilization — zonal cavity method

RF 20 20 20
RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1827876 727068 686765
2757065 646158 615856
3696257 585350 555148
4645650 524743 504542
5595043 464137 444037
6544538 423733 403632
7504034 383329 363228
8463630 342925 332825
9423226 312522 292521

10 39 29 24 28 23 19 27 22 19

visual comfort probability (VCP) average 100 fc; reflectances 80/50/20

room size ceiling height ceiling height
W L 8.5 10.0 13.0 16.0 8.5 10.0 13.0 16.0
20 20 60 65 72 77 59 64 70 76

20 30 53 57 63 68 52 56 62 67
20 40 49 52 57 61 49 52 56 61
20 60 46 49 52 56 46 49 52 55

30 20 61 65 71 76 61 65 60 75
30 30 54 57 61 66 53 57 61 65
30 40 50 52 55 59 50 52 55 58
30 60 46 48 50 53 46 49 50 53
30 80 43 46 47 50 44 47 47 50

40 20 63 67 71 76 63 67 71 76
40 30 55 58 62 66 55 58 61 65
40 40 51 53 56 59 51 53 55 58
40 60 47 49 50 53 47 49 50 53
40 80 44 46 47 50 45 47 47 49
40 100 43 44 45 47 44 46 46 48

60 30 57 60 62 66 57 60 62 66
60 40 52 54 56 59 52 54 56 59
60 60 48 50 50 53 48 50 50 53
60 80 45 47 47 49 45 47 47 49
60 100 43 45 45 47 44 46 45 47

100 40 56 57 58 61 56 57 58 61
100 60 51 52 52 55 51 53 52 55
100 80 48 49 49 51 48 50 49 51
100 100 46 47 46 48 46 48 47 48

room cavity ratio

luminaries lengthwise

luminaries crosswise

Options/Accessories

NOTE: 3 lamp fixtures are not recommended for stem mounting.
CANOPY SPACER: Spacer suspends fixture approximately 1 1/2" from surface.

Order Catalog Number:

AC1 CSP.

ELECTRICAL/WIRING OPTIONS:

Consult factory.

FUSING: Internal fast-blow fusing. SUFFIX: GLR.

Internal slow-blow fusing. SUFFIX: GMF.

Specifications

PERFORMANCE: In an installation of 3 lamp 40W luminaires in a room cavity

ratio of 1, with reflectance of 80% ceiling, 50% wall, 20% floor, the C.U. shall
not be less than .78. To reduce glare the VCP shall be not less than 48 either
lengthwise or crosswise (at 100fc level) and the average brightness at 65° shall
not exceed 760 footlamberts To prevent veiling reflections, luminaire output in
the 30°-90° zone shall not be less than 64.7%.

MATERIALS: Chassis parts are die-formed code gauge cold rolled steel.
FINISH: Chassis exterior–white baked polyester enamel. Cavity– white baked

polyester enamel minimum 86% reflectance. Phosphate undercoating.

Specifications (continued)

LENS: One-piece extruded virgin acrylic prismatic bottom and side walls.
END CAPS: Injection molded catadioptic end caps separate from lens.
ELECTRICAL: Thermally protected class “P” ballast C.B.M. approved, non PCB.

If K.O. is within 3" of ballast, use wire suitable for at least 90°.
LABELS: I.B.E.W. UL and ULc Listed.

WB4B332120O3
TWO F32 T8, EACH RATED 2850 LUMENS

DOMINAIRE II WB SERIES 332

Page 2 of 2 SURFACE WRAPAROUND FLUORESCENT, 14" WIDE x 2 5/8" DEEP x 48" LENGTH

3 LAMP, T8 OR T12

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: [phone] • Fax [phone]
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) A0303

Section 3A/Folio H90-14 Rev. A
