Lightolier 5242CFL User Manual

8

7

11

7

10

6

9

1

3

2

22 3/8" Dia. Diffuser

3 3/4"

5 1/8"

5 1/8"

3 3/4"

21 3/8" Dia. Ceiling Pan

22 3/8" Dia. Diffuser

25 1/8" Dia. Trim Ring

4

5

5

4

21 3/8" Dia. Ceiling Pan

25 1/8" Dia. Trim Ring

Twin Tube Models

Quad Tube Models

Decorative Lumidome

™

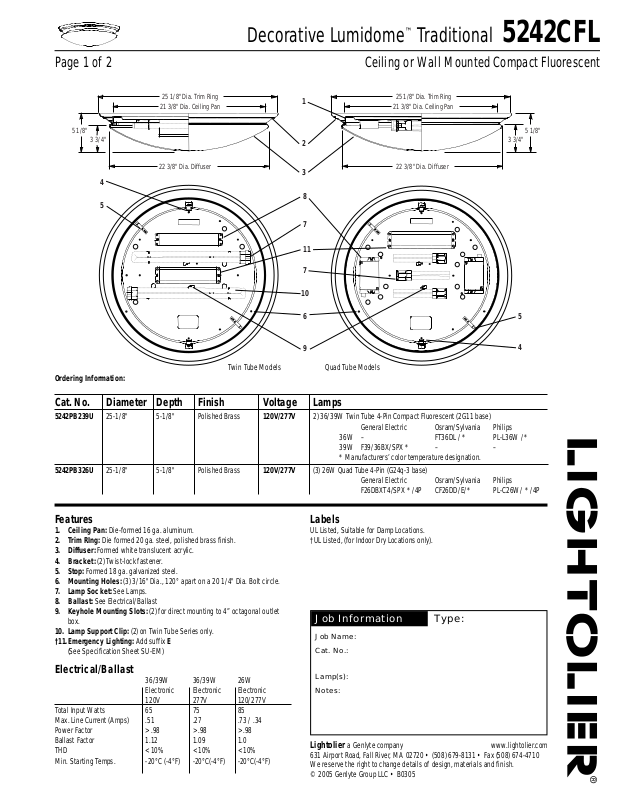

Traditional 5242CFL

Page 1 of 2 Ceiling or Wall Mounted Compact Fluorescent

Job Information Type:

Job Name:
Cat. No.:

Lamp(s):
Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • B0305

Features

1. Ceiling Pan: Die-formed 16 ga. aluminum.

2. Trim RIng:Die formed 20 ga. steel, polished brass finish.

3. Diffuser: Formed white translucent acrylic.

4. Bracket: (2) Twist-lock fastener.

5. Stop: Formed 18 ga. galvanized steel.

6. Mounting Holes: (3) 3/16" Dia., 120° apart on a 20 1/4" Dia. Bolt circle.

7. Lamp Socket: See Lamps.

8. Ballast: See Electrical/Ballast

9. Keyhole Mounting Slots: (2) for direct mounting to 4” octagonal outlet

box.

10. Lamp Support Clip: (2) on Twin Tube Series only.
†11.Emergency Lighting: Add suffix E

(See Specification Sheet SU-EM)

Electrical/Ballast

36/39W 36/39W 26W
Electronic Electronic Electronic

120V 277V 120/277V
Total Input Watts 65 75 85
Max. Line Current (Amps) .51 .27 .73 / .34
Power Factor > .98 > .98 > .98
Ballast Factor 1.12 1.09 1.0
THD < 10% < 10% < 10%
Min. Starting Temps. -20°C (-4°F) -20°C(-4°F) -20°C(-4°F)

Labels

UL Listed, Suitable for Damp Locations.
†UL Listed, (for Indoor Dry Locations only).

Ordering Information:

Cat. No. Diameter Depth Finish Voltage Lamps

5242PB239U 25-1/8" 5-1/8" Polished Brass 120V/277V 2) 36/39W Twin T ube 4-Pin Compact Fluorescent (2G11 base)

General Electric Osram/Sylvania Philips
36W – FT36DL / * PL-L36W /*
39W F39/36BX/SPX * – –
* Manufacturers’ color temperature designation.

5242PB326U 25-1/8" 5-1/8" Polished Brass 120V/277V (3) 26W Quad Tube 4-Pin (G24q-3 base)

General Electric Osram/Sylvania Philips

F26DBXT4/SPX * /4P CF26DD/E/* PL-C26W/ * /4P

CERTIFIED TEST REPORT NO. 1045FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER SURFACE UTILITY FLOURESCENT LUMIDOME
CAT. 5241WH239F1 WITH TWIST LOCK ACRYLIC DIFFUSER
2-39W DULUX L SYL.LAMPS. LUMEN RATING = 2900 LMS.

ROBERTSON BALLAST #RER2LT8-120H,120VAC

CANDLEPOWER DATA

ANGLE CANDLEPOWER LUMENS

0 850
5 846 81
10 836
15 819 232
20 795
25 766 354
30 730
35 688 432
40 640
45 589 456
50 532
55 472 423
60 410
65 349 348
70 291
75 237 253
80 189
85 147 162
90 108

ANGLE CANDLEPOWER LUMENS

95 83 92
100 62
105 49 54
110 41
115 39 39
120 38
125 38 35
130 39
135 39 30
140 38
145 38 25
150 38
155 38 18
160 37
165 35 10
170 31
175 32 4
180 33

TESTED ACCORDING TO IES

PROCEDURES. TEST DISTANCE EXCEEDS

FIVE TIMES THE GREATEST LUMINOUS

OPENING OF LUMINAIRE.

ROOM CAVITY RATIO

COEFFICIENTS OF UTILIZATION ZONAL CAVITY METHOD

%EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50 30 10

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .53 .50 .48 .51 .49 .47 .48 .46 .44 .45 .43 .42 .42 .41 .40 .38

2 .46 .42 .39 .44 .41 .38 .42 .39 .37 .39 .37 .35 .37 .35 .33 .32
3 .40 .36 .33 .39 .35 .32 .37 .33 .31 .35 .32 .29 .33 .30 .28 .27
4 .36 .31 .28 .35 .31 .27 .33 .29 .26 .31 .28 .26 .29 .27 .25 .23
5 .32 .27 .24 .31 .27 .23 .29 .26 .23 .28 .24 .22 .26 .24 .21 .20
6 .29 .24 .21 .28 .23 .20 .26 .23 .20 .25 .22 .19 .24 .21 .18 .17
7 .26 .21 .18 .25 .21.17 .24 .20 .17 .22 .19 .16 .21 .18 .16 .15
8 .23 .19 .16 .22 .18 .15 .21 .18 .15 .20 .17 .15 .19 .16 .14 .13
9 .21 .17 .14 .21 .16 .14 .19 .16 .13 .19 .15 .13 .18 .15 .12 .11

10 .19 .15 .12 .19 .15 .12 .18 .14 .12 .17 .14 .11 .16 .13 .11 .10

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE
0-30 666 11.48 21.92
0-40 1097 18.92 36.11
0-60 1975 34.05 65.01
0-90 2735 47.17 90.04
40-90 1638 28.25 53.93
60-90 760 13.12 25.03
90-180 302 5.22 9.96
0-180 3038 52.39 100.00

** EFFICIENCY = 52.4% **

SPACINGRATIO= 1.3

For 3 light - 26W Quad Tube units multiply FC’s by 0.95

For 3 light - 26W Quad Tube units multiply CU’s by 0.95

Decorative Lumidome

™

Traditional 5242CFL

Page 2 of 2 Ceiling or Wall Mounted Compact Fluorescent

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • B0305

Job Information Type:

80
70
60
50
40

INITIAL FOOTCANDLES

30
20
10

25 50 75 100 125 150 175 200

3 4 5 6 7 8 9 10 11 12 13 14

Use quick calculator chart to determine the number and spacing of luminaries for
a desired level of illumination.

AREA PER FIXTURE IN SQUARE FEET

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

2 Light - 36/39W Quad Tube

2900 Lumens Per Lamp
RCR = 1 (60' x60'x8.5' room)

RCR = 5 (12' x12'x8.5' room)
RCR = 10 (6' x6'x8.5' room)
Room surface reflectances
80% Ceiling,50% Walls,20% Floor

150 120

180

400

800

1200

0

ACROSS
45
ALONG

90

60

30
