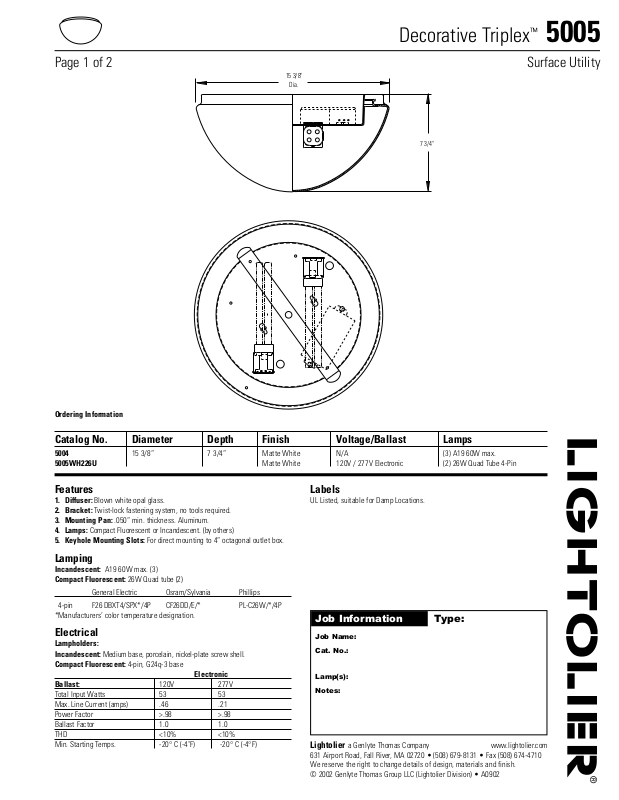

Lightolier 5005 User Manual

15 3/8"

Dia.

7 3/4"

Decorative Triplex

™

5005

Page 1 of 2 Surface Utility

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Features

1. Diffuser: Blown white opal glass.

2. Bracket: Twist-lock fastening system, no tools required.

3. Mounting Pan: .050” min. thickness. Aluminum.

4. Lamps: Compact Fluorescent or Incandescent. (by others)

5. Keyhole Mounting Slots: For direct mounting to 4” octagonal outlet box.

Lamping

Incandescent: A19 60W max. (3)
Compact Fluorescent: 26W Quad tube (2)

General Electric Osram/Sylvania Phillips

4-pin F26 DBXT4/SPX*/4P CF26DD/E/* PL-C26W/*/4P

*Manufacturers’ color temperature designation.

Electrical

Lampholders:
Incandescent: Medium base, porcelain, nickel-plate screw shell.
Compact Fluorescent: 4-pin, G24q-3 base

Electronic

Ballast: 120V 277V

Total Input Watts 53 53
Max. Line Current (amps) .46 .21
Power Factor >.98 >.98
Ballast Factor 1.0 1.0
THD <10% <10%
Min. Starting Temps. -20° C (-4˚F) -20° C (-4°F)

Ordering Information

Catalog No. Diameter Depth Finish Voltage/Ballast Lamps

5004 15 3/8” 7 3/4” Matte White N/A (3) A19 60W max.
5005WH226U Matte White 120V / 277V Electronic (2) 26W Quad Tube 4-Pin

Labels

UL Listed, suitable for Damp Locations.

1200

TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE

TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.

180

200

150

120

80

9 0

30

0

600

400

ACROSS
45
ALONG

CERTIFIED TEST REPORT NO. 0972FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER SURFACE UTILITY FLOURESCENT
CAT. 5005WH226U WITH TWIST LOCK OPAL GLASS DIFFUSER
2-26W QUAD TUBE GE LAMPS. LUMEN RATING = 1700 LMS.

ROBERTSON BALLAST #PSM226CQMVW, 120VAC

CANDLEPOWER DATA

ANGLE CANDLEPOWER LUMENS
0 391
5 389 38
10 385
15 377 107
20 368
25 356 165
30 342
35 326 205
40 310
45 293 227
50 274
55 255 230
60 236
65 217 216
70 198
75 179 190
80 160
85 142 155
90 121

ANGLE CANDLEPOWER LUMENS
95 108 118
100 92
105 78 83
110 64
115 53 53
120 43
125 35 32
130 28
135 23 18
140 19
145 17 11
150 16
155 16 8
160 16
165 14 5
170 12
175 11 2
180 12

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE
0-30 308 9.07 16.64
0-40 513 5.10 27.69
0-60 968 28.50 52.26
0-90 1528 44.96 82.44
40-90 1015 29.86 54.75
60-90 559 16.46 30.18

90-180 325 9.57 17.56

0-180 1853 54.53 100.00

** EFFICIENCY = 54.5% **

SPACING RATIO = 1.3

ROOM CAVITY RATIO

COEFFICIENTS OF UTILIZATION ZONAL CAVITY METHOD

%EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50 30 10

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .52 .50 .47 .50 .48 .45 .46 .44 .42 .42 .41 .39 .39 .37 .36 .34

2 .45 .41 .37 .43 .39 .36 .40 .37 .34 .36 .34 .32 .33 .31 .30 .28

3 .39 .34 .30 .37 .33 .30 .35 .31 .28 .32 .29 .26 .29 .27 .24 .23

4 .35 .30 .26 .33 .29 .25 .31 .27 .24 .28 .25 .22 .26 .23 .21 .19

5 .31 .26 .22 .29 .25 .21 .27 .23 .20 .25 .22 .19 .23 .20 .18 .16

6 .27 .22 .19 .26 .22 .18 .24 .20 .17 .22 .19 .16 .21 .18 .15 .14

7 .24 .19 .16 .23 .19 .16 .22 .18 .15 .20 .17 .14 .19 .16 .13 .12

8 .22 .17 .14 .21 .17 .14 .20 .16 .13 .18 .15 .12 .17 .14 .12 .11

9 .20 .15 .12 .19 .15 .12 .18 .14 .11 .17 .13 .11 .15 .12 .10 .09

10 .18 .14 .11 .18 .13 .11 .16 .13 .10 .15 .12 .10 .14 .11 .09 .08

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

Decorative Triplex

™

5005

Page 2 of 2 Surface Utility

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Job Information Type:

80

70

60

50

40

INITIAL FOOTCANDLES

30

20

10

20 40 60 80 100 120 140 180

3 4 5 6 7 8 9 10 11 12 13

Use quick calculator chart to determine the number and spacing of luminaries for
a desired level of illumination.

AREA PER FIXTURE IN SQUARE FEET

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

2 Light - 26W Quad Tube

1800 Lumens Per Lamp

RCR = 1 (60' x60'x8.5' room)
RCR = 5 (12' x12'x8.5' room)
RCR = 10 (6' x6'x8.5' room)
Room surface reflectances
80% Ceiling,50% Walls,20% Floor
