45°

5

4

3

Nominal

OAL

Body Dia.

A

C

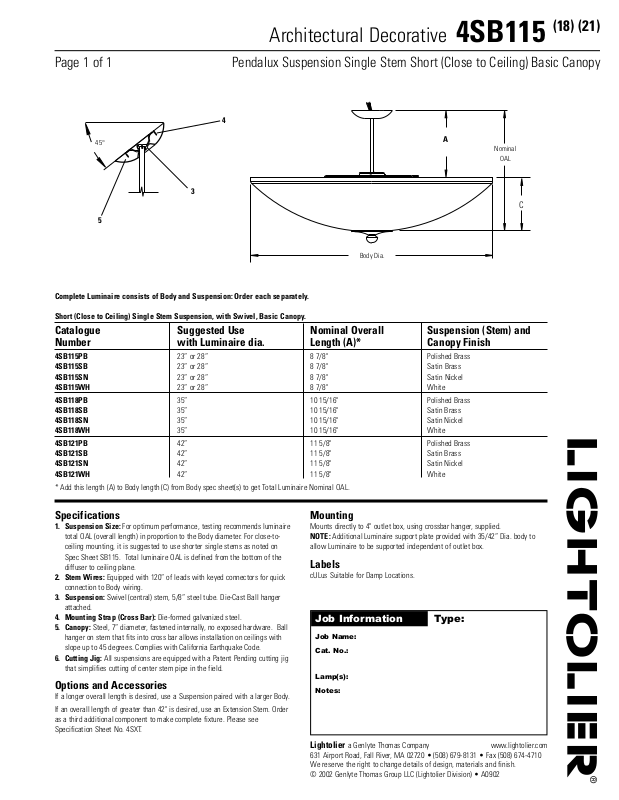

Architectural Decorative 4SB115

(18) (21)

Page 1 of 1 Pendalux Suspension Single Stem Short (Close to Ceiling) Basic Canopy

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Specifications

1. Suspension Size: For optimum performance, testing recommends luminaire

total OAL (overall length) in proportion to the Body diameter. For close-to­ceiling mounting, it is suggested to use shorter single stems as noted on
Spec Sheet SB115. Total luminaire OAL is defined from the bottom of the
diffuser to ceiling plane.

2. Stem Wires: Equipped with 120” of leads with keyed connectors for quick

connection to Body wiring.

3. Suspension: Swivel (central) stem, 5/8” steel tube. Die-Cast Ball hanger

attached.

4. Mounting Strap (Cross Bar): Die-formed galvanized steel.

5. Canopy: Steel, 7” diameter, fastened internally, no exposed hardware. Ball

hanger on stem that fits into cross bar allows installation on ceilings with
slope up to 45 degrees. Complies with California Earthquake Code.

6. Cutting Jig: All suspensions are equipped with a Patent Pending cutting jig

that simplifies cutting of center stem pipe in the field.

Options and Accessories

If a longer overall length is desired, use a Suspension paired with a larger Body.

If an overall length of greater than 42" is desired, use an Extension Stem. Order
as a third additional component to make complete fixture. Please see
Specification Sheet No. 4SXT.

Complete Luminaire consists of Body and Suspension: Order each separately.

Short (Close to Ceiling) Single Stem Suspension, with Swivel, Basic Canopy.

Catalogue Suggested Use Nominal Overall Suspension (Stem) and
Number with Luminaire dia. Length (A)* Canopy Finish

4SB115PB 23” or 28” 8 7/8" Polished Brass
4SB115SB 23” or 28” 8 7/8" Satin Brass
4SB115SN 23” or 28” 8 7/8" Satin Nickel
4SB115WH 23” or 28” 8 7/8" White

4SB118PB 35” 10 15/16" Polished Brass
4SB118SB 35” 10 15/16" Satin Brass
4SB118SN 35” 10 15/16" Satin Nickel
4SB118WH 35” 10 15/16" White

4SB121PB 42” 11 5/8" Polished Brass
4SB121SB 42” 11 5/8" Satin Brass
4SB121SN 42” 11 5/8" Satin Nickel
4SB121WH 42” 11 5/8" White

* Add this length (A) to Body length (C) from Body spec sheet(s) to get Total Luminaire Nominal OAL.

Mounting

Mounts directly to 4" outlet box, using crossbar hanger, supplied.
NOTE: Additional Luminaire support plate provided with 35/42” Dia. body to
allow Luminaire to be supported independent of outlet box.

Labels

cULus Suitable for Damp Locations.
