Lightolier 409X User Manual
Lytecaster
®
Recessed Downlight 409X

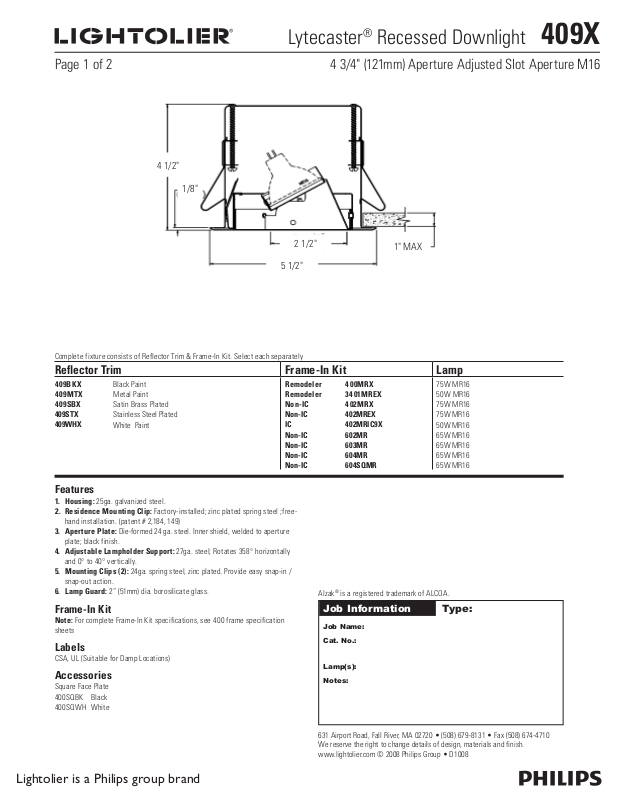

Page 1 of 2 4 3/4" (121mm) Aperture Adjusted Slot Aperture M16
4 1/2"
1/8"
2 1/2"
5 1/2"
Complete fix ture consists of Reflector Trim & Frame-In Kit. Select each separately
Reflector Trim
409BK X
409MTX
409SBX
409STX
409WHX
Black Paint
Metal Paint
Satin Brass Plated
Stainless Steel Plated
White Paint
Frame-In Kit Lamp
Remodeler
Remodeler
Non-IC
Non-IC
IC
Non-IC
Non-IC
Non-IC
Non-IC
Features
1. Housing: 25ga. galvanized steel.
2. Residence Mounting Clip: Factory-installed; zinc plated spring steel ;free-
hand installation. (patent # 2,184, 149)
3. Aper ture Plate: Die-formed 24 ga. steel. Inner shield, welded to aperture
plate; black finish.
4. Adjustable Lampholder Support: 27ga. steel; Rotates 358° horizontally
and 0° to 40° vertically.
5. Mounting Clips (2): 24ga. spring steel, zinc plated. Provide easy snap-in /
snap-out action.
6. Lamp Guard: 2” (51mm) dia. borosilicate glass.
Frame-In Kit
Note: For complete Frame-In Kit specifications, see 400 frame specification
sheets
Labels
CSA, UL (Suitable for Damp Locations)
Accessories
Square Face Plate
400SQBK Black
400SQWH White
1" MAX
400MRX
3401MREX
402MRX
402MREX
402MRIC9X
602MR
603MR
604MR
604SQMR
Alzak® is a registered trademark of ALCOA.
75W MR16
50W MR16
75W MR16
75W MR16
50W MR16
65W MR16
65W MR16
65W MR16
65W MR16
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • D1008
