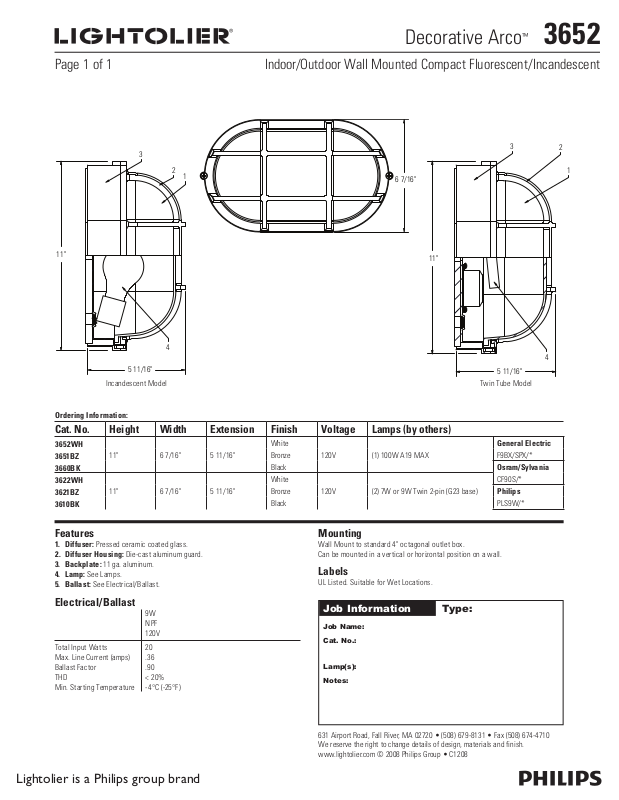

Lightolier 3652 User Manual
Decorative Arco
3
2
1
™
3652
Page 1 of 1 Indoor/Outdoor Wall Mounted Compact Fluorescent/Incandescent
3
2
1
11"
4
5 11/16"
Incandescent Model
Ordering Information:
6 7/16"
11"
Cat. No. Height Width Extension Finish Voltage Lamps (by others)
3652WH
3651BZ
3660BK
3622WH
3621BZ
3610BK
11" 6 7/16" 5 11/16"
11" 6 7/16" 5 11/16"
White
Bronze
Black
White
Bronze
Black
120V (1) 100W A19 MAX
120V (2) 7W or 9W Twin 2-pin (G23 base)
3
5 11/16"
Twin Tube Model
General Electric
F9BX/SPX/*
Osram/Sylvania
CF90S/*
Philips
PLS9W/*
2
1
4
Features
1. Diffuser: Pressed ceramic coated glass.
2. Diffuser Housing: Die-cast aluminum guard.
3. Backplate: 11 ga. aluminum.
4. Lamp: See Lamps.
5. Ballast: See Electrical/Ballast.
Electrical/Ballast
9W
NPF
120V
Total Input Watts 20
Max. Line Current (amps) .36
Ballast Factor .90
THD < 20%
Min. Starting Temperature -4°C (-25°F)
Lightolier is a Philips group brand
Mounting
Wall Mount to standard 4" octagonal outlet box.
Can be mounted in a vertical or horizontal position on a wall.
Labels
UL Listed. Suitable for Wet Locations.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C1208
