03-03

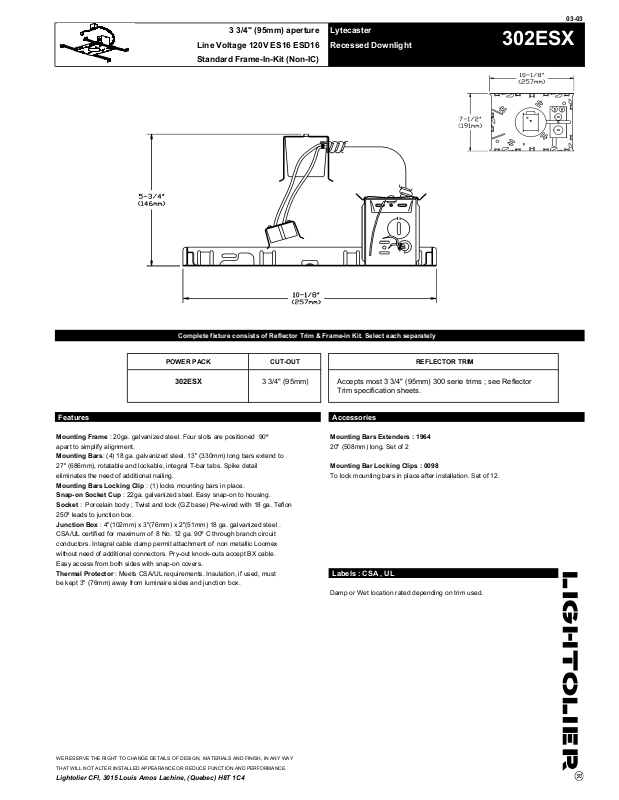

3 3/4" (95mm) aperture Lytecaster

Line Voltage 120V ES16 ESD16 Recessed Downlight

302ESX

Standard Frame-In-Kit (Non-IC)

Complete fixture consists of Reflector Trim & Frame-in Kit. Select each separately

POWER PACK CUT-OUT

REFLECTOR TRIM

302ESX 3 3/4" (95mm) Accepts most 3 3/4" (95mm) 300 serie trims ; see Reflector

Trim specification sheets.

Features Accessories

Mounting Frame : 20ga. galvanized steel. Four slots are positioned 90º Mounting Bars Extenders : 1964

apart to simplify alignment. 20" (508mm) long. Set of 2

Mounting Bars: (4) 18 ga. galvanized steel. 13" (330mm) long bars extend to

27" (686mm), rotatable and lockable, integral T-bar tabs. Spike detail

eliminates the need of additional nailing. To lock mounting bars in place after installation. Set of 12.

Mounting Bars Locking Clip : (1) locks mounting bars in place.

Snap-on Socket Cup : 22ga. galvanized steel. Easy snap-on to housing.

Socket : Porcelain body ; Twist and lock (GZ base) Pre-wired with 18 ga. Teflon

250º leads to junction box.

Junction Box : 4"(102mm) x 3"(76mm) x 2"(51mm) 18 ga. galvanized steel .

CSA/UL certified for maximum of 8 No. 12 ga. 90º C through branch circuit

conductors. Integral cable clamp permit attachment of non metallic Loomex

without need of additional connectors. Pry-out knock-outs accept BX cable.

Easy access from both sides with snap-on covers.

Thermal Protector : Meets CSA/UL requirements. Insulation, if used, must

be kept 3" (76mm) away from luminaire sides and junction box.

Mounting Bar Locking Clips : 0098

Labels : CSA , UL

Damp or Wet location rated depending on trim used.

WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY

THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.

Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4
