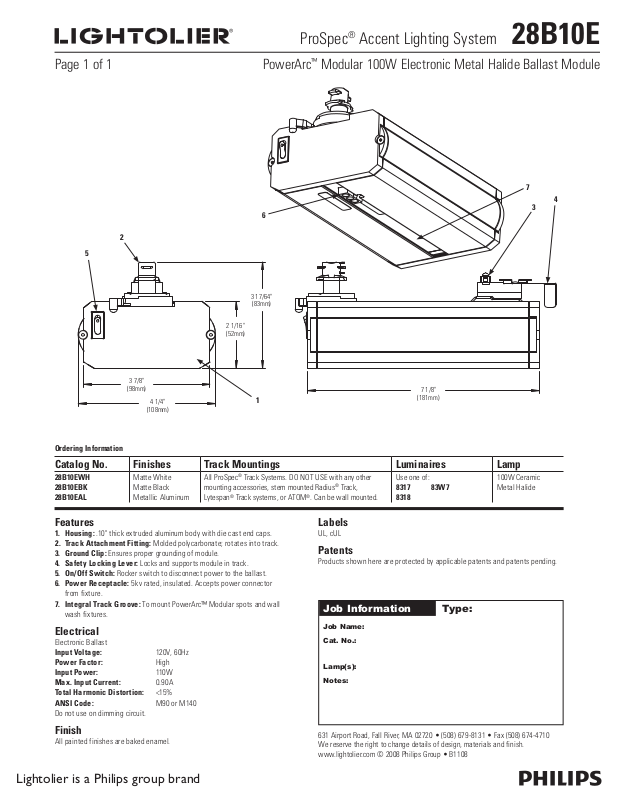

ProSpec
®
Accent Lighting System 28B10E
Page 1 of 1 PowerArc™ Modular 100W Electronic Metal Halide Ballast Module
7
4
6
2
5
3 17/64"
(83mm)
2 1/16"
(52mm)
3
3 7/8"
Ordering Information
(98mm)
4 1/4"
(108mm)
1
7 1/8"
(181mm)
Catalog No. Finishes Track Mountings Luminaires Lamp
28B10EWH
28B10EBK
28B10EAL
Features
1. Housing: .10" thick extruded aluminum body with die cast end caps.
2. Track At tachment Fitting: Molded polycarbonate; rotates into track.
3. Ground Clip: Ensures proper grounding of module.
4. Safety Locking Lever: Locks and suppor ts module in track.
5. On/Off Switch: Rocker switch to disconnect power to the ballast.
6. Power Receptacle: 5kv rated, insulated. Accepts power connector
from fixture.
7. Integral Track Groove: To mount PowerArc™ Modular spots and wall
wash fixtures.
Electrical
Electronic Ballast
Input Voltage: 120V, 60Hz
Power Factor: High
Input Power: 110W
Max. Input Current: 0.90A
Total Harmonic Distortion: <15%
ANSI Code: M90 or M140
Do not use on dimming circuit.
Matte White
Matte Black
Metallic Aluminum
All ProSpec® Track Systems. DO NOT USE with any other
mounting accessories, stem mounted Radius® Track,
Lytespan® Track systems, or ATOM®. Can be wall mounted.
Labels
UL, cUL
Patents
Products shown here are protected by applicable patents and patents pending.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Use one of:
8317 83W7
8318
100W Ceramic
Metal Halide
Finish
All painted finishes are baked enamel.
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B1108
