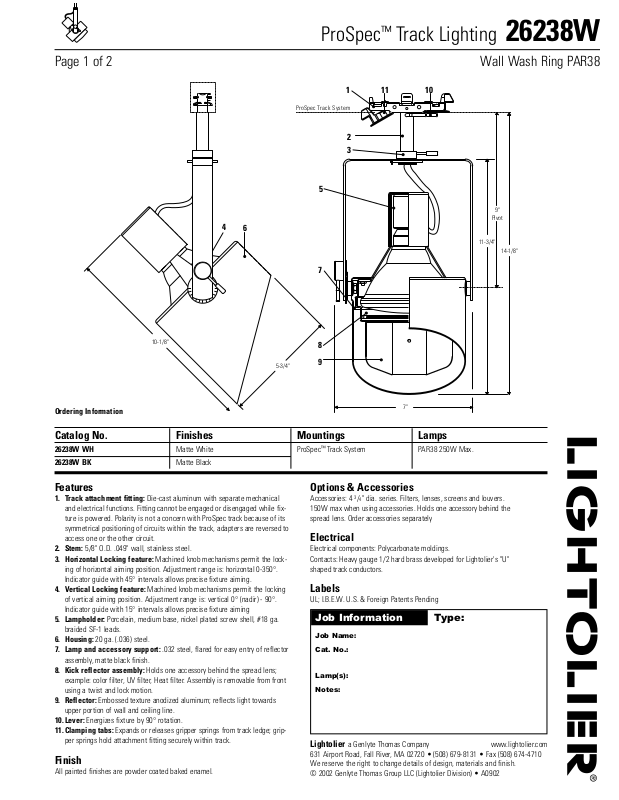

ProSpec

™

Track Lighting 26238W

Page 1 of 2 Wall Wash Ring PAR38

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Features

1. Track attachment fitting: Die-cast aluminum with separate mechanical

and electrical functions. Fitting cannot be engaged or disengaged while fix­ture is powered. Polarity is not a concern with ProSpec track because of its
symmetrical positioning of circuits within the track, adapters are reversed to
access one or the other circuit.

2. Stem: 5/8" O.D. .049" wall, stainless steel.

3. Horizontal Locking feature: Machined knob mechanisms permit the lock-

ing of horizontal aiming position. Adjustment range is: horizontal 0-350°.
Indicator guide with 45° intervals allows precise fixture aiming.

4. Vertical Locking feature: Machined knob mechanisms permit the locking
of vertical aiming position. Adjustment range is: vertical 0° (nadir) - 90°.
Indicator guide with 15° intervals allows precise fixture aiming

5. Lampholder: Porcelain, medium base, nickel plated screw shell, #18 ga.
braided SF-1 leads.

6. Housing: 20 ga. (.036) steel.

7. Lamp and accessory support: .032 steel, flared for easy entry of reflector

assembly, matte black finish.

8. Kick reflector assembly: Holds one accessory behind the spread lens;
example: color filter, UV filter, Heat filter. Assembly is removable from front
using a twist and lock motion.

9. Reflector: Embossed texture anodized aluminum; reflects light towards
upper portion of wall and ceiling line.

10. Lever: Energizes fixture by 90° rotation.

11. Clamping tabs: Expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

Finish

All painted finishes are powder coated baked enamel.

Ordering Information

Catalog No. Finishes Mountings Lamps

26238W WH Matte White ProSpec™Track System PAR38 250W Max.

26238W BK Matte Black

Options & Accessories

Accessories: 4 3/4" dia. series. Filters, lenses, screens and louvers.
150W max when using accessories. Holds one accessory behind the
spread lens. Order accessories separately

Electrical

Electrical components: Polycarbonate moldings.
Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"
shaped track conductors.

Labels

UL; I.B.E.W. U.S. & Foreign Patents Pending

5-3/4"

11-3/4"

14-1/8"

1

2

3

4

5

6

7

8

9

ProSpec Track System

10-1/8"

7"

11

9"

Pivot

10

ProSpec

™

Track Lighting 26238W

Page 2 of 2 Wall Wash Ring PAR38

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

DISTANCE TO SIDE OF UNIT

6" 12" 18" 24" 30" 36" 42" 48"

0 11.0 6.5 5.5 3.0 2.0 1.5 1.0 0.5 0.5 19.5 16.5 19.5 15.0 10.5 15.0

1 70.0 65.0 34.0 12.0 5.5 8.0 1.5 1.0 1.0 97.0 109.5 97.0 80.0 48.5 80.0

2 115.0 110.0 66.0 26.0 9.0 3.5 2.0 1.0 1.0 171.0 190.5 171.0 129.0 95.0 129.0

2.5 140.0 130.0 80.0 36.0 14.0 4.5 2.5 1.5 1.0 217.0 231.0 217.0 160.0 120.0 160.0

3 120.0 115.0 77.0 39.0 16.5 6.0 2.5 1.5 1.5 203.0 217.0 203.0 144.0 120.0 144.0

4 48.0 48.0 40.0 24.0 14.0 7.5 3.0 2.0 1.5 102.0 113.0 102.5 71.0 69.0 71.0

5 17.0 17.0 16.0 11.5 8.5 5.5 3.0 2.0 1.5 46.5 51.0 46.5 33.0 32.5 33.0

6 8.0 7.0 8.0 6.0 5.0 3.5 2.8 2.0 1.5 25.5 27.0 25.5 18.5 18.5 1 8.5

7 4.0 4.0 5.0 3.5 3.0 3.0 2.0 2.0 1.0 15.0 18.5 15.0 12.0 12.5 12.0

8 2.5 3.0 3.0 2.5 2.5 2.5 2.0 1.5 0.5 11.5 14.0 11.5 9.0 0.0 9.0

10'-0" Ceiling Height Track 40" from Wall*

DISTANCE TO SIDE OF UNIT

12' 24' 36' 48" 60' 72" 84'

0 6.0 5.0 2.5 2.5 2.0 1.0 0.5 0.0 12.0 9.5 12.0 7.5 6.0 7.5

1 13.0 11.0 9.0 3.5 2-0 1.0 0.5 0.5 21.5 24.0 21.5 17.0 13.5 17.0

2 23.0 18.0 12.0 4.5 3.0 1.0 0.5 0.5 82.5 83.0 82.5 26.0 18.0 26.0

3 25.0 28.0 14.5 5.0 8.0 1.0 0.5 0.5 86.5 40.5 36.5 28.0 21.0 28.0

4 33.0 27.0 15.0 6.0 2.5 1.0 0.5 0.5 48.0 45.0 48.0 36.0 22.5 36.0

4.5 34.0 28.0 16.0 6.0 2.5 1.0 1.0 0.5 48.0 47.0 48.0 37.0 23.5 37.0

5 28.0 25.0 15.0 6.0 2.5 1.5 1.0 0.5 41.0 43.0 41.0 31.5 22.0 81.5

6 20.0 18.0 13.0 5.5 2.0 1.5 1.0 0.5 82.0 34.0 32.0 28.5 20.0 23.5

7 15.0 18.0 9.0 4.0 1.5 1.5 1.0 1.0 25.0 25.0 25.0 18.0 14.5 18.0

8 10.0 8.5 6.0 3.0 1.5 1.5 1.0 1.0 18.0 18.0 18.0 18.0 10.5 13.0

9 8.0 7.0 4.5 2.0 1.5 1.5 1.0 1.0 14.0 14.0 14.0 11.0 8.5 11.0

10 5.0 4.0 8.5 1.5 1.5 1.5 1.0 1.0 9.0 10.5 9.0 7.5 6.5 7.5

12'-0" Ceiling Height Track 66" from Wall*

DISTANCE TO SIDE OF UNIT

12' 24' 36' 48' 60' 72' 84' 96'

0 3.5 3.0 2.5 2.0 1.0 1.0 0.5 0.5 0.5 5.0 5.0 5.0 4.0 3.0 42

1 5.5 5.0 4.0 3.0 1.5 1.0 0.5 0.5 0.5 7.5 7.5 7.5 6.0 3.5 6.2

2 8.0 7.5 5.5 3.5 2.0 1.5 1.0 0.5 0.5 10.5 10.0 10.5 8.5 5.0 8.8

3 9.0 8.5 7.0 4.5 2.5 1.5 1.0 4.0 0.5 12.0 12.0 12.0 9.5 5.5 9.8

4 10.0 10.0 8.0 5.5 8.0 2.0 1.0 1.0 0.5 18.5 14.5 18.5 10.5 6.5 10.6

5 12.5 12.0 10.0 6.5 3.5 2.0 1.0 1.0 0.5 17.0 17.5 17.0 13.5 8.0 13.4

6 15.0 14.0 11.0 7.5 4.5 2.5 1.5 1.0 1.0 20.0 20.0 20.0 16.5 9.5 16.4

6.5 15.0 14.0 11.0 8.0 4.5 3.0 1.5 1.0 0.5 21.5 20.5 21.5 16.5 10.0 16.4

7 14.0 12.5 10.5 7.5 4.5 8.0 1.5 1.0 0.5 20.0 19.5 20.0 15.0 9.5 15.6

8 12.5 11.5 10.0 7.0 4.0 3.0 1.5 1.5 0.5 18.5 18.0 18.5 13.5 9.0 15.6

9 10.0 9.0 8.0 6.0 4.0 8.0 1.5 1.5 0.5 16.0 15.0 16.0 11.0 8.5 11.2

10 8.5 8.0 7.0 5.0 4.0 3.0 1.5 1.5 0.5 14.0 18.5 14.0 19.5 8.5 19.6

11 7.0 6.5 6.0 4.5 8.0 8.0 1.5 1.5 0.5 12.5 11.0 12.5 7.5 7.0 7.6

12 5.5 5.0 4.2 3.0 3.0 2.0 1.5 1.5 0.5 9.5 8.5 9.5 6.0 6 .5 6.2

Lighting Data: 150W PAR38 FL

FOOTCANDLES ON WALL: Single Units Multiple Units

†

EXAMPLE: With track located 40" from wal and
multiple units spaced 38" on center and aimed

60∫ from horizontal, the illumination on wall

5' 6" from floor will be 48 f.c. beneath units
and 47 f.c. between units.

38"40"

48 f.c.

47 f.c.

60°

5'-6"

8'-0" Ceiling Height Track 22" from Wall*

Track Dist.
from Wall

Track Dist.
from Wall

Track Dist.
from Wall

*At recommended track distance from wall for
corresponding ceiling height, wall washer will
provide maximum Illumination at eye level
(5' 6' above floor) when aimed 60 from horizontal
(I.E.S. recommended practice).

† Footcandles shown In table for multiple units are
based on a minimum of 5 units when on 18", 27", or
38" centers and 8 units when on 57" 62", or 98"
centers.

Footcandle values are based on average room
conditions.
