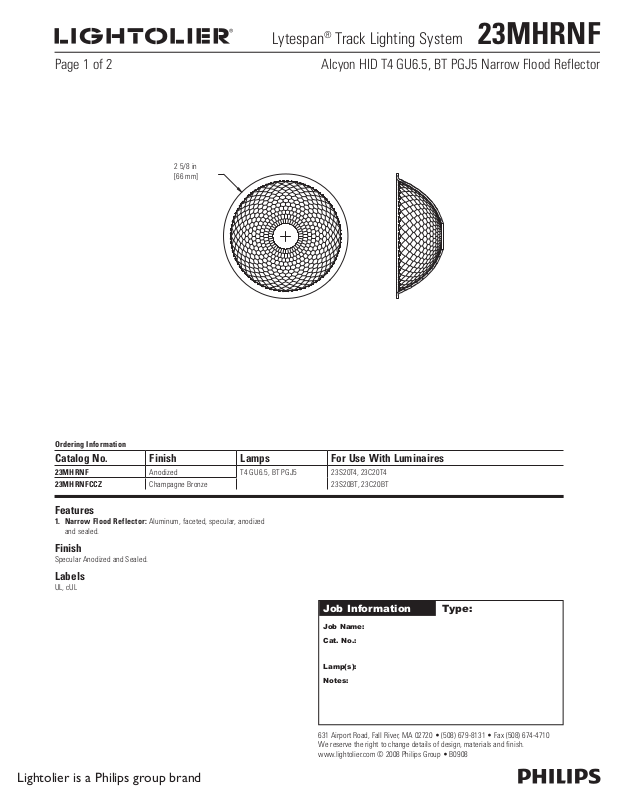

Lightolier 23MHRNF User Manual
Lytespan
2 5/8 in
[66 mm]
®
Track Lighting System 23MHRNF
Page 1 of 2 Alcyon HID T4 GU6.5, BT PGJ5 Narrow Flood Reflector
Ordering Information
Catalog No. Finish Lamps For Use With Luminaires
23MHRNF
23MHRNFCCZ
Anodized
Champagne Bronze
T4 GU6.5, BT PGJ5 23S20T4, 23C20T4
23S20BT, 23C20BT
Features
1. Narrow Flood Reflector: Aluminum, faceted, specular, anodized
and sealed.
Finish
Specular Anodized and Sealed.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B0908
Lightolier is a Philips group brand
Lytespan
®
Track Lighting System 23MHRNF
Page 2 of 2 Alcyon HID T4 GU6.5, BT PGJ5 Narrow Flood Reflector
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp
manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
20W T4, 23MHRNF, 2386 9000
23C20T4,
23S20T4 25°
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
22W BT-5, 23MHRNF, 2538 12000
23C20BT,
23S20BT 25°
CBCP
CBCP
Rated
Rated
D FC L W D C FC L W D C FC L W D C FC L W
6' 66 2.7' 2.7'
8' 37 3.5' 3.5'
10' 24 4.4' 4.4'
12' 17 5.3' 5.3'
6' 3.5' 43 3.6' 3.1'
8' 4.6' 24 4.8' 4.1'
10' 5.8' 15 6.0' 5.1'
12' 6.9' 11 7.2' 6.1'
2' 3.5' 75 4.2' 1.8'
3' 5.2' 33 6.2' 2.7'
4' 6.9' 19 8.3' 3.5'
5' 8.7' 12 10.4' 4.4'
D FC L W D C FC L W D C FC L W D C FC L W
6' 71 2.7' 2.7'
8' 40 3.5' 3.5'
10' 25 4.4' 4.4'
12' 51 5.3' 5.3'
6' 3.5' 46 3.6' 3.1'
8' 4.6' 26 4.8' 4.1'
10' 5.8' 16 6.0' 5.1'
12' 6.9' 11 7.2' 6.1'
2' 3.5' 79 4.2' 1.8'
3' 5.2' 35 6.2' 2.7 '
4' 6.9' 20 8.3' 3.5'
5' 8.7' 13 10.4' 4.4'
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reector "warms" the beam to 2700K.
2' 2.0' 211 1.9' 1.3'
3' 3.0' 94 2.8' 1.9 '
4' 4.0' 53 3.7' 2. 5'
5' 5.0' 34 4.7' 3.1'
2' 2.0' 224 1.9' 1.3'
3' 3.0' 100 2.8' 1.9'
4' 4.0' 56 3.7' 2.5'
5' 5.0' 36 4.7' 3.1'
