Lytespan
1 11/16"
(42mm)
3 3/8"
(85mm)
4 5/16"
(109mm)
3/16"
(4mm)
4 7/8"
(124mm)
7 7/16"
(189mm)
5 3/8"
(136mm)
5"
(127mm)
1 1/16"
(27mm)
®

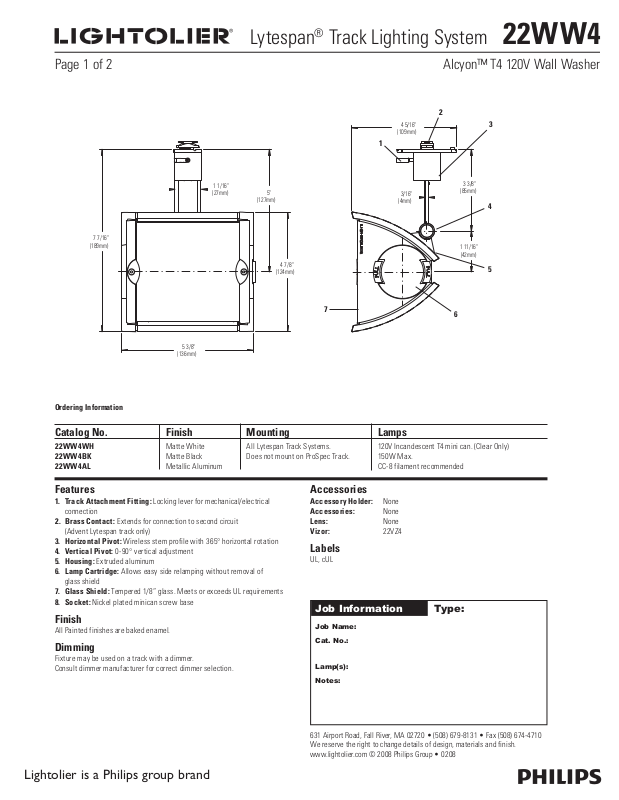

Track Lighting System 22WW4
Page 1 of 2 Alcyon™ T4 120V Wall Washer
2
3
1
4
5
7
Ordering Information
6
Catalog No. Finish Mounting Lamps
22WW4WH Matte White All Lytespan Track Systems. 120V Incandescent T4 mini can. (Clear Only)
22WW4BK Matte Black Does not mount on ProSpec Track. 150W Max.
22WW4AL Metallic Aluminum CC-8 filament recommended
Features
1. Track At tachment Fitting: Locking lever for mechanical/electrical
connection
2. Brass Contact: E xtends for connection to second circuit
(Advent Lytespan track only)
3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation
4. Vertical Pivot: 0-90° vertical adjustment
5. Housing: Extruded aluminum
6. Lamp Car tridge: Allows easy side relamping without removal of
glass shield
7. Glass Shield: Tempered 1/8” glass. Meets or exceeds UL requirements
8. Socket: Nickel plated minican screw base
Finish
All Painted finishes are baked enamel.
Dimming
Fixture may be used on a track with a dimmer.
Consult dimmer manufacturer for correct dimmer selection.
Accessories
Accessory Holder: None
Accessories: None
Lens: None
Vizor: 22VZ4
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • 0208
Lytespan
5'3'
3'
30 f.c.
30 f.c.
28 f.c.
®
Track Lighting System 22WW4
Page 2 of 2 Alcyon™ T4 120V Wall Washer
Lighting Data
Footcandles on wall:
La mp Information:
120V, 150W T4 Clear
Lumens: 2800
Rated Avg. life: 2,000 hrs.
EXAMPLE: With track located 3' from wall and multiple units
spaced 5' on center and aimed 50° from horizontal, the illumination on wall 3' from ceiling will be 30 f.c. beneath units and 28 f.c.
between units.
Footcandles on Wall
Track 3 Feet From Wall Single Unit Multiple Units
0’ 1’ 2’ 3’ 4’ 5’
1’ 55 46 25 9 2 1
2’ 43 37 24 11 4 1
3’ 26 23 17 10 4 2
4’ 16 14 11 7 4 2
5’ 10 9 7 5 3 2
6’ 7 6 5 4 3 2
Distance From Ceiling
7’ 5 4 4 3 2 1
8’ 3 3 3 2 2 1
9’ 2 2 2 2 1 1
3’
Beam Center
50˚
59 53 59
52 51 52
36 36 36
25 24 25
18 17 18
13 13 13
10 9 10
7 7 7
6 6 6
4’
56 35 56
46 38 46
30 28 30
20 19 20
15 14 15
11 10 11
8 8 8
6 6 6
5 5 5
5’
Track 4 Feet From Wall Single Unit Multiple Units
0’ 1’ 2’ 3’ 4’ 5’
1’ 28 25 19 10 4 1
2’ 29 26 20 12 6 3
3’ 21 19 16 11 6 3
4’ 15 13 11 9 6 3
5’ 10 9 8 6 5 3
6’ 7 7 6 5 4 3
Distance From Ceiling
7’ 5 5 4 3 3 2
8’ 4 4 3 3 2 1
9’ 3 3 2 2 2 1
4’
Beam Center
50˚
4’
37 40 37
43 43 43
35 36 35
27 27 27
20 20 21
15 15 15
12 12 12
9 9 10
7 7 8
31 31 31
35 34 35
28 29 28
21 22 21
16 16 16
13 12 13
10 9 10
8 8 8
6 6 6
5’ 6’
6’
55 19 55
44 24 44
28 20 28
18 16 18
12 11 12
9 8 9
7 6 7
5 5 5
4 4 4
29 22 29
31 26 31
24 23 24
18 18 18
14 13 14
11 10 11
8 8 8
7 6 7
5 5 5
Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • 0208
